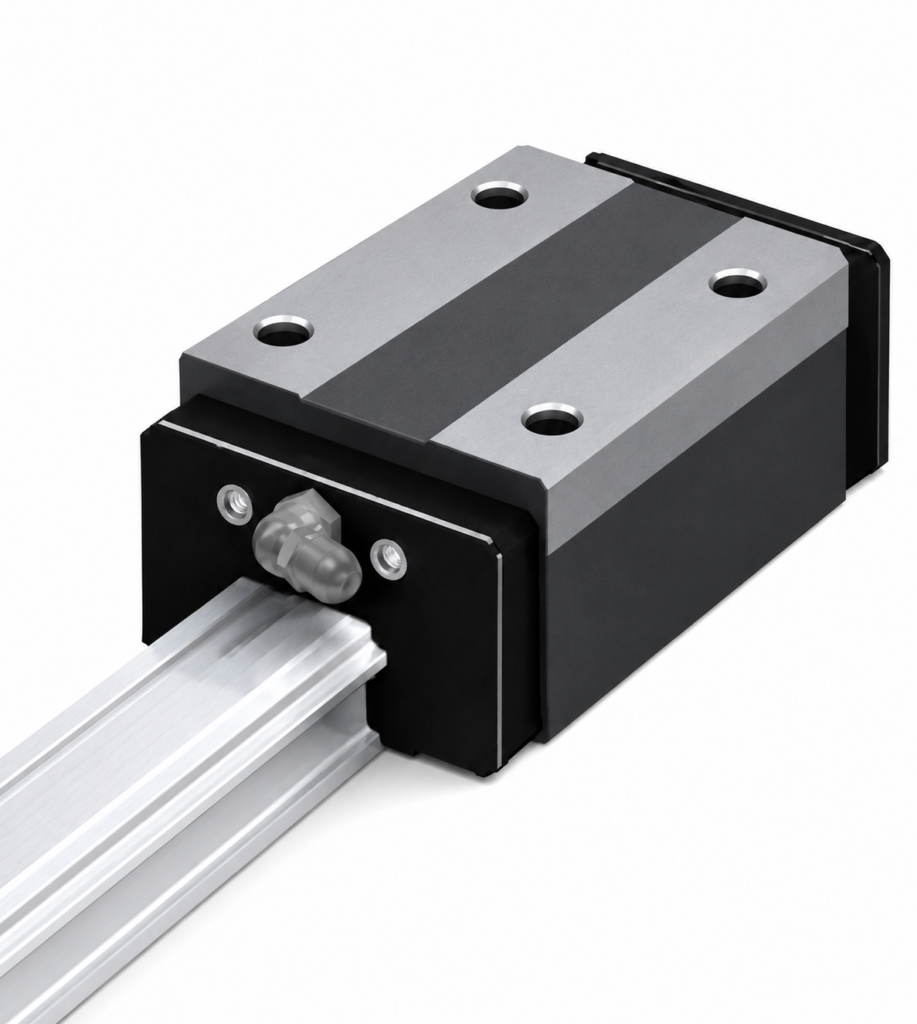

[THK] — HSR-XSRM/XRM/XLRM Miniature LM Guide Block (Full Ball, Narrow Width, Stainless)
Family ID: THK-HSR-XRM
Miniature Full ball type LM Guide. HSR miniature series — stainless steel rail, block and balls. Narrow block width (R type). Short/Standard/Long block lengths available. 4-direction equal load, 4-row high rigidity. THK Circular Arc groove (DF structure).
9 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| HSR8XSRM | HSR8XSRM LM Block H11×W16×L18mm | THK | Type: Miniature LM Guide Block | Series: HSR | Model: HSR8XSRM | Height M: 11 mm | Width W: 16 mm | Length L: 18 mm | Max Rail Length: 3000 mm | Dynamic Load C: 0.85 kN | Static Load C0: 1.24 kN | Material: Stainless Steel | Structure: Full Ball DF | Mount: Narrow Width (R type) | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK | ||
| HSR8XRM | HSR8XRM LM Block H11×W16×L24mm | THK | Type: Miniature LM Guide Block | Series: HSR | Model: HSR8XRM | Height M: 11 mm | Width W: 16 mm | Length L: 24 mm | Max Rail Length: 3000 mm | Dynamic Load C: 1.2 kN | Static Load C0: 2.02 kN | Material: Stainless Steel | Structure: Full Ball DF | Mount: Narrow Width (R type) | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK | ||
| HSR8XLRM | HSR8XLRM LM Block H11×W16×L30.5mm | THK | Type: Miniature LM Guide Block | Series: HSR | Model: HSR8XLRM | Height M: 11 mm | Width W: 16 mm | Length L: 30.5 mm | Max Rail Length: 3000 mm | Dynamic Load C: 1.5 kN | Static Load C0: 2.8 kN | Material: Stainless Steel | Structure: Full Ball DF | Mount: Narrow Width (R type) | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK | ||
| HSR10XSRM | HSR10XSRM LM Block H13×W20×L24mm | THK | Type: Miniature LM Guide Block | Series: HSR | Model: HSR10XSRM | Height M: 13 mm | Width W: 20 mm | Length L: 24 mm | Max Rail Length: 3000 mm | Dynamic Load C: 1.54 kN | Static Load C0: 2.18 kN | Material: Stainless Steel | Structure: Full Ball DF | Mount: Narrow Width (R type) | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK | ||
| HSR10XRM | HSR10XRM LM Block H13×W20×L31mm | THK | Type: Miniature LM Guide Block | Series: HSR | Model: HSR10XRM | Height M: 13 mm | Width W: 20 mm | Length L: 31 mm | Max Rail Length: 3000 mm | Dynamic Load C: 2.16 kN | Static Load C0: 3.54 kN | Material: Stainless Steel | Structure: Full Ball DF | Mount: Narrow Width (R type) | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK | ||
| HSR10XLRM | HSR10XLRM LM Block H13×W20×L40mm | THK | Type: Miniature LM Guide Block | Series: HSR | Model: HSR10XLRM | Height M: 13 mm | Width W: 20 mm | Length L: 40 mm | Max Rail Length: 3000 mm | Dynamic Load C: 2.72 kN | Static Load C0: 4.9 kN | Material: Stainless Steel | Structure: Full Ball DF | Mount: Narrow Width (R type) | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK | ||
| HSR12XSRM | HSR12XSRM LM Block H20×W27×L34mm | THK | Type: Miniature LM Guide Block | Series: HSR | Model: HSR12XSRM | Height M: 20 mm | Width W: 27 mm | Length L: 34 mm | Max Rail Length: 3000 mm | Dynamic Load C: 3.95 kN | Static Load C0: 5.39 kN | Material: Stainless Steel | Structure: Full Ball DF | Mount: Narrow Width (R type) | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK | ||
| HSR12XRM | HSR12XRM LM Block H20×W27×L45mm | THK | Type: Miniature LM Guide Block | Series: HSR | Model: HSR12XRM | Height M: 20 mm | Width W: 27 mm | Length L: 45 mm | Max Rail Length: 3000 mm | Dynamic Load C: 5.54 kN | Static Load C0: 8.75 kN | Material: Stainless Steel | Structure: Full Ball DF | Mount: Narrow Width (R type) | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK | ||
| HSR12XLRM | HSR12XLRM LM Block H20×W27×L58mm | THK | Type: Miniature LM Guide Block | Series: HSR | Model: HSR12XLRM | Height M: 20 mm | Width W: 27 mm | Length L: 58 mm | Max Rail Length: 3000 mm | Dynamic Load C: 6.96 kN | Static Load C0: 12.1 kN | Material: Stainless Steel | Structure: Full Ball DF | Mount: Narrow Width (R type) | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK |
