[THK] — HRW-CA/CAM LM Guide Block (Full Ball, Wide Rail, Flange Type)
Family ID: THK-HRW-CA

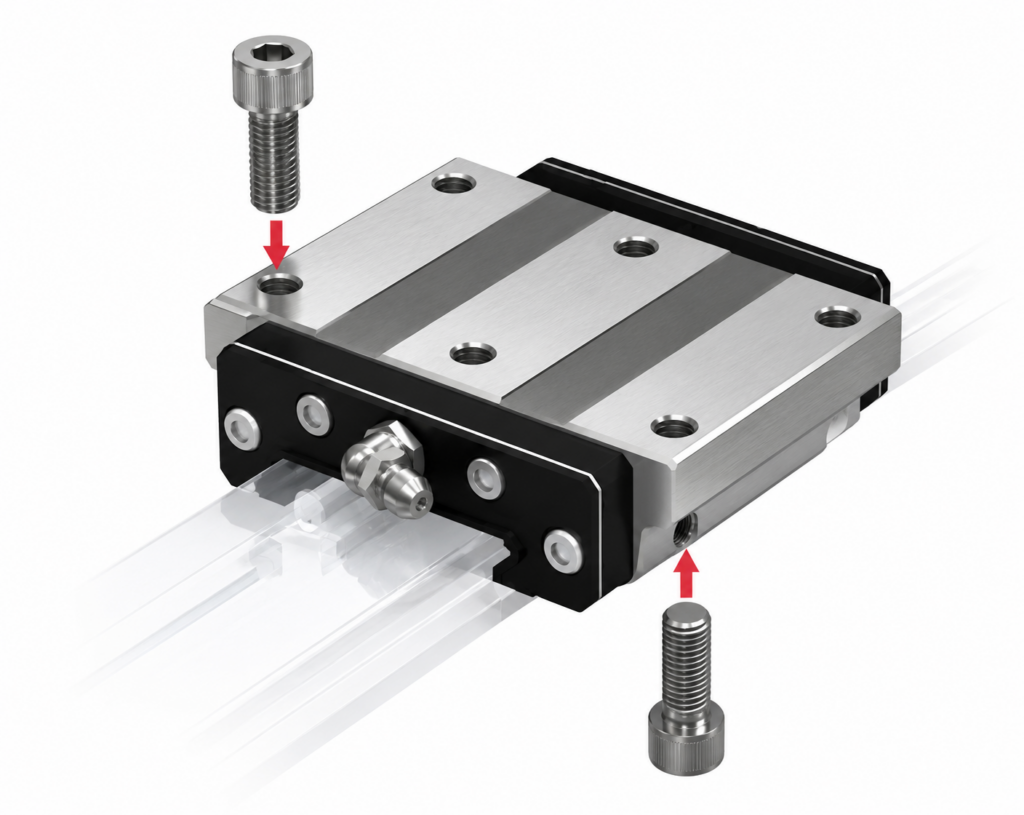

Wide rail full ball type LM Guide. Flange type with tapped holes — mountable from top or bottom. Wide, low-profile rail for optimal rolling moment rigidity. 4-direction equal load type. Balls retained by support plate when block is removed.
10 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| HRW-17CA | HRW 17CA LM Block H17×W60×L50.8mm | THK | Type: LM Guide Block | Series: HRW | Block Type: 17CA | Height M: 17 mm | Width W: 60 mm | Length L: 50.8 mm | Max Rail Length: 1900 mm | Dynamic Load C: 5.53 kN | Static Load C0: 9.1 kN | Structure: Full Ball | Rail Type: Wide | Load Type: 4-Direction Equal | Brand: THK | ||
| HRW-17CAM | HRW 17CAM LM Block H17×W60×L50.8mm | THK | Type: LM Guide Block | Series: HRW | Block Type: 17CAM | Height M: 17 mm | Width W: 60 mm | Length L: 50.8 mm | Max Rail Length: 800 mm | Dynamic Load C: 5.53 kN | Static Load C0: 9.1 kN | Structure: Full Ball | Rail Type: Wide | Load Type: 4-Direction Equal | Brand: THK | ||
| HRW-21CA | HRW 21CA LM Block H21×W68×L58.8mm | THK | Type: LM Guide Block | Series: HRW | Block Type: 21CA | Height M: 21 mm | Width W: 68 mm | Length L: 58.8 mm | Max Rail Length: 3000 mm | Dynamic Load C: 8.02 kN | Static Load C0: 12.9 kN | Structure: Full Ball | Rail Type: Wide | Load Type: 4-Direction Equal | Brand: THK | ||
| HRW-21CAM | HRW 21CAM LM Block H21×W68×L58.8mm | THK | Type: LM Guide Block | Series: HRW | Block Type: 21CAM | Height M: 21 mm | Width W: 68 mm | Length L: 58.8 mm | Max Rail Length: 1000 mm | Dynamic Load C: 8.02 kN | Static Load C0: 12.9 kN | Structure: Full Ball | Rail Type: Wide | Load Type: 4-Direction Equal | Brand: THK | ||
| HRW-27CA | HRW 27CA LM Block H27×W80×L72.8mm | THK | Type: LM Guide Block | Series: HRW | Block Type: 27CA | Height M: 27 mm | Width W: 80 mm | Length L: 72.8 mm | Max Rail Length: 3000 mm | Dynamic Load C: 14.2 kN | Static Load C0: 21.6 kN | Structure: Full Ball | Rail Type: Wide | Load Type: 4-Direction Equal | Brand: THK | ||
| HRW-27CAM | HRW 27CAM LM Block H27×W80×L72.8mm | THK | Type: LM Guide Block | Series: HRW | Block Type: 27CAM | Height M: 27 mm | Width W: 80 mm | Length L: 72.8 mm | Max Rail Length: 1200 mm | Dynamic Load C: 14.2 kN | Static Load C0: 21.6 kN | Structure: Full Ball | Rail Type: Wide | Load Type: 4-Direction Equal | Brand: THK | ||
| HRW-35CA | HRW 35CA LM Block H35×W120×L106.6mm | THK | Type: LM Guide Block | Series: HRW | Block Type: 35CA | Height M: 35 mm | Width W: 120 mm | Length L: 106.6 mm | Max Rail Length: 3000 mm | Dynamic Load C: 33.8 kN | Static Load C0: 48.6 kN | Structure: Full Ball | Rail Type: Wide | Load Type: 4-Direction Equal | Brand: THK | ||
| HRW-35CAM | HRW 35CAM LM Block H35×W120×L106.6mm | THK | Type: LM Guide Block | Series: HRW | Block Type: 35CAM | Height M: 35 mm | Width W: 120 mm | Length L: 106.6 mm | Max Rail Length: 3000 mm | Dynamic Load C: 33.8 kN | Static Load C0: 48.6 kN | Structure: Full Ball | Rail Type: Wide | Load Type: 4-Direction Equal | Brand: THK | ||
| HRW-50CA | HRW 50CA LM Block H50×W162×L140.5mm | THK | Type: LM Guide Block | Series: HRW | Block Type: 50CA | Height M: 50 mm | Width W: 162 mm | Length L: 140.5 mm | Max Rail Length: 3000 mm | Dynamic Load C: 62.4 kN | Static Load C0: 86.3 kN | Structure: Full Ball | Rail Type: Wide | Load Type: 4-Direction Equal | Brand: THK | ||
| HRW-60CA | HRW 60CA LM Block H60×W200×L158.9mm | THK | Type: LM Guide Block | Series: HRW | Block Type: 60CA | Height M: 60 mm | Width W: 200 mm | Length L: 158.9 mm | Max Rail Length: 3000 mm | Dynamic Load C: 80.3 kN | Static Load C0: 109 kN | Structure: Full Ball | Rail Type: Wide | Load Type: 4-Direction Equal | Brand: THK |
