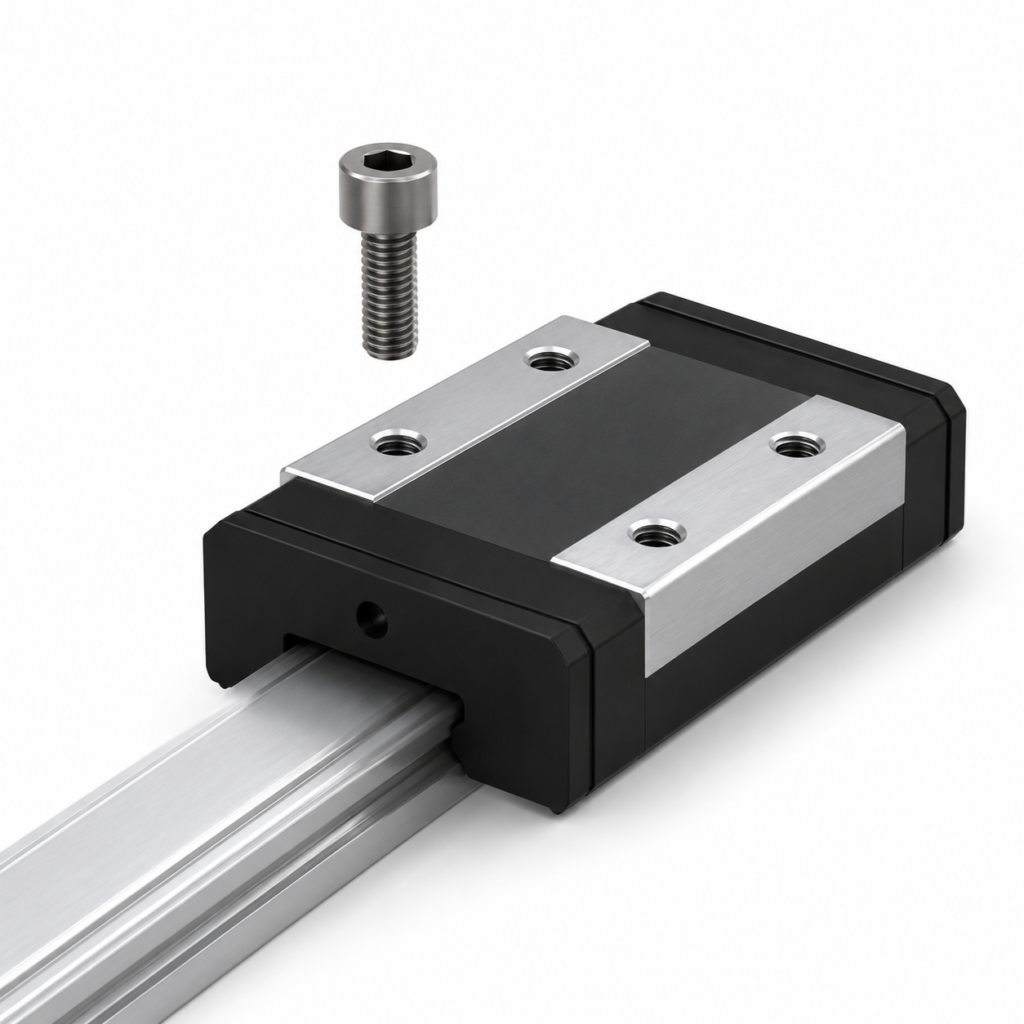

[THK] — SRS-S/M/N (#5~12) Miniature LM Guide Block (Low Dust, Stainless, Ball Retainer)

Family ID: THK-SRS-S512

Miniature low-dust Ball Retainer Type LM Guide. Minimum block width (W) with tapped holes. Stainless steel rail, block and balls for corrosion resistance. Very low rail profile with 2-row ball compact structure. Partial resin insert molding for lightweight design.

22 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code	Description	Brand	Spec
SRS5M	SRS5M LM Block H6×W12×L16.9mm	THK	Type: LM Guide Block \| Series: SRS \| Size: #5 \| Block Type: M \| Height M: 6 mm \| Width W: 12 mm \| Length L: 16.9 mm \| Max Rail Length: 220 mm \| Dynamic Load C: 0.439 kN \| Static Load C0: 0.468 kN \| Material: Stainless Steel \| Structure: Ball Retainer \| Application: Miniature Low-dust \| Brand: THK
SRS5GM	SRS5GM LM Block H6×W12×L16.9mm	THK	Type: LM Guide Block \| Series: SRS \| Size: #5 \| Block Type: GM \| Height M: 6 mm \| Width W: 12 mm \| Length L: 16.9 mm \| Max Rail Length: 220 mm \| Dynamic Load C: 0.366 kN \| Static Load C0: 0.527 kN \| Material: Stainless Steel \| Structure: Ball Retainer \| Application: Miniature Low-dust \| Brand: THK
SRS5N	SRS5N LM Block H6×W12×L20.1mm	THK	Type: LM Guide Block \| Series: SRS \| Size: #5 \| Block Type: N \| Height M: 6 mm \| Width W: 12 mm \| Length L: 20.1 mm \| Max Rail Length: 220 mm \| Dynamic Load C: 0.515 kN \| Static Load C0: 0.586 kN \| Material: Stainless Steel \| Structure: Ball Retainer \| Application: Miniature Low-dust \| Brand: THK
SRS5GN	SRS5GN LM Block H6×W12×L20.1mm	THK	Type: LM Guide Block \| Series: SRS \| Size: #5 \| Block Type: GN \| Height M: 6 mm \| Width W: 12 mm \| Length L: 20.1 mm \| Max Rail Length: 220 mm \| Dynamic Load C: 0.448 kN \| Static Load C0: 0.703 kN \| Material: Stainless Steel \| Structure: Ball Retainer \| Application: Miniature Low-dust \| Brand: THK
SRS7S	SRS7S LM Block H8×W17×L19mm	THK	Type: LM Guide Block \| Series: SRS \| Size: #7 \| Block Type: \| Height M: 8 mm \| Width W: 17 mm \| Length L: 19 mm \| Max Rail Length: 480 mm \| Dynamic Load C: 0.946 kN \| Static Load C0: 0.964 kN \| Material: Stainless Steel \| Structure: Ball Retainer \| Application: Miniature Low-dust \| Brand: THK
SRS7GS	SRS7GS LM Block H8×W17×L19mm	THK	Type: LM Guide Block \| Series: SRS \| Size: #7 \| Block Type: GS \| Height M: 8 mm \| Width W: 17 mm \| Length L: 19 mm \| Max Rail Length: 480 mm \| Dynamic Load C: 1.09 kN \| Static Load C0: 1.16 kN \| Material: Stainless Steel \| Structure: Ball Retainer \| Application: Miniature Low-dust \| Brand: THK
SRS7M	SRS7M LM Block H8×W17×L23.4mm	THK	Type: LM Guide Block \| Series: SRS \| Size: #7 \| Block Type: M \| Height M: 8 mm \| Width W: 17 mm \| Length L: 23.4 mm \| Max Rail Length: 480 mm \| Dynamic Load C: 1.51 kN \| Static Load C0: 1.29 kN \| Material: Stainless Steel \| Structure: Ball Retainer \| Application: Miniature Low-dust \| Brand: THK
SRS7GM	SRS7GM LM Block H8×W17×L23.4mm	THK	Type: LM Guide Block \| Series: SRS \| Size: #7 \| Block Type: GM \| Height M: 8 mm \| Width W: 17 mm \| Length L: 23.4 mm \| Max Rail Length: 480 mm \| Dynamic Load C: 1.16 kN \| Static Load C0: 1.54 kN \| Material: Stainless Steel \| Structure: Ball Retainer \| Application: Miniature Low-dust \| Brand: THK
SRS7N	SRS7N LM Block H8×W17×L31mm	THK	Type: LM Guide Block \| Series: SRS \| Size: #7 \| Block Type: N \| Height M: 8 mm \| Width W: 17 mm \| Length L: 31 mm \| Max Rail Length: 480 mm \| Dynamic Load C: 2.01 kN \| Static Load C0: 2.31 kN \| Material: Stainless Steel \| Structure: Ball Retainer \| Application: Miniature Low-dust \| Brand: THK
SRS7GN	SRS7GN LM Block H8×W17×L31mm	THK	Type: LM Guide Block \| Series: SRS \| Size: #7 \| Block Type: GN \| Height M: 8 mm \| Width W: 17 mm \| Length L: 31 mm \| Max Rail Length: 480 mm \| Dynamic Load C: 1.63 kN \| Static Load C0: 2.51 kN \| Material: Stainless Steel \| Structure: Ball Retainer \| Application: Miniature Low-dust \| Brand: THK
SRS9XS	SRS9XS LM Block H10×W20×L21.5mm	THK	Type: LM Guide Block \| Series: SRS \| Size: #9 \| Block Type: \| Height M: 10 mm \| Width W: 20 mm \| Length L: 21.5 mm \| Max Rail Length: 1240 mm \| Dynamic Load C: 1.78 kN \| Static Load C0: 1.53 kN \| Material: Stainless Steel \| Structure: Ball Retainer \| Application: Miniature Low-dust \| Brand: THK
SRS9XGS	SRS9XGS LM Block H10×W20×L21.5mm	THK	Type: LM Guide Block \| Series: SRS \| Size: #9 \| Block Type: GS \| Height M: 10 mm \| Width W: 20 mm \| Length L: 21.5 mm \| Max Rail Length: 1240 mm \| Dynamic Load C: 1.37 kN \| Static Load C0: 1.53 kN \| Material: Stainless Steel \| Structure: Ball Retainer \| Application: Miniature Low-dust \| Brand: THK
SRS9XM	SRS9XM LM Block H10×W20×L30.8mm	THK	Type: LM Guide Block \| Series: SRS \| Size: #9 \| Block Type: M \| Height M: 10 mm \| Width W: 20 mm \| Length L: 30.8 mm \| Max Rail Length: 1240 mm \| Dynamic Load C: 2.69 kN \| Static Load C0: 2.75 kN \| Material: Stainless Steel \| Structure: Ball Retainer \| Application: Miniature Low-dust \| Brand: THK
SRS9XGM	SRS9XGM LM Block H10×W20×L30.8mm	THK	Type: LM Guide Block \| Series: SRS \| Size: #9 \| Block Type: GM \| Height M: 10 mm \| Width W: 20 mm \| Length L: 30.8 mm \| Max Rail Length: 1240 mm \| Dynamic Load C: 2.22 kN \| Static Load C0: 3.06 kN \| Material: Stainless Steel \| Structure: Ball Retainer \| Application: Miniature Low-dust \| Brand: THK
SRS9XN	SRS9XN LM Block H10×W20×L40.8mm	THK	Type: LM Guide Block \| Series: SRS \| Size: #9 \| Block Type: N \| Height M: 10 mm \| Width W: 20 mm \| Length L: 40.8 mm \| Max Rail Length: 1240 mm \| Dynamic Load C: 3.48 kN \| Static Load C0: 3.98 kN \| Material: Stainless Steel \| Structure: Ball Retainer \| Application: Miniature Low-dust \| Brand: THK
SRS9XGN	SRS9XGN LM Block H10×W20×L40.8mm	THK	Type: LM Guide Block \| Series: SRS \| Size: #9 \| Block Type: GN \| Height M: 10 mm \| Width W: 20 mm \| Length L: 40.8 mm \| Max Rail Length: 1240 mm \| Dynamic Load C: 2.94 kN \| Static Load C0: 4.59 kN \| Material: Stainless Steel \| Structure: Ball Retainer \| Application: Miniature Low-dust \| Brand: THK
SRS12S	SRS12S LM Block H13×W27×L25mm	THK	Type: LM Guide Block \| Series: SRS \| Size: #12 \| Block Type: \| Height M: 13 mm \| Width W: 27 mm \| Length L: 25 mm \| Max Rail Length: 2000 mm \| Dynamic Load C: 2.7 kN \| Static Load C0: 2.1 kN \| Material: Stainless Steel \| Structure: Ball Retainer \| Application: Miniature Low-dust \| Brand: THK
SRS12GS	SRS12GS LM Block H13×W27×L25mm	THK	Type: LM Guide Block \| Series: SRS \| Size: #12 \| Block Type: GS \| Height M: 13 mm \| Width W: 27 mm \| Length L: 25 mm \| Max Rail Length: 2000 mm \| Dynamic Load C: 2.07 kN \| Static Load C0: 2.1 kN \| Material: Stainless Steel \| Structure: Ball Retainer \| Application: Miniature Low-dust \| Brand: THK
SRS12M	SRS12M LM Block H13×W27×L34.4mm	THK	Type: LM Guide Block \| Series: SRS \| Size: #12 \| Block Type: M \| Height M: 13 mm \| Width W: 27 mm \| Length L: 34.4 mm \| Max Rail Length: 2000 mm \| Dynamic Load C: 4.0 kN \| Static Load C0: 3.53 kN \| Material: Stainless Steel \| Structure: Ball Retainer \| Application: Miniature Low-dust \| Brand: THK
SRS12GM	SRS12GM LM Block H13×W27×L34.4mm	THK	Type: LM Guide Block \| Series: SRS \| Size: #12 \| Block Type: GM \| Height M: 13 mm \| Width W: 27 mm \| Length L: 34.4 mm \| Max Rail Length: 2000 mm \| Dynamic Load C: 3.36 kN \| Static Load C0: 3.55 kN \| Material: Stainless Steel \| Structure: Ball Retainer \| Application: Miniature Low-dust \| Brand: THK
SRS12N	SRS12N LM Block H13×W27×L47.1mm	THK	Type: LM Guide Block \| Series: SRS \| Size: #12 \| Block Type: N \| Height M: 13 mm \| Width W: 27 mm \| Length L: 47.1 mm \| Max Rail Length: 2000 mm \| Dynamic Load C: 5.82 kN \| Static Load C0: 5.3 kN \| Material: Stainless Steel \| Structure: Ball Retainer \| Application: Miniature Low-dust \| Brand: THK
SRS12GN	SRS12GN LM Block H13×W27×L47.1mm	THK	Type: LM Guide Block \| Series: SRS \| Size: #12 \| Block Type: GN \| Height M: 13 mm \| Width W: 27 mm \| Length L: 47.1 mm \| Max Rail Length: 2000 mm \| Dynamic Load C: 4.72 kN \| Static Load C0: 6.83 kN \| Material: Stainless Steel \| Structure: Ball Retainer \| Application: Miniature Low-dust \| Brand: THK
