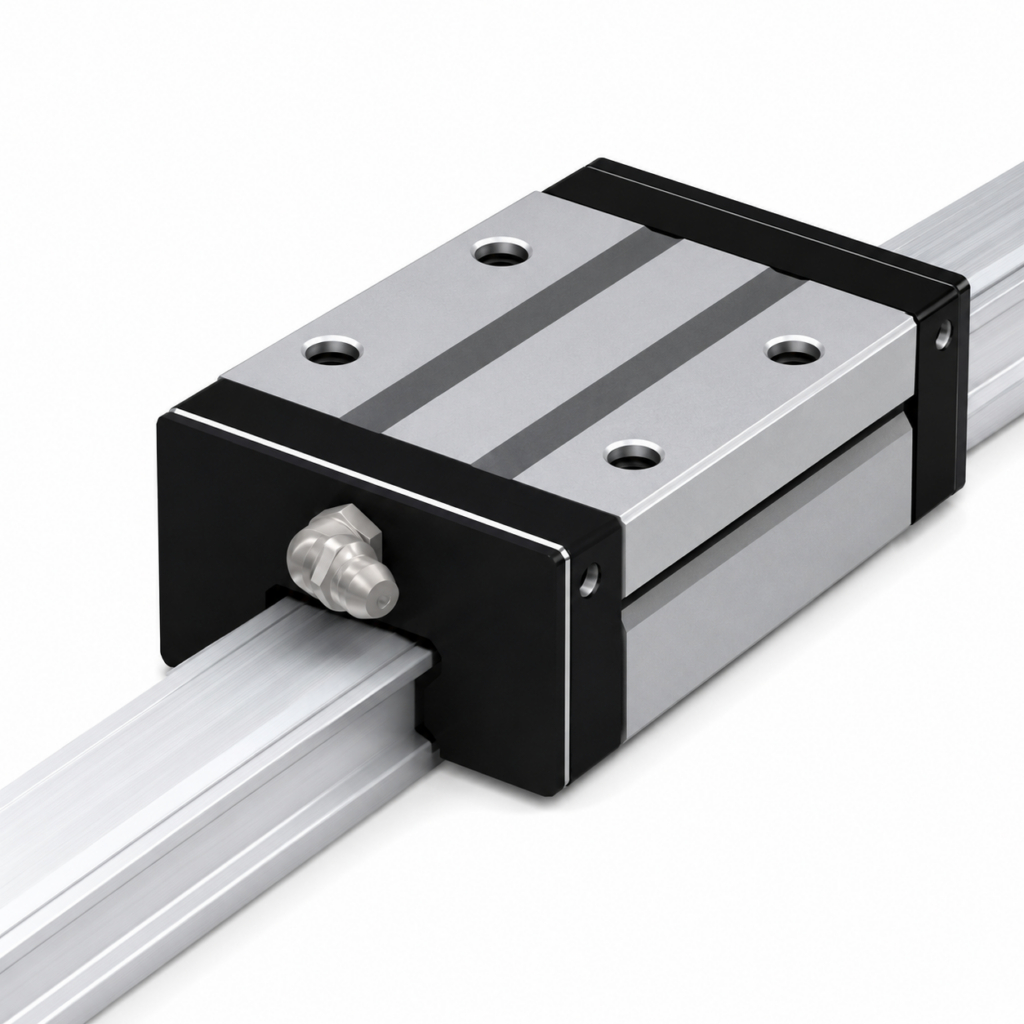

[THK] — SSR-XV/XVM LM Guide Block (Short Length, Space-saving, Ball Retainer)
Family ID: THK-SSR-XV
Ball Retainer Type LM Guide with strong radial load ball contact structure. XV type has same cross-section as XW but shorter block length (L) for space saving. Low profile compact design. THK Circular Arc groove (DF structure).
9 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| SSR-15XV | SSR 15XV LM Block H24×W34×L40.3mm | THK | Type: LM Guide Block | Series: SSR | Block Type: 15XV | Height M: 24 mm | Width W: 34 mm | Length L: 40.3 mm | Max Rail Length: 3000 mm | Dynamic Load C: 9.1 kN | Static Load C0: 9.7 kN | Structure: Ball Retainer DF | Note: Short block space-saving type | Brand: THK | ||
| SSR-15XVM | SSR 15XVM LM Block H24×W34×L40.3mm | THK | Type: LM Guide Block | Series: SSR | Block Type: 15XVM | Height M: 24 mm | Width W: 34 mm | Length L: 40.3 mm | Max Rail Length: 3000 mm | Dynamic Load C: 9.1 kN | Static Load C0: 9.7 kN | Structure: Ball Retainer DF | Note: Short block space-saving type | Brand: THK | ||
| SSR-20XV | SSR 20XV LM Block H28×W42×L47.7mm | THK | Type: LM Guide Block | Series: SSR | Block Type: 20XV | Height M: 28 mm | Width W: 42 mm | Length L: 47.7 mm | Max Rail Length: 3000 mm | Dynamic Load C: 13.4 kN | Static Load C0: 14.4 kN | Structure: Ball Retainer DF | Note: Short block space-saving type | Brand: THK | ||
| SSR-20XVM | SSR 20XVM LM Block H28×W42×L47.7mm | THK | Type: LM Guide Block | Series: SSR | Block Type: 20XVM | Height M: 28 mm | Width W: 42 mm | Length L: 47.7 mm | Max Rail Length: 3000 mm | Dynamic Load C: 13.4 kN | Static Load C0: 14.4 kN | Structure: Ball Retainer DF | Note: Short block space-saving type | Brand: THK | ||
| SSR-25XV | SSR 25XV LM Block H33×W48×L60mm | THK | Type: LM Guide Block | Series: SSR | Block Type: 25XV | Height M: 33 mm | Width W: 48 mm | Length L: 60 mm | Max Rail Length: 3000 mm | Dynamic Load C: 21.7 kN | Static Load C0: 22.5 kN | Structure: Ball Retainer DF | Note: Short block space-saving type | Brand: THK | ||
| SSR-25XVM | SSR 25XVM LM Block H33×W48×L60mm | THK | Type: LM Guide Block | Series: SSR | Block Type: 25XVM | Height M: 33 mm | Width W: 48 mm | Length L: 60 mm | Max Rail Length: 3000 mm | Dynamic Load C: 21.7 kN | Static Load C0: 22.5 kN | Structure: Ball Retainer DF | Note: Short block space-saving type | Brand: THK | ||
| SSR-30XV | SSR 30XV LM Block H42×W60×L66.7mm | THK | Type: LM Guide Block | Series: SSR | Block Type: 30XV | Height M: 42 mm | Width W: 60 mm | Length L: 66.7 mm | Max Rail Length: 3000 mm | Dynamic Load C: 34.8 kN | Static Load C0: 34.4 kN | Structure: Ball Retainer DF | Note: Short block space-saving type | Brand: THK | ||
| SSR-30XVM | SSR 30XVM LM Block H42×W60×L66.7mm | THK | Type: LM Guide Block | Series: SSR | Block Type: 30XVM | Height M: 42 mm | Width W: 60 mm | Length L: 66.7 mm | Max Rail Length: 2020 mm | Dynamic Load C: 34.8 kN | Static Load C0: 34.4 kN | Structure: Ball Retainer DF | Note: Short block space-saving type | Brand: THK | ||
| SSR-35XV | SSR 35XV LM Block H48×W70×L77.5mm | THK | Type: LM Guide Block | Series: SSR | Block Type: 35XV | Height M: 48 mm | Width W: 70 mm | Length L: 77.5 mm | Max Rail Length: 3000 mm | Dynamic Load C: 48.3 kN | Static Load C0: 46.7 kN | Structure: Ball Retainer DF | Note: Short block space-saving type | Brand: THK |
