LM Guides
THK

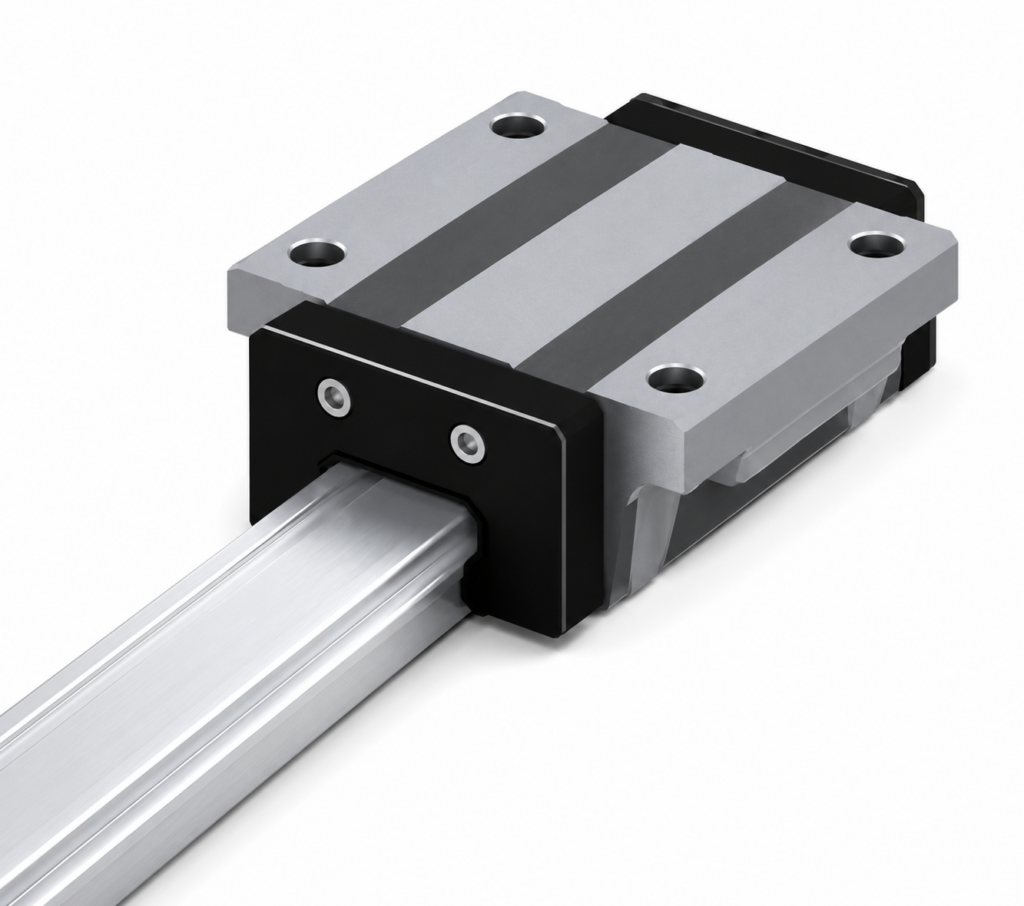

[THK] — HSR-85B/85LB LM Guide Block (Full Ball, Through-hole Flange, Bottom Mount)
Family ID: THK-HSR-85B
Full ball type LM Guide. World standard dimensions. Flange type with through-holes — bottom mounting. 4-row configuration for high rigidity in all 4 directions. THK Circular Arc groove (DF structure).
2 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| HSR-85B | HSR 85B LM Block H110×W215×L245.6mm | THK | Type: LM Guide Block | Series: HSR | Model: HSR 85B | Height M: 110 mm | Width W: 215 mm | Length L: 245.6 mm | Max Rail Length: 3000 mm | Dynamic Load C: 304 kN | Static Load C0: 355 kN | Structure: Full Ball DF | Mount: Bottom (through-hole) | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK | ||
| HSR-85LB | HSR 85LB LM Block H110×W215×L303mm | THK | Type: LM Guide Block | Series: HSR | Model: HSR 85LB | Height M: 110 mm | Width W: 215 mm | Length L: 303 mm | Max Rail Length: 3000 mm | Dynamic Load C: 367 kN | Static Load C0: 464 kN | Structure: Full Ball DF | Mount: Bottom (through-hole) | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK |
