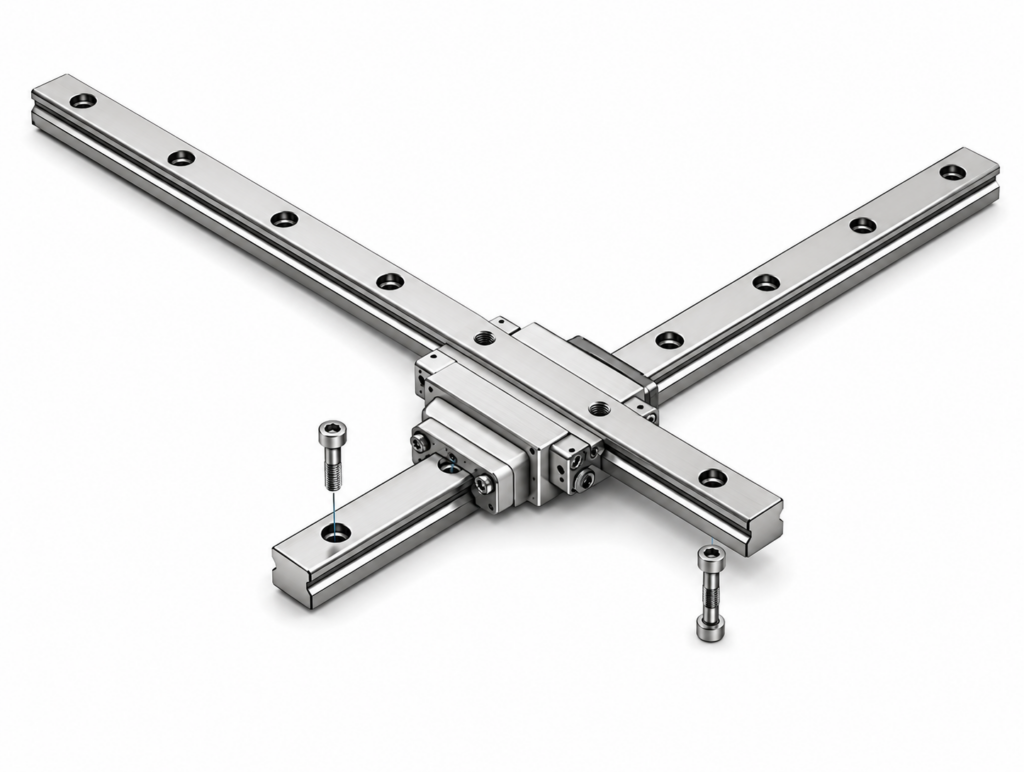

[THK] — MX Miniature Cross LM Guide Block (RSR5/RSR7W Cross Type)
Family ID: THK-MX
Miniature Cross-type LM Guide. RSR5 cross type (MX 5M) and RSR7W cross type (MX 7WM). 4-direction equal load with 45° ball contact angle. Rail available in top-bolt or bottom-tapped types.
2 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| MX-5M | MX 5M LM Block H10×W15.2×L23.3mm | THK | Type: Miniature Cross LM Guide Block | Series: MX | Model: MX 5M | Height M: 10 mm | Width W: 15.2 mm | Length L: 23.3 mm | Max Rail Length: 200 mm | Dynamic Load C: 0.59 kN | Static Load C0: 1.1 kN | Base: RSR5 cross type | Load Type: 4-Direction Equal | Brand: THK | ||
| MX-7WM | MX 7WM LM Block H14.5×W30.2×L40.8mm | THK | Type: Miniature Cross LM Guide Block | Series: MX | Model: MX 7WM | Height M: 14.5 mm | Width W: 30.2 mm | Length L: 40.8 mm | Max Rail Length: 400 mm | Dynamic Load C: 2.04 kN | Static Load C0: 3.21 kN | Base: RSR7W cross type | Load Type: 4-Direction Equal | Brand: THK |
