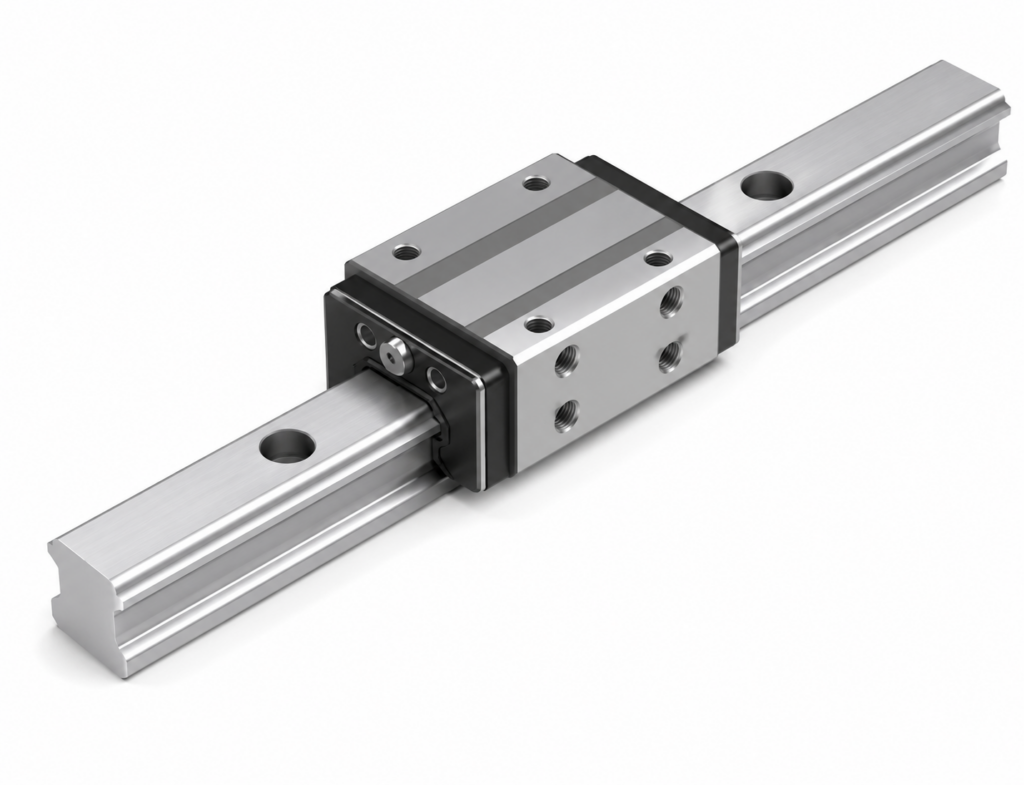

[THK] — HSR-YR/YRM LM Guide Block (Side Mount Tapped, Symmetric Installation)
Family ID: THK-HSR-YR
Full ball type LM Guide with side-mount tapped holes on block. Solves table machining difficulty, alignment and clearance adjustment issues when using LM guides symmetrically. Simple structure for significant labor reduction and improved precision.
13 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| HSR-15YR | HSR 15YR LM Block H28×W33.5×L56.6mm | THK | Type: LM Guide Block | Series: HSR | Model: HSR 15YR | Height M: 28 mm | Width W: 33.5 mm | Length L: 56.6 mm | Max Rail Length: 3000 mm | Dynamic Load C: 10.9 kN | Static Load C0: 15.7 kN | Structure: Full Ball DF | Mount: Side tapped holes | Application: Symmetric installation | Brand: THK | ||
| HSR-15YRM | HSR 15YRM LM Block H28×W33.5×L56.6mm | THK | Type: LM Guide Block | Series: HSR | Model: HSR 15YRM | Height M: 28 mm | Width W: 33.5 mm | Length L: 56.6 mm | Max Rail Length: 1240 mm | Dynamic Load C: 10.9 kN | Static Load C0: 15.7 kN | Structure: Full Ball DF | Mount: Side tapped holes | Application: Symmetric installation | Brand: THK | ||
| HSR-20YR | HSR 20YR LM Block H30×W43.5×L74mm | THK | Type: LM Guide Block | Series: HSR | Model: HSR 20YR | Height M: 30 mm | Width W: 43.5 mm | Length L: 74 mm | Max Rail Length: 3000 mm | Dynamic Load C: 19.8 kN | Static Load C0: 27.4 kN | Structure: Full Ball DF | Mount: Side tapped holes | Application: Symmetric installation | Brand: THK | ||
| HSR-20YRM | HSR 20YRM LM Block H30×W43.5×L74mm | THK | Type: LM Guide Block | Series: HSR | Model: HSR 20YRM | Height M: 30 mm | Width W: 43.5 mm | Length L: 74 mm | Max Rail Length: 1480 mm | Dynamic Load C: 19.8 kN | Static Load C0: 27.4 kN | Structure: Full Ball DF | Mount: Side tapped holes | Application: Symmetric installation | Brand: THK | ||
| HSR-25YR | HSR 25YR LM Block H40×W47.5×L83.1mm | THK | Type: LM Guide Block | Series: HSR | Model: HSR 25YR | Height M: 40 mm | Width W: 47.5 mm | Length L: 83.1 mm | Max Rail Length: 3000 mm | Dynamic Load C: 27.6 kN | Static Load C0: 36.4 kN | Structure: Full Ball DF | Mount: Side tapped holes | Application: Symmetric installation | Brand: THK | ||
| HSR-25YRM | HSR 25YRM LM Block H40×W47.5×L83.1mm | THK | Type: LM Guide Block | Series: HSR | Model: HSR 25YRM | Height M: 40 mm | Width W: 47.5 mm | Length L: 83.1 mm | Max Rail Length: 2020 mm | Dynamic Load C: 27.6 kN | Static Load C0: 36.4 kN | Structure: Full Ball DF | Mount: Side tapped holes | Application: Symmetric installation | Brand: THK | ||
| HSR-30YR | HSR 30YR LM Block H45×W59.5×L98mm | THK | Type: LM Guide Block | Series: HSR | Model: HSR 30YR | Height M: 45 mm | Width W: 59.5 mm | Length L: 98 mm | Max Rail Length: 3000 mm | Dynamic Load C: 40.5 kN | Static Load C0: 53.7 kN | Structure: Full Ball DF | Mount: Side tapped holes | Application: Symmetric installation | Brand: THK | ||
| HSR-30YRM | HSR 30YRM LM Block H45×W59.5×L98mm | THK | Type: LM Guide Block | Series: HSR | Model: HSR 30YRM | Height M: 45 mm | Width W: 59.5 mm | Length L: 98 mm | Max Rail Length: 2020 mm | Dynamic Load C: 40.5 kN | Static Load C0: 53.7 kN | Structure: Full Ball DF | Mount: Side tapped holes | Application: Symmetric installation | Brand: THK | ||
| HSR-35YR | HSR 35YR LM Block H55×W69.5×L109.4mm | THK | Type: LM Guide Block | Series: HSR | Model: HSR 35YR | Height M: 55 mm | Width W: 69.5 mm | Length L: 109.4 mm | Max Rail Length: 3000 mm | Dynamic Load C: 53.9 kN | Static Load C0: 70.2 kN | Structure: Full Ball DF | Mount: Side tapped holes | Application: Symmetric installation | Brand: THK | ||
| HSR-35YRM | HSR 35YRM LM Block H55×W69.5×L109.4mm | THK | Type: LM Guide Block | Series: HSR | Model: HSR 35YRM | Height M: 55 mm | Width W: 69.5 mm | Length L: 109.4 mm | Max Rail Length: 2520 mm | Dynamic Load C: 53.9 kN | Static Load C0: 70.2 kN | Structure: Full Ball DF | Mount: Side tapped holes | Application: Symmetric installation | Brand: THK | ||
| HSR-45YR | HSR 45YR LM Block H70×W85.5×L139mm | THK | Type: LM Guide Block | Series: HSR | Model: HSR 45YR | Height M: 70 mm | Width W: 85.5 mm | Length L: 139 mm | Max Rail Length: 3090 mm | Dynamic Load C: 82.2 kN | Static Load C0: 101 kN | Structure: Full Ball DF | Mount: Side tapped holes | Application: Symmetric installation | Brand: THK | ||
| HSR-55YR | HSR 55YR LM Block H80×W99.5×L163mm | THK | Type: LM Guide Block | Series: HSR | Model: HSR 55YR | Height M: 80 mm | Width W: 99.5 mm | Length L: 163 mm | Max Rail Length: 3060 mm | Dynamic Load C: 121 kN | Static Load C0: 146 kN | Structure: Full Ball DF | Mount: Side tapped holes | Application: Symmetric installation | Brand: THK | ||
| HSR-65YR | HSR 65YR LM Block H90×W124.5×L186mm | THK | Type: LM Guide Block | Series: HSR | Model: HSR 65YR | Height M: 90 mm | Width W: 124.5 mm | Length L: 186 mm | Max Rail Length: 3000 mm | Dynamic Load C: 195 kN | Static Load C0: 228 kN | Structure: Full Ball DF | Mount: Side tapped holes | Application: Symmetric installation | Brand: THK |
