![[THK] — SRS-WS/WM/WN (#15) Miniature LM Guide Block (Wide Block, Low Dust, Stainless)](https://img.prosourcemro.com/2026/05/001-738-1024x819.png)
LM Guides
THK

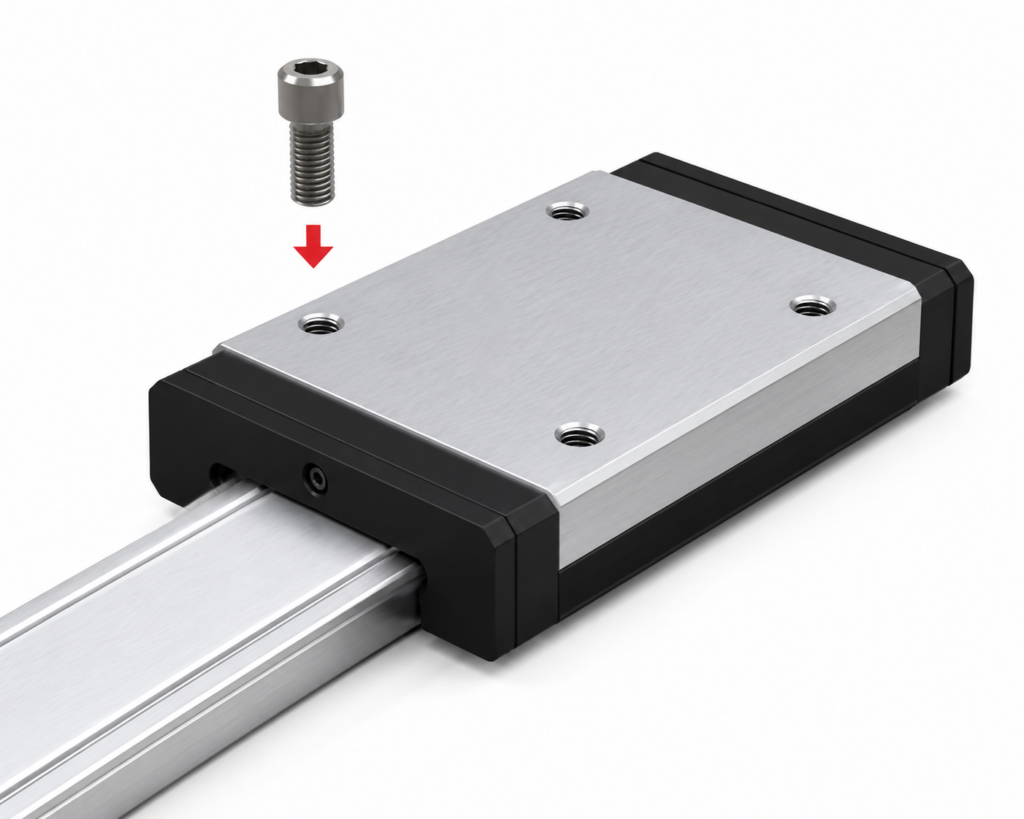

[THK] — SRS-WS/WM/WN (#15) Miniature LM Guide Block (Wide Block, Low Dust, Stainless)
Family ID: THK-SRS-WS15
Miniature low-dust Ball Retainer Type LM Guide. Wide block width (W) type with tapped holes. Stainless steel rail, block and balls. Very low rail profile with compact 2-row ball structure. Partial resin insert molding for lightweight design.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| SRS15WS | SRS 15WS LM Block H16×W60×L41.5mm | THK | Type: LM Guide Block | Series: SRS | Block Width: Wide (W type) | Height M: 16 mm | Width W: 60 mm | Length L: 41.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 6.64 kN | Static Load C0: 5.94 kN | Material: Stainless Steel | Structure: Ball Retainer | Application: Miniature Low-dust | Brand: THK | ||
| SRS15WGS | SRS 15WGS LM Block H16×W60×L41.5mm | THK | Type: LM Guide Block | Series: SRS | Block Width: Wide (W type) | Height M: 16 mm | Width W: 60 mm | Length L: 41.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 5.59 kN | Static Load C0: 6.78 kN | Material: Stainless Steel | Structure: Ball Retainer | Application: Miniature Low-dust | Brand: THK | ||
| SRS15WM | SRS 15WM LM Block H16×W60×L55.5mm | THK | Type: LM Guide Block | Series: SRS | Block Width: Wide (W type) | Height M: 16 mm | Width W: 60 mm | Length L: 55.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 9.12 kN | Static Load C0: 8.55 kN | Material: Stainless Steel | Structure: Ball Retainer | Application: Miniature Low-dust | Brand: THK | ||
| SRS15WGM | SRS 15WGM LM Block H16×W60×L55.5mm | THK | Type: LM Guide Block | Series: SRS | Block Width: Wide (W type) | Height M: 16 mm | Width W: 60 mm | Length L: 55.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 7.43 kN | Static Load C0: 8.59 kN | Material: Stainless Steel | Structure: Ball Retainer | Application: Miniature Low-dust | Brand: THK | ||
| SRS15WN | SRS 15WN LM Block H16×W60×L74.5mm | THK | Type: LM Guide Block | Series: SRS | Block Width: Wide (W type) | Height M: 16 mm | Width W: 60 mm | Length L: 74.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 12.4 kN | Static Load C0: 12.1 kN | Material: Stainless Steel | Structure: Ball Retainer | Application: Miniature Low-dust | Brand: THK | ||
| SRS15WGN | SRS 15WGN LM Block H16×W60×L74.5mm | THK | Type: LM Guide Block | Series: SRS | Block Width: Wide (W type) | Height M: 16 mm | Width W: 60 mm | Length L: 74.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 9.87 kN | Static Load C0: 15.3 kN | Material: Stainless Steel | Structure: Ball Retainer | Application: Miniature Low-dust | Brand: THK |
