LM Guides
THK

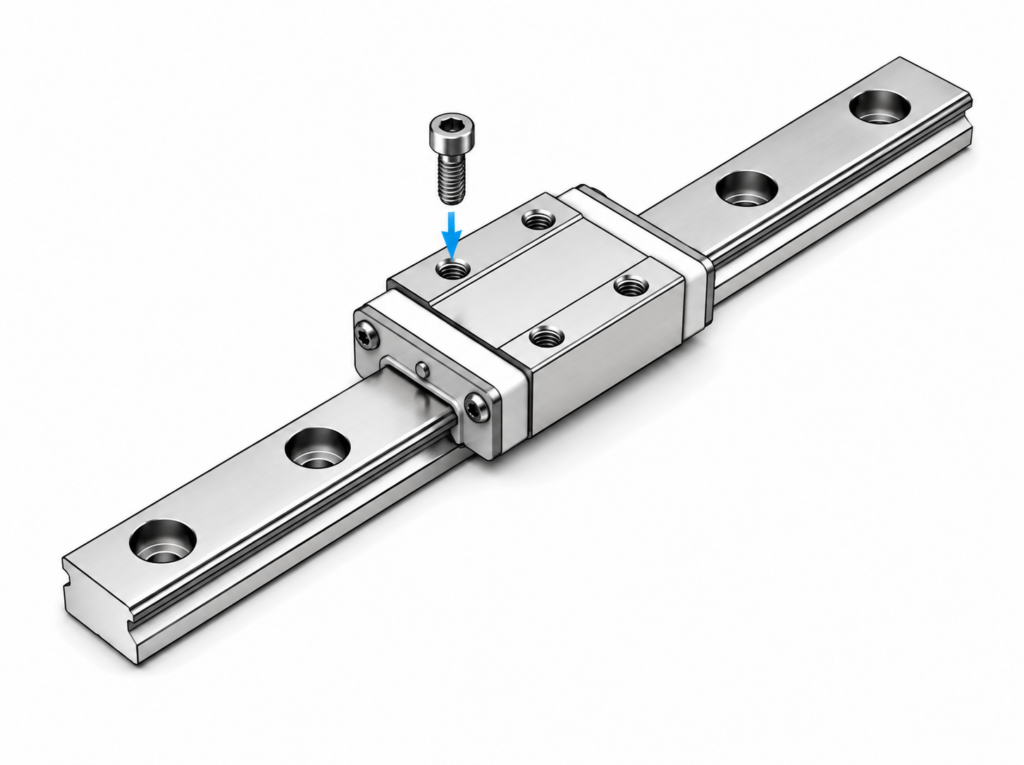

[THK] — RSR-M1K/M1V/M1N High Temperature LM Guide Block (Ball Recirculation, Stainless, 150°C)
Family ID: THK-RSR-M1
High temperature type RSR LM Guide. Tapped standard type. Stainless end plate and high-temp rubber end seal — max 150°C operating temperature. Stainless block, rail and balls — ideal for clean rooms.
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| RSR-9M1K | RSR 9M1K LM Block H10×W20×L30.8mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 9M1K | Height M: 10 mm | Width W: 20 mm | Length L: 30.8 mm | Max Rail Length: 1240 mm | Dynamic Load C: 1.47 kN | Static Load C0: 2.25 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Length: Short (K) | Application: High-temp / Clean room | Brand: THK | ||
| RSR-9M1N | RSR 9M1N LM Block H10×W20×L41mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 9M1N | Height M: 10 mm | Width W: 20 mm | Length L: 41 mm | Max Rail Length: 1240 mm | Dynamic Load C: 2.6 kN | Static Load C0: 3.96 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Length: Long (N) | Application: High-temp / Clean room | Brand: THK | ||
| RSR-12M1V | RSR 12M1V LM Block H13×W27×L35mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 12M1V | Height M: 13 mm | Width W: 27 mm | Length L: 35 mm | Max Rail Length: 1430 mm | Dynamic Load C: 2.65 kN | Static Load C0: 4.02 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Length: Standard (V) | Application: High-temp / Clean room | Brand: THK | ||
| RSR-12M1N | RSR 12M1N LM Block H13×W27×L47.7mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 12M1N | Height M: 13 mm | Width W: 27 mm | Length L: 47.7 mm | Max Rail Length: 1430 mm | Dynamic Load C: 4.3 kN | Static Load C0: 6.65 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Length: Long (N) | Application: High-temp / Clean room | Brand: THK | ||
| RSR-15M1V | RSR 15M1V LM Block H16×W32×L43mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 15M1V | Height M: 16 mm | Width W: 32 mm | Length L: 43 mm | Max Rail Length: 1600 mm | Dynamic Load C: 4.41 kN | Static Load C0: 6.57 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Length: Standard (V) | Application: High-temp / Clean room | Brand: THK | ||
| RSR-15M1N | RSR 15M1N LM Block H16×W32×L61mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 15M1N | Height M: 16 mm | Width W: 32 mm | Length L: 61 mm | Max Rail Length: 1600 mm | Dynamic Load C: 7.16 kN | Static Load C0: 10.7 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Length: Long (N) | Application: High-temp / Clean room | Brand: THK | ||
| RSR-20M1V | RSR 20M1V LM Block H25×W46×L66.5mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 20M1V | Height M: 25 mm | Width W: 46 mm | Length L: 66.5 mm | Max Rail Length: 1800 mm | Dynamic Load C: 8.82 kN | Static Load C0: 12.7 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Length: Standard (V) | Application: High-temp / Clean room | Brand: THK | ||
| RSR-20M1N | RSR 20M1N LM Block H25×W46×L86.3mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 20M1N | Height M: 25 mm | Width W: 46 mm | Length L: 86.3 mm | Max Rail Length: 1800 mm | Dynamic Load C: 14.2 kN | Static Load C0: 20.6 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Length: Long (N) | Application: High-temp / Clean room | Brand: THK |
