LM Guides
THK

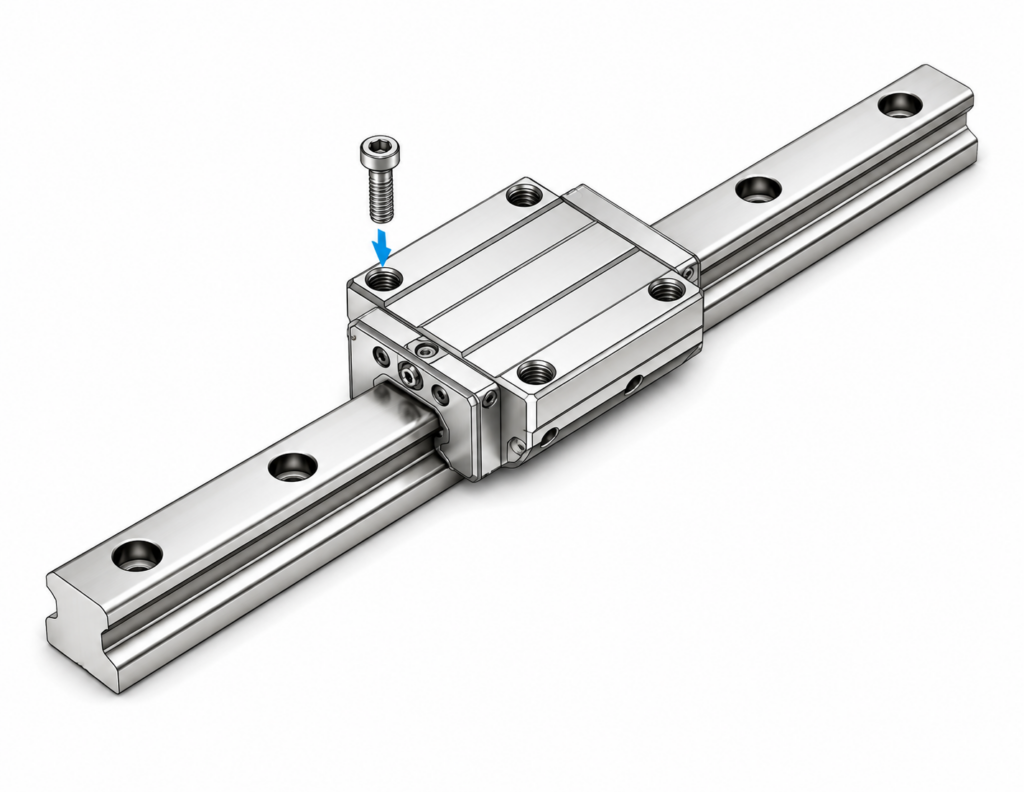

[THK] — HSR-M2 High Corrosion Resistance LM Guide Block (Full Stainless, Flange Tapped)
Family ID: THK-HSR-M2
High corrosion resistance type HSR LM Guide. Flange type with tapped holes. High corrosion resistance stainless steel for block, rail and balls — all metal parts stainless. Excellent corrosion resistance eliminates need for surface treatment.
3 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| HSR-15M2A | HSR 15M2A LM Block H24×W47×L56.6mm | THK | Type: High Corrosion Resistance LM Guide Block | Series: HSR-M2 | Model: HSR 15M2A | Height M: 24 mm | Width W: 47 mm | Length L: 56.6 mm | Max Rail Length: 1000 mm | Dynamic Load C: 2.33 kN | Static Load C0: 2.03 kN | Material: High Corrosion Resistance Stainless Steel (all metal parts) | Mount: Flange Tapped | Brand: THK | ||
| HSR-20M2A | HSR 20M2A LM Block H30×W63×L74mm | THK | Type: High Corrosion Resistance LM Guide Block | Series: HSR-M2 | Model: HSR 20M2A | Height M: 30 mm | Width W: 63 mm | Length L: 74 mm | Max Rail Length: 1000 mm | Dynamic Load C: 3.86 kN | Static Load C0: 3.57 kN | Material: High Corrosion Resistance Stainless Steel (all metal parts) | Mount: Flange Tapped | Brand: THK | ||
| HSR-25M2A | HSR 25M2A LM Block H36×W70×L83.1mm | THK | Type: High Corrosion Resistance LM Guide Block | Series: HSR-M2 | Model: HSR 25M2A | Height M: 36 mm | Width W: 70 mm | Length L: 83.1 mm | Max Rail Length: 1000 mm | Dynamic Load C: 5.57 kN | Static Load C0: 5.16 kN | Material: High Corrosion Resistance Stainless Steel (all metal parts) | Mount: Flange Tapped | Brand: THK |
