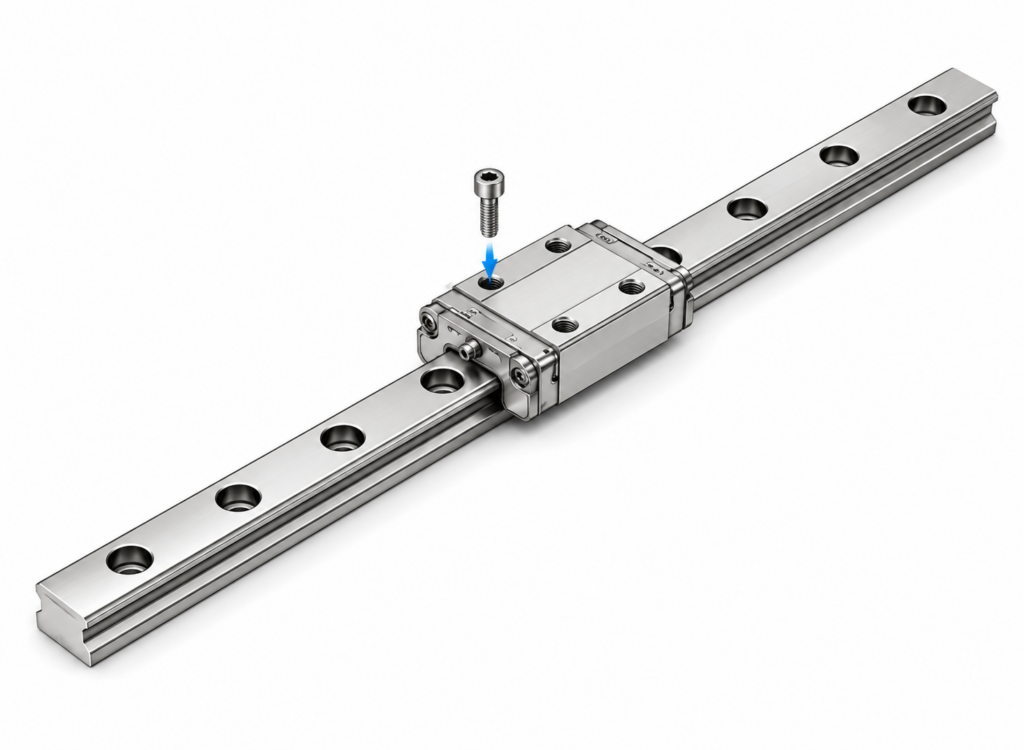

[THK] — RSX-M1/M1N High Temperature LM Guide Block (Wire Retainer, Stainless, 150°C)
Family ID: THK-RSX-M1
High temperature type RSX LM Guide. Tapped standard type. Stainless end plate and high-temp rubber end seal — max 150°C operating temperature. Stainless block, rail and balls — ideal for clean rooms. M1 = standard length, M1N = long block.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| RSX9-M1 | RSX9 M1 LM Block H10×W20×L30.8mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX9 M1 | Height M: 10 mm | Width W: 20 mm | Length L: 30.8 mm | Max Rail Length: 1240 mm | Dynamic Load C: 2.22 kN | Static Load C0: 3.06 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Length: Standard | Application: High-temp / Clean room | Brand: THK | ||
| RSX9-M1N | RSX9 M1N LM Block H10×W20×L40.8mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX9 M1N | Height M: 10 mm | Width W: 20 mm | Length L: 40.8 mm | Max Rail Length: 1240 mm | Dynamic Load C: 2.94 kN | Static Load C0: 4.59 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Length: Long (N type) | Application: High-temp / Clean room | Brand: THK | ||
| RSX12-M1 | RSX12 M1 LM Block H13×W27×L35mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX12 M1 | Height M: 13 mm | Width W: 27 mm | Length L: 35 mm | Max Rail Length: 2000 mm | Dynamic Load C: 3.36 kN | Static Load C0: 4.21 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Length: Standard | Application: High-temp / Clean room | Brand: THK | ||
| RSX12-M1N | RSX12 M1N LM Block H13×W27×L47.7mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX12 M1N | Height M: 13 mm | Width W: 27 mm | Length L: 47.7 mm | Max Rail Length: 2000 mm | Dynamic Load C: 4.72 kN | Static Load C0: 6.83 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Length: Long (N type) | Application: High-temp / Clean room | Brand: THK | ||
| RSX15-M1 | RSX15 M1 LM Block H16×W32×L42.9mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX15 M1 | Height M: 16 mm | Width W: 32 mm | Length L: 42.9 mm | Max Rail Length: 2000 mm | Dynamic Load C: 5.59 kN | Static Load C0: 6.78 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Length: Standard | Application: High-temp / Clean room | Brand: THK | ||
| RSX15-M1N | RSX15 M1N LM Block H16×W32×L60.7mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX15 M1N | Height M: 16 mm | Width W: 32 mm | Length L: 60.7 mm | Max Rail Length: 2000 mm | Dynamic Load C: 8.27 kN | Static Load C0: 11.8 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Length: Long (N type) | Application: High-temp / Clean room | Brand: THK |
