[THK] — HSR-C/CM/LC/LCM LM Guide Block (Full Ball, Flange Type)
LM Guides THK

[THK] — HSR-C/CM/LC/LCM LM Guide Block (Full Ball, Flange Type)

Family ID: THK-HSR-C

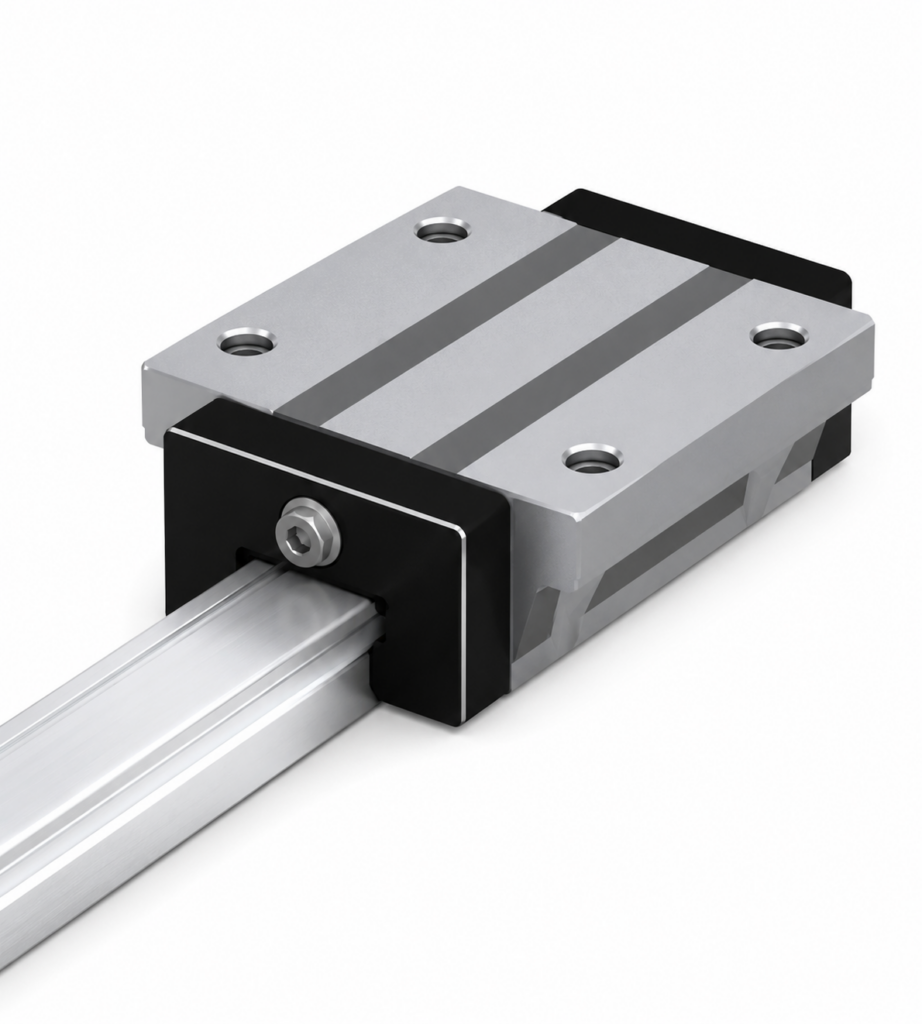

Full ball type LM Guide. World standard dimensions. Flange type with tapped holes — mountable from top or bottom. 4-direction equal load rating with 45° ball arrangement. THK Circular Arc groove (DF structure). Stainless steel option available.

26 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
HSR15C HSR15C LM Block H24×W47×L56.6mm THK Type: LM Guide Block | Series: HSR | Block Type: C | Height M: 24 mm | Width W: 47 mm | Length L: 56.6 mm | Max Rail Length: 3000 mm | Dynamic Load C: 10.9 kN | Static Load C0: 15.7 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
HSR15CM HSR15CM LM Block H24×W47×L56.6mm THK Type: LM Guide Block | Series: HSR | Block Type: CM | Height M: 24 mm | Width W: 47 mm | Length L: 56.6 mm | Max Rail Length: 3000 mm | Dynamic Load C: 10.9 kN | Static Load C0: 15.7 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
HSR15LC HSR15LC LM Block H24×W47×L74.6mm THK Type: LM Guide Block | Series: HSR | Block Type: LC | Height M: 24 mm | Width W: 47 mm | Length L: 74.6 mm | Max Rail Length: 3000 mm | Dynamic Load C: 14.2 kN | Static Load C0: 22.9 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
HSR15LCM HSR15LCM LM Block H24×W47×L74.6mm THK Type: LM Guide Block | Series: HSR | Block Type: LCM | Height M: 24 mm | Width W: 47 mm | Length L: 74.6 mm | Max Rail Length: 3000 mm | Dynamic Load C: 14.2 kN | Static Load C0: 22.9 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
HSR20C HSR20C LM Block H30×W63×L74mm THK Type: LM Guide Block | Series: HSR | Block Type: C | Height M: 30 mm | Width W: 63 mm | Length L: 74 mm | Max Rail Length: 3000 mm | Dynamic Load C: 19.8 kN | Static Load C0: 27.4 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
HSR20CM HSR20CM LM Block H30×W63×L74mm THK Type: LM Guide Block | Series: HSR | Block Type: CM | Height M: 30 mm | Width W: 63 mm | Length L: 74 mm | Max Rail Length: 3000 mm | Dynamic Load C: 19.8 kN | Static Load C0: 27.4 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
HSR20LC HSR20LC LM Block H30×W63×L90mm THK Type: LM Guide Block | Series: HSR | Block Type: LC | Height M: 30 mm | Width W: 63 mm | Length L: 90 mm | Max Rail Length: 3000 mm | Dynamic Load C: 23.9 kN | Static Load C0: 35.8 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
HSR20LCM HSR20LCM LM Block H30×W63×L90mm THK Type: LM Guide Block | Series: HSR | Block Type: LCM | Height M: 30 mm | Width W: 63 mm | Length L: 90 mm | Max Rail Length: 3000 mm | Dynamic Load C: 23.9 kN | Static Load C0: 35.8 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
HSR25C HSR25C LM Block H36×W70×L83.1mm THK Type: LM Guide Block | Series: HSR | Block Type: C | Height M: 36 mm | Width W: 70 mm | Length L: 83.1 mm | Max Rail Length: 3000 mm | Dynamic Load C: 27.6 kN | Static Load C0: 36.4 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
HSR25CM HSR25CM LM Block H36×W70×L83.1mm THK Type: LM Guide Block | Series: HSR | Block Type: CM | Height M: 36 mm | Width W: 70 mm | Length L: 83.1 mm | Max Rail Length: 3000 mm | Dynamic Load C: 27.6 kN | Static Load C0: 36.4 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
HSR25LC HSR25LC LM Block H36×W70×L102.2mm THK Type: LM Guide Block | Series: HSR | Block Type: LC | Height M: 36 mm | Width W: 70 mm | Length L: 102.2 mm | Max Rail Length: 3000 mm | Dynamic Load C: 35.2 kN | Static Load C0: 51.6 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
HSR25LCM HSR25LCM LM Block H36×W70×L102.2mm THK Type: LM Guide Block | Series: HSR | Block Type: LCM | Height M: 36 mm | Width W: 70 mm | Length L: 102.2 mm | Max Rail Length: 3000 mm | Dynamic Load C: 35.2 kN | Static Load C0: 51.6 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
HSR30C HSR30C LM Block H42×W90×L98mm THK Type: LM Guide Block | Series: HSR | Block Type: C | Height M: 42 mm | Width W: 90 mm | Length L: 98 mm | Max Rail Length: 3000 mm | Dynamic Load C: 40.5 kN | Static Load C0: 53.7 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
HSR30CM HSR30CM LM Block H42×W90×L98mm THK Type: LM Guide Block | Series: HSR | Block Type: CM | Height M: 42 mm | Width W: 90 mm | Length L: 98 mm | Max Rail Length: 3000 mm | Dynamic Load C: 40.5 kN | Static Load C0: 53.7 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
HSR30LC HSR30LC LM Block H42×W90×L120.6mm THK Type: LM Guide Block | Series: HSR | Block Type: LC | Height M: 42 mm | Width W: 90 mm | Length L: 120.6 mm | Max Rail Length: 3000 mm | Dynamic Load C: 48.9 kN | Static Load C0: 70.2 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
HSR30LCM HSR30LCM LM Block H42×W90×L120.6mm THK Type: LM Guide Block | Series: HSR | Block Type: LCM | Height M: 42 mm | Width W: 90 mm | Length L: 120.6 mm | Max Rail Length: 3000 mm | Dynamic Load C: 48.9 kN | Static Load C0: 70.2 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
HSR35C HSR35C LM Block H48×W100×L109.4mm THK Type: LM Guide Block | Series: HSR | Block Type: C | Height M: 48 mm | Width W: 100 mm | Length L: 109.4 mm | Max Rail Length: 3000 mm | Dynamic Load C: 53.9 kN | Static Load C0: 70.2 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
HSR35CM HSR35CM LM Block H48×W100×L109.4mm THK Type: LM Guide Block | Series: HSR | Block Type: CM | Height M: 48 mm | Width W: 100 mm | Length L: 109.4 mm | Max Rail Length: 3000 mm | Dynamic Load C: 53.9 kN | Static Load C0: 70.2 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
HSR35LC HSR35LC LM Block H48×W100×L134.8mm THK Type: LM Guide Block | Series: HSR | Block Type: LC | Height M: 48 mm | Width W: 100 mm | Length L: 134.8 mm | Max Rail Length: 3000 mm | Dynamic Load C: 65 kN | Static Load C0: 91.7 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK | Note: W corrected from source typo (10→100)
HSR35LCM HSR35LCM LM Block H48×W100×L134.8mm THK Type: LM Guide Block | Series: HSR | Block Type: LCM | Height M: 48 mm | Width W: 100 mm | Length L: 134.8 mm | Max Rail Length: 3000 mm | Dynamic Load C: 65 kN | Static Load C0: 91.7 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK | Note: W corrected from source typo (10→100)
HSR45C HSR45C LM Block H60×W120×L139mm THK Type: LM Guide Block | Series: HSR | Block Type: C | Height M: 60 mm | Width W: 120 mm | Length L: 139 mm | Max Rail Length: 3090 mm | Dynamic Load C: 82.2 kN | Static Load C0: 101 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
HSR45LC HSR45LC LM Block H60×W120×L170.8mm THK Type: LM Guide Block | Series: HSR | Block Type: LC | Height M: 60 mm | Width W: 120 mm | Length L: 170.8 mm | Max Rail Length: 3090 mm | Dynamic Load C: 100 kN | Static Load C0: 135 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
HSR55C HSR55C LM Block H70×W140×L163mm THK Type: LM Guide Block | Series: HSR | Block Type: C | Height M: 70 mm | Width W: 140 mm | Length L: 163 mm | Max Rail Length: 3060 mm | Dynamic Load C: 121 kN | Static Load C0: 146 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
HSR55LC HSR55LC LM Block H70×W140×L201.1mm THK Type: LM Guide Block | Series: HSR | Block Type: LC | Height M: 70 mm | Width W: 140 mm | Length L: 201.1 mm | Max Rail Length: 3060 mm | Dynamic Load C: 148 kN | Static Load C0: 194 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
HSR65XC HSR65XC LM Block H90×W170×L190.5mm THK Type: LM Guide Block | Series: HSR | Block Type: C | Height M: 90 mm | Width W: 170 mm | Length L: 190.5 mm | Max Rail Length: 3000 mm | Dynamic Load C: 195 kN | Static Load C0: 228 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
HSR65XLC HSR65XLC LM Block H90×W170×L250mm THK Type: LM Guide Block | Series: HSR | Block Type: LC | Height M: 90 mm | Width W: 170 mm | Length L: 250 mm | Max Rail Length: 3000 mm | Dynamic Load C: 249 kN | Static Load C0: 323 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Brand: THK
