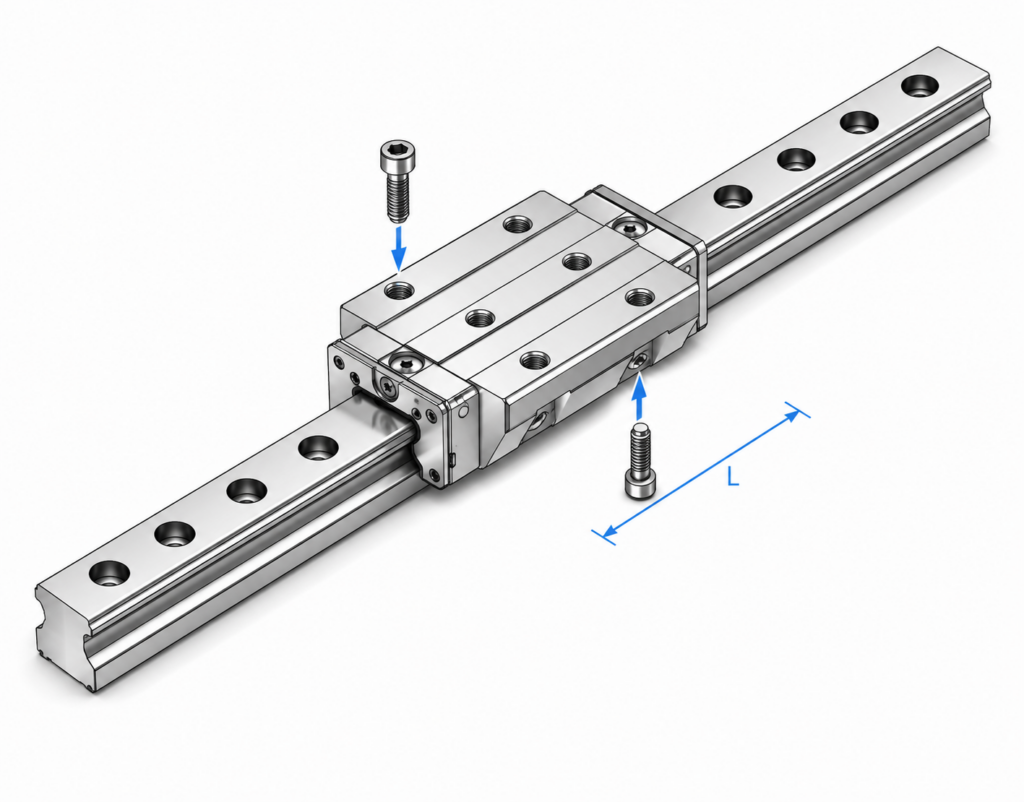

[THK] — SRG-LC (85/100) Roller Retainer LM Guide Block (Super High Rigidity, Large, Flange Through-hole)
Family ID: THK-SRG-LC-8100
Super high rigidity Roller Retainer type LM Guide. Large size. Flange with through-holes — mountable from top or bottom. High rigidity rollers with length ≥1.5× roller diameter. Roller retainer prevents skew for smooth low-variation motion.
2 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| SRG-85LC | SRG 85LC LM Block H110×W215×L350mm | THK | Type: Roller Retainer LM Guide Block | Series: SRG | Model: SRG 85LC | Height M: 110 mm | Width W: 215 mm | Length L: 350 mm | Max Rail Length: 3000 mm | Dynamic Load C: 497 kN | Static Load C0: 990 kN | Rolling Element: Roller (length ≥1.5× dia.) | Retainer: Yes | Mount: Flange Through-hole (top or bottom) | Block Length: Long (LC) | Scale: Large | Brand: THK | ||
| SRG-100LC | SRG 100LC LM Block H120×W250×L395mm | THK | Type: Roller Retainer LM Guide Block | Series: SRG | Model: SRG 100LC | Height M: 120 mm | Width W: 250 mm | Length L: 395 mm | Max Rail Length: 3000 mm | Dynamic Load C: 601 kN | Static Load C0: 1170 kN | Rolling Element: Roller (length ≥1.5× dia.) | Retainer: Yes | Mount: Flange Through-hole (top or bottom) | Block Length: Long (LC) | Scale: Large | Brand: THK |
