[THK] — SHW-CA/CAM LM Guide Block (Wide Rail, Flange Type, Ball Retainer)

Family ID: THK-SHW-CA

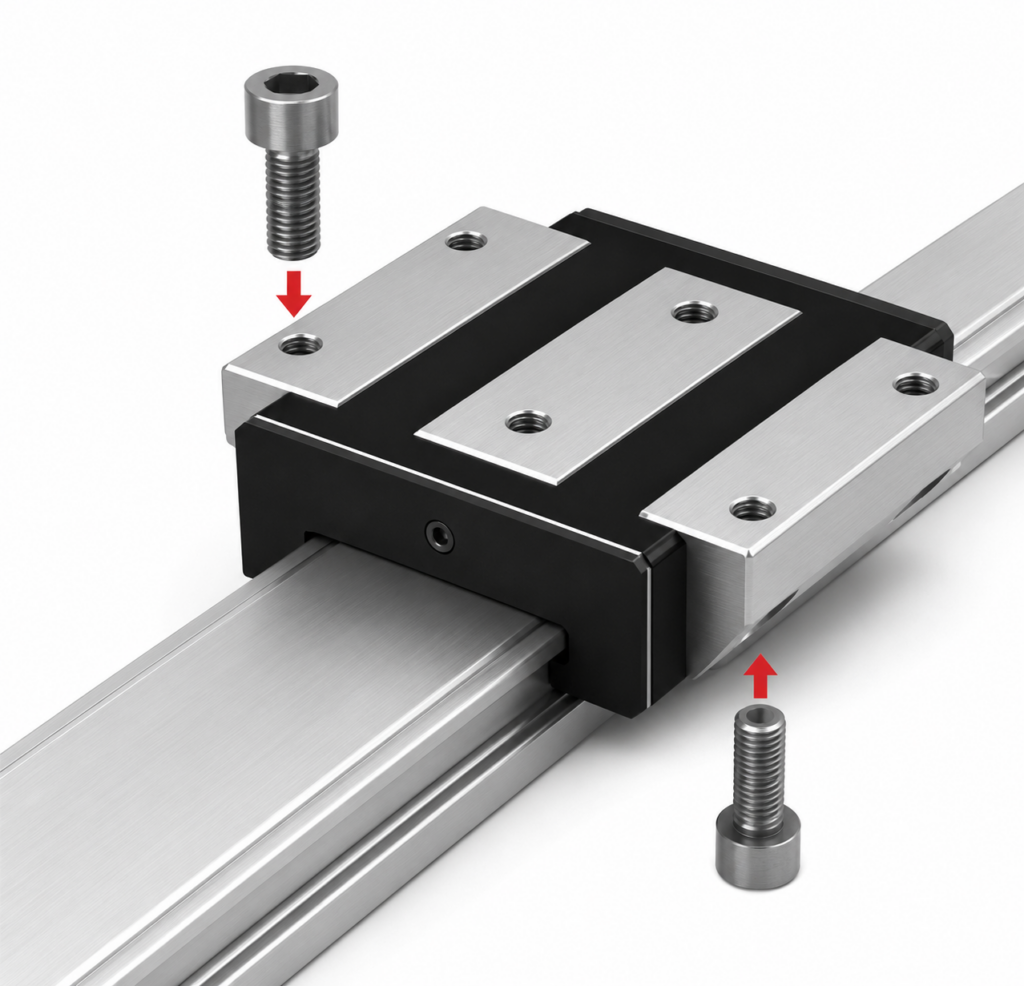

Wide rail Ball Retainer Type LM Guide. Flange type with tapped holes — mountable from top or bottom. Wide, low-profile rail for optimal rolling moment rigidity. 4-direction equal load type. THK Circular Arc groove (DF structure).

7 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code	Description	Brand	Spec
SHW-12CAM	SHW 12CAM LM Block H12×W40×L37mm	THK	Type: LM Guide Block \| Series: SHW \| Block Type: 12CAM \| Height M: 12 mm \| Width W: 40 mm \| Length L: 37 mm \| Max Rail Length: 1230 mm \| Dynamic Load C: 4.31 kN \| Static Load C0: 5.66 kN \| Structure: Ball Retainer DF \| Rail Type: Wide \| Load Type: 4-Direction Equal \| Brand: THK
SHW-14CAM	SHW 14CAM LM Block H14×W50×L45.5mm	THK	Type: LM Guide Block \| Series: SHW \| Block Type: 14CAM \| Height M: 14 mm \| Width W: 50 mm \| Length L: 45.5 mm \| Max Rail Length: 1430 mm \| Dynamic Load C: 7.05 kN \| Static Load C0: 8.98 kN \| Structure: Ball Retainer DF \| Rail Type: Wide \| Load Type: 4-Direction Equal \| Brand: THK
SHW-17CAM	SHW 17CAM LM Block H17×W60×L51mm	THK	Type: LM Guide Block \| Series: SHW \| Block Type: 17CAM \| Height M: 17 mm \| Width W: 60 mm \| Length L: 51 mm \| Max Rail Length: 1800 mm \| Dynamic Load C: 7.65 kN \| Static Load C0: 10.18 kN \| Structure: Ball Retainer DF \| Rail Type: Wide \| Load Type: 4-Direction Equal \| Brand: THK
SHW-21CA	SHW 21CA LM Block H21×W68×L59mm	THK	Type: LM Guide Block \| Series: SHW \| Block Type: 21CA \| Height M: 21 mm \| Width W: 68 mm \| Length L: 59 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 8.24 kN \| Static Load C0: 12.8 kN \| Structure: Ball Retainer DF \| Rail Type: Wide \| Load Type: 4-Direction Equal \| Brand: THK
SHW-27CA	SHW 27CA LM Block H27×W80×L72.8mm	THK	Type: LM Guide Block \| Series: SHW \| Block Type: 27CA \| Height M: 27 mm \| Width W: 80 mm \| Length L: 72.8 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 16 kN \| Static Load C0: 22.7 kN \| Structure: Ball Retainer DF \| Rail Type: Wide \| Load Type: 4-Direction Equal \| Brand: THK
SHW-35CA	SHW 35CA LM Block H35×W120×L107mm	THK	Type: LM Guide Block \| Series: SHW \| Block Type: 35CA \| Height M: 35 mm \| Width W: 120 mm \| Length L: 107 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 35.5 kN \| Static Load C0: 49.2 kN \| Structure: Ball Retainer DF \| Rail Type: Wide \| Load Type: 4-Direction Equal \| Brand: THK
SHW-50CA	SHW 50CA LM Block H50×W162×L141mm	THK	Type: LM Guide Block \| Series: SHW \| Block Type: 50CA \| Height M: 50 mm \| Width W: 162 mm \| Length L: 141 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 70.2 kN \| Static Load C0: 91.4 kN \| Structure: Ball Retainer DF \| Rail Type: Wide \| Load Type: 4-Direction Equal \| Brand: THK
