![[THK] — SRG-XGA/XGLA/XGC/XGLC Full Roller LM Guide Block (Super High Rigidity, 15~30)](https://img.prosourcemro.com/2026/05/001-804-1024x819.png)
LM Guides
THK

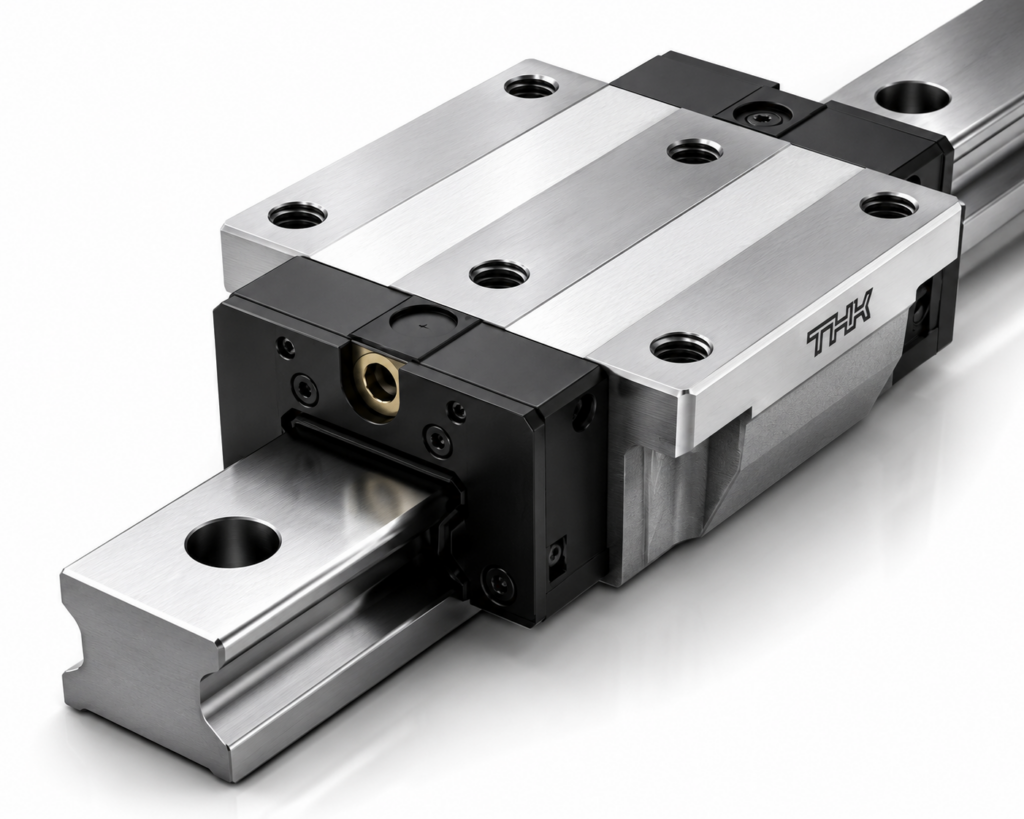

[THK] — SRG-XGA/XGLA/XGC/XGLC Full Roller LM Guide Block (Super High Rigidity, 15~30)
Family ID: THK-SRG-XGA-XGC
Super high rigidity Full Roller type LM Guide. XGA type: flange tapped / XGC type: mountable from top or bottom / XGL: long block higher load. High rigidity rollers with length ≥1.5× roller diameter for maximum rigidity.
7 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| SRG15XGA | SRG15XGA LM Block H24×W47×L69.2mm | THK | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG15XGA | Height M: 24 mm | Width W: 47 mm | Length L: 69.2 mm | Max Rail Length: 3000 mm | Dynamic Load C: 11.3 kN | Static Load C0: 30.9 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Flange Tapped | Block Length: Standard | Brand: THK | ||
| SRG20XGA | SRG20XGA LM Block H30×W63×L86.2mm | THK | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG20XGA | Height M: 30 mm | Width W: 63 mm | Length L: 86.2 mm | Max Rail Length: 3000 mm | Dynamic Load C: 20.6 kN | Static Load C0: 54.4 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Flange Tapped | Block Length: Standard | Brand: THK | ||
| SRG20XGLA | SRG20XGLA LM Block H30×W63×L106.2mm | THK | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG20XGLA | Height M: 30 mm | Width W: 63 mm | Length L: 106.2 mm | Max Rail Length: 3000 mm | Dynamic Load C: 25.9 kN | Static Load C0: 73.1 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Flange Tapped | Block Length: Long (XGL) | Brand: THK | ||
| SRG25XGC | SRG25XGC LM Block H36×W70×L95.1mm | THK | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG25XGC | Height M: 36 mm | Width W: 70 mm | Length L: 95.1 mm | Max Rail Length: 3000 mm | Dynamic Load C: 26.7 kN | Static Load C0: 65.0 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Flange (top or bottom) | Block Length: Standard | Brand: THK | ||
| SRG25XGLC | SRG25XGLC LM Block H36×W70×L115.1mm | THK | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG25XGLC | Height M: 36 mm | Width W: 70 mm | Length L: 115.1 mm | Max Rail Length: 3000 mm | Dynamic Load C: 32.9 kN | Static Load C0: 85.0 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Flange (top or bottom) | Block Length: Long (XGL) | Brand: THK | ||
| SRG30XGC | SRG30XGC LM Block H42×W90×L111mm | THK | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG30XGC | Height M: 42 mm | Width W: 90 mm | Length L: 111 mm | Max Rail Length: 3000 mm | Dynamic Load C: 38.7 kN | Static Load C0: 96.9 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Flange (top or bottom) | Block Length: Standard | Brand: THK | ||
| SRG30XGLC | SRG30XGLC LM Block H42×W90×L135mm | THK | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG30XGLC | Height M: 42 mm | Width W: 90 mm | Length L: 135 mm | Max Rail Length: 3000 mm | Dynamic Load C: 47.4 kN | Static Load C0: 126 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Flange (top or bottom) | Block Length: Long (XGL) | Brand: THK |
