[THK] — SVR-C/LC LM Guide Block (Heavy Load, Flange Type, Radial, Ball Retainer)

Family ID: THK-SVR-C

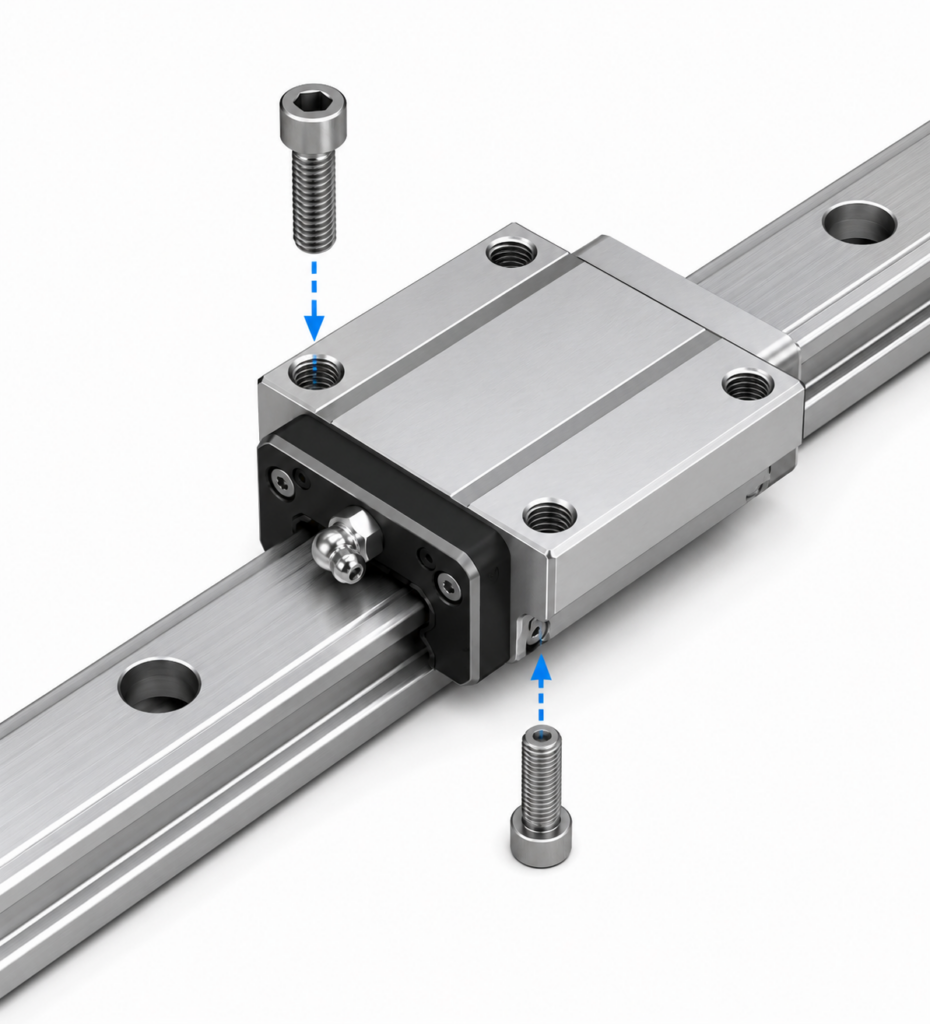

Heavy load Ball Retainer Type LM Guide for machine tools. Flange type with tapped holes — mountable from top or bottom. Circular Arc groove structure: increased ball contact area under load for high load capacity and improved damping. SVR = radial type.

12 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code	Description	Brand	Spec
SVR-25C	SVR 25C LM Block H31×W72×L82.8mm	THK	Type: LM Guide Block \| Series: SVR \| Block Type: 25C \| Height M: 31 mm \| Width W: 72 mm \| Length L: 82.8 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 48.2 kN \| Static Load C0: 68.1 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: Radial \| Brand: THK
SVR-25LC	SVR 25LC LM Block H31×W72×L102mm	THK	Type: LM Guide Block \| Series: SVR \| Block Type: 25LC \| Height M: 31 mm \| Width W: 72 mm \| Length L: 102 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 57 kN \| Static Load C0: 86.3 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: Radial \| Brand: THK
SVR-30C	SVR 30C LM Block H38×W90×L98mm	THK	Type: LM Guide Block \| Series: SVR \| Block Type: 30C \| Height M: 38 mm \| Width W: 90 mm \| Length L: 98 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 67.9 kN \| Static Load C0: 91.6 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: Radial \| Brand: THK
SVR-30LC	SVR 30LC LM Block H38×W90×L120.5mm	THK	Type: LM Guide Block \| Series: SVR \| Block Type: 30LC \| Height M: 38 mm \| Width W: 90 mm \| Length L: 120.5 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 84 kN \| Static Load C0: 124 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: Radial \| Brand: THK
SVR-35C	SVR 35C LM Block H44×W100×L109.5mm	THK	Type: LM Guide Block \| Series: SVR \| Block Type: 35C \| Height M: 44 mm \| Width W: 100 mm \| Length L: 109.5 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 89.6 kN \| Static Load C0: 116 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: Radial \| Brand: THK
SVR-35LC	SVR 35LC LM Block H44×W100×L135mm	THK	Type: LM Guide Block \| Series: SVR \| Block Type: 35LC \| Height M: 44 mm \| Width W: 100 mm \| Length L: 135 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 112 kN \| Static Load C0: 160 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: Radial \| Brand: THK
SVR-45C	SVR 45C LM Block H52×W120×L138.2mm	THK	Type: LM Guide Block \| Series: SVR \| Block Type: 45C \| Height M: 52 mm \| Width W: 120 mm \| Length L: 138.2 mm \| Max Rail Length: 3090 mm \| Dynamic Load C: 138 kN \| Static Load C0: 186 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: Radial \| Brand: THK
SVR-45LC	SVR 45LC LM Block H52×W120×L171mm	THK	Type: LM Guide Block \| Series: SVR \| Block Type: 45LC \| Height M: 52 mm \| Width W: 120 mm \| Length L: 171 mm \| Max Rail Length: 3090 mm \| Dynamic Load C: 161 kN \| Static Load C0: 233 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: Radial \| Brand: THK
SVR-55C	SVR 55C LM Block H63×W140×L163.3mm	THK	Type: LM Guide Block \| Series: SVR \| Block Type: 55C \| Height M: 63 mm \| Width W: 140 mm \| Length L: 163.3 mm \| Max Rail Length: 3060 mm \| Dynamic Load C: 177 kN \| Static Load C0: 235 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: Radial \| Brand: THK
SVR-55LC	SVR 55LC LM Block H63×W140×L200.5mm	THK	Type: LM Guide Block \| Series: SVR \| Block Type: 55LC \| Height M: 63 mm \| Width W: 140 mm \| Length L: 200.5 mm \| Max Rail Length: 3060 mm \| Dynamic Load C: 214 kN \| Static Load C0: 309 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: Radial \| Brand: THK
SVR-65C	SVR 65C LM Block H75×W170×L186mm	THK	Type: LM Guide Block \| Series: SVR \| Block Type: 65C \| Height M: 75 mm \| Width W: 170 mm \| Length L: 186 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 271 kN \| Static Load C0: 352 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: Radial \| Brand: THK
SVR-65LC	SVR 65LC LM Block H75×W170×L246mm	THK	Type: LM Guide Block \| Series: SVR \| Block Type: 65LC \| Height M: 75 mm \| Width W: 170 mm \| Length L: 246 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 339 kN \| Static Load C0: 484 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: Radial \| Brand: THK
