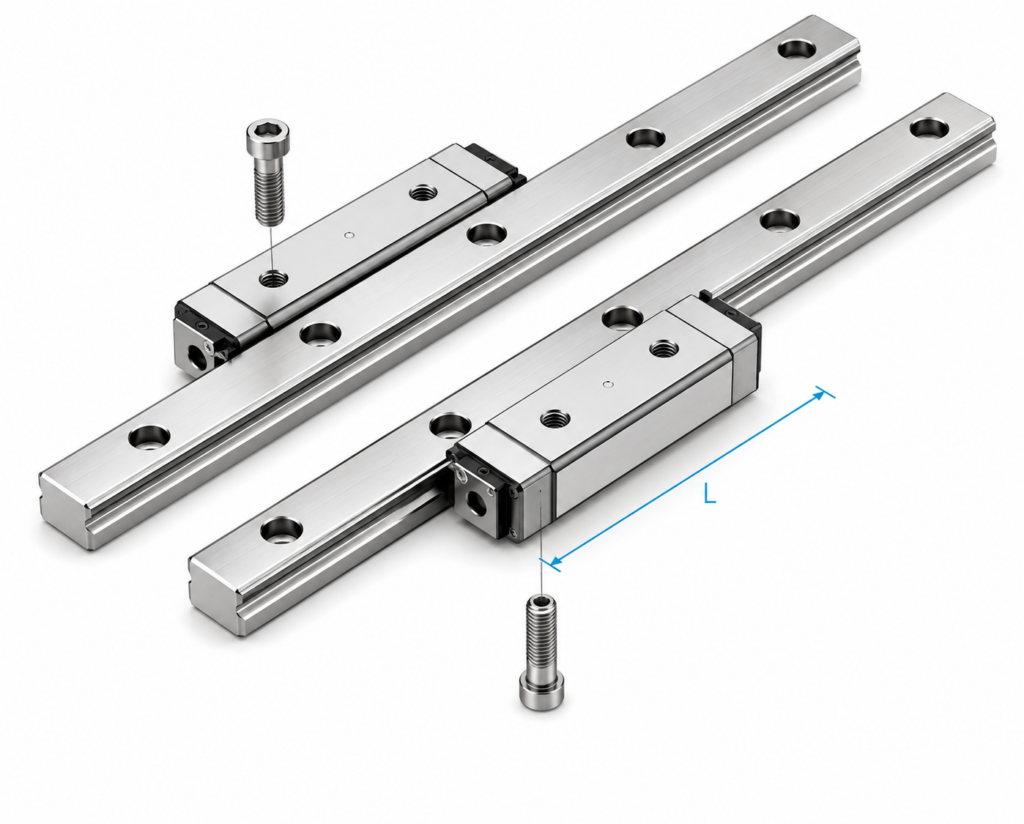

[THK] — HR-3065~60125 Separable LM Guide Block (Heavy/Super Heavy Load, 4-Direction)
Family ID: THK-HR-3065-60125
Separable type LM Guide. HR = heavy load, HR-T = super heavy load. Easier clearance adjustment than cross roller guides. 4-direction equal load with Circular Arc groove DF front combination for superior self-alignment.
9 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| HR-3065 | HR 3065 LM Block H30×W40.3×L145mm | THK | Type: Separable LM Guide Block | Series: HR | Model: HR 3065 | Height M: 30 mm | Width W: 40.3 mm | Length L: 145 mm | Max Rail Length: 3000 mm | Dynamic Load C: 42.6 kN | Static Load C0: 44.4 kN | Load Type: Heavy | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK | ||
| HR-3065T | HR 3065T LM Block H30×W40.3×L173.5mm | THK | Type: Separable LM Guide Block | Series: HR | Model: HR 3065T | Height M: 30 mm | Width W: 40.3 mm | Length L: 173.5 mm | Max Rail Length: 3000 mm | Dynamic Load C: 51.5 kN | Static Load C0: 58.1 kN | Load Type: Super Heavy (T type) | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK | ||
| HR-3575 | HR 3575 LM Block H35×W44.9×L154.8mm | THK | Type: Separable LM Guide Block | Series: HR | Model: HR 3575 | Height M: 35 mm | Width W: 44.9 mm | Length L: 154.8 mm | Max Rail Length: 3000 mm | Dynamic Load C: 53.5 kN | Static Load C0: 54.8 kN | Load Type: Heavy | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK | ||
| HR-3575T | HR 3575T LM Block H35×W44.9×L182.5mm | THK | Type: Separable LM Guide Block | Series: HR | Model: HR 3575T | Height M: 35 mm | Width W: 44.9 mm | Length L: 182.5 mm | Max Rail Length: 3000 mm | Dynamic Load C: 64.4 kN | Static Load C0: 71.7 kN | Load Type: Super Heavy (T type) | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK | ||
| HR-4085 | HR 4085 LM Block H40×W50.4×L177.8mm | THK | Type: Separable LM Guide Block | Series: HR | Model: HR 4085 | Height M: 40 mm | Width W: 50.4 mm | Length L: 177.8 mm | Max Rail Length: 3000 mm | Dynamic Load C: 78.8 kN | Static Load C0: 78.9 kN | Load Type: Heavy | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK | ||
| HR-4085T | HR 4085T LM Block H40×W50.4×L215.9mm | THK | Type: Separable LM Guide Block | Series: HR | Model: HR 4085T | Height M: 40 mm | Width W: 50.4 mm | Length L: 215.9 mm | Max Rail Length: 3000 mm | Dynamic Load C: 95.1 kN | Static Load C0: 103 kN | Load Type: Super Heavy (T type) | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK | ||
| HR-50105 | HR 50105 LM Block H50×W63.4×L227mm | THK | Type: Separable LM Guide Block | Series: HR | Model: HR 50105 | Height M: 50 mm | Width W: 63.4 mm | Length L: 227 mm | Max Rail Length: 3000 mm | Dynamic Load C: 127 kN | Static Load C0: 123 kN | Load Type: Heavy | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK | ||
| HR-50105T | HR 50105T LM Block H50×W63.4×L274.5mm | THK | Type: Separable LM Guide Block | Series: HR | Model: HR 50105T | Height M: 50 mm | Width W: 63.4 mm | Length L: 274.5 mm | Max Rail Length: 3000 mm | Dynamic Load C: 153 kN | Static Load C0: 161 kN | Load Type: Super Heavy (T type) | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK | ||
| HR-60125 | HR 60125 LM Block H60×W74.4×L329mm | THK | Type: Separable LM Guide Block | Series: HR | Model: HR 60125 | Height M: 60 mm | Width W: 74.4 mm | Length L: 329 mm | Max Rail Length: 3000 mm | Dynamic Load C: 226 kN | Static Load C0: 232 kN | Load Type: Heavy | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK |
