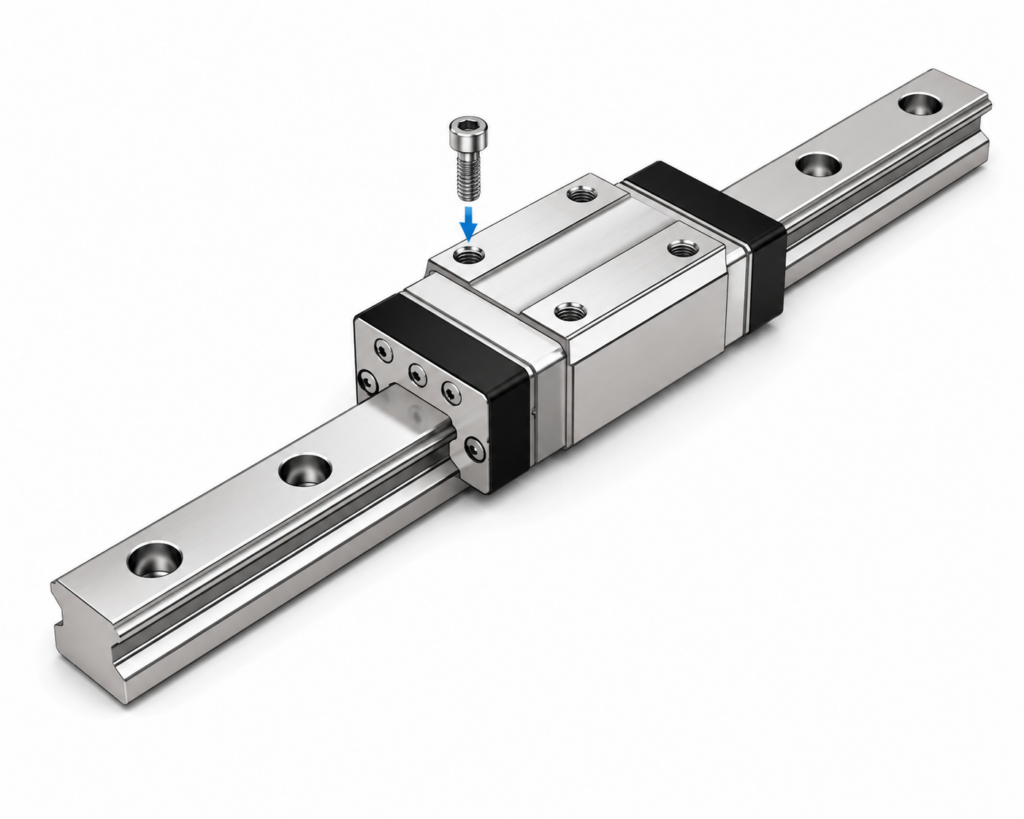

[THK] — HSR-M1VV Medium/Low Vacuum LM Guide Block (Narrow Width, Stainless, 10⁻³ Pa)
Family ID: THK-HSR-M1VV
Medium/Low vacuum type HSR LM Guide. Narrow block width with tapped holes. Usable from atmospheric pressure to vacuum (10⁻³ Pa). Baking temperature up to 200°C. New labyrinth end seal for long-term vacuum use. Vacuum-grade grease for stable rolling resistance.
1 product code available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| HSR15M1RVV | HSR15M1RVV LM Block H28×W34×L75mm | THK | Type: Medium/Low Vacuum LM Guide Block | Series: HSR-M1VV | Model: HSR15M1RVV | Height M: 28 mm | Width W: 34 mm | Length L: 75 mm | Max Rail Length: 1240 mm | Dynamic Load C: 8.33 kN | Static Load C0: 13.5 kN | Vacuum Rating: Atmospheric ~ 10⁻³ Pa | Max Baking Temperature: 200°C | Seal: Labyrinth End Seal | Mount: Narrow Width Tapped | Brand: THK |
