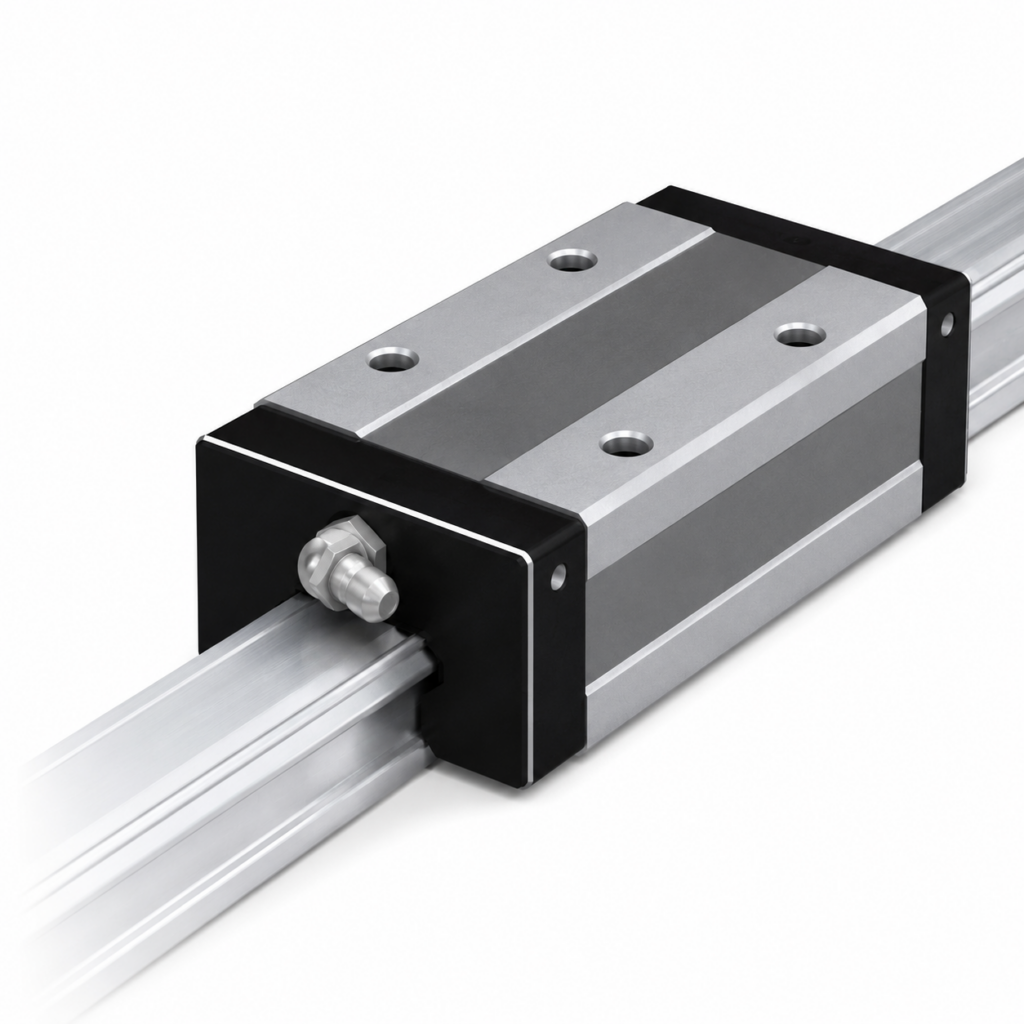

[THK] — SHS-V/VM/LV/LVM LM Guide Block (Slim Flange Type, Ball Retainer)
Family ID: THK-SHS-V
Ball Retainer Type LM Guide. 4-direction equal load rating with 45° ball arrangement. THK Circular Arc groove (DF structure) for superior self-alignment. Compact rail cross-section for high rigidity and low center of gravity. Slim flange type (V/VM/LV/LVM). Compact width for space-saving installation.
22 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| SHS-15V | SHS 15V LM Block H24×W34×L64.4mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 15V | Height M: 24 mm | Width W: 34 mm | Length L: 64.4 mm | Max Rail Length: 3000 mm | Dynamic Load C: 14.2 kN | Static Load C0: 24.2 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-15VM | SHS 15VM LM Block H24×W34×L64.4mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 15VM | Height M: 24 mm | Width W: 34 mm | Length L: 64.4 mm | Max Rail Length: 1240 mm | Dynamic Load C: 14.2 kN | Static Load C0: 24.2 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-15LV | SHS 15LV LM Block H24×W34×L79.4mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 15LV | Height M: 24 mm | Width W: 34 mm | Length L: 79.4 mm | Max Rail Length: 3000 mm | Dynamic Load C: 17.2 kN | Static Load C0: 31.9 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-15LVM | SHS 15LVM LM Block H24×W34×L79.4mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 15LVM | Height M: 24 mm | Width W: 34 mm | Length L: 79.4 mm | Max Rail Length: 1240 mm | Dynamic Load C: 17.2 kN | Static Load C0: 31.9 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-20V | SHS 20V LM Block H30×W44×L79mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 20V | Height M: 30 mm | Width W: 44 mm | Length L: 79 mm | Max Rail Length: 3000 mm | Dynamic Load C: 22.3 kN | Static Load C0: 38.4 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-20VM | SHS 20VM LM Block H30×W44×L79mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 20VM | Height M: 30 mm | Width W: 44 mm | Length L: 79 mm | Max Rail Length: 1480 mm | Dynamic Load C: 22.3 kN | Static Load C0: 38.4 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-20LV | SHS 20LV LM Block H30×W44×L98mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 20LV | Height M: 30 mm | Width W: 44 mm | Length L: 98 mm | Max Rail Length: 3000 mm | Dynamic Load C: 28.1 kN | Static Load C0: 50.3 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-20LVM | SHS 20LVM LM Block H30×W44×L98mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 20LVM | Height M: 30 mm | Width W: 44 mm | Length L: 98 mm | Max Rail Length: 1480 mm | Dynamic Load C: 28.1 kN | Static Load C0: 50.3 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-25V | SHS 25V LM Block H36×W48×L92mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 25V | Height M: 36 mm | Width W: 48 mm | Length L: 92 mm | Max Rail Length: 3000 mm | Dynamic Load C: 31.7 kN | Static Load C0: 52.4 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-25VM | SHS 25VM LM Block H36×W48×L92mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 25VM | Height M: 36 mm | Width W: 48 mm | Length L: 92 mm | Max Rail Length: 2020 mm | Dynamic Load C: 31.7 kN | Static Load C0: 52.4 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-25LV | SHS 25LV LM Block H36×W48×L109mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 25LV | Height M: 36 mm | Width W: 48 mm | Length L: 109 mm | Max Rail Length: 3000 mm | Dynamic Load C: 36.8 kN | Static Load C0: 64.7 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-25LVM | SHS 25LVM LM Block H36×W48×L109mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 25LVM | Height M: 36 mm | Width W: 48 mm | Length L: 109 mm | Max Rail Length: 2020 mm | Dynamic Load C: 36.8 kN | Static Load C0: 64.7 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-30V | SHS 30V LM Block H42×W60×L106mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 30V | Height M: 42 mm | Width W: 60 mm | Length L: 106 mm | Max Rail Length: 3000 mm | Dynamic Load C: 44.8 kN | Static Load C0: 66.6 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-30LV | SHS 30LV LM Block H42×W60×L131mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 30LV | Height M: 42 mm | Width W: 60 mm | Length L: 131 mm | Max Rail Length: 3000 mm | Dynamic Load C: 54.2 kN | Static Load C0: 88.8 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-35V | SHS 35V LM Block H48×W70×L122mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 35V | Height M: 48 mm | Width W: 70 mm | Length L: 122 mm | Max Rail Length: 3000 mm | Dynamic Load C: 62.3 kN | Static Load C0: 96.6 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-35LV | SHS 35LV LM Block H48×W70×L152mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 35LV | Height M: 48 mm | Width W: 70 mm | Length L: 152 mm | Max Rail Length: 3000 mm | Dynamic Load C: 72.9 kN | Static Load C0: 127 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-45V | SHS 45V LM Block H60×W86×L140mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 45V | Height M: 60 mm | Width W: 86 mm | Length L: 140 mm | Max Rail Length: 3090 mm | Dynamic Load C: 82.8 kN | Static Load C0: 126 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-45LV | SHS 45LV LM Block H60×W86×L174mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 45LV | Height M: 60 mm | Width W: 86 mm | Length L: 174 mm | Max Rail Length: 3090 mm | Dynamic Load C: 100 kN | Static Load C0: 166 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-55V | SHS 55V LM Block H70×W100×L171mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 55V | Height M: 70 mm | Width W: 100 mm | Length L: 171 mm | Max Rail Length: 3060 mm | Dynamic Load C: 128 kN | Static Load C0: 197 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-55LV | SHS 55LV LM Block H70×W100×L213mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 55LV | Height M: 70 mm | Width W: 100 mm | Length L: 213 mm | Max Rail Length: 3060 mm | Dynamic Load C: 161 kN | Static Load C0: 259 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-65V | SHS 65V LM Block H90×W126×L221mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 65V | Height M: 90 mm | Width W: 126 mm | Length L: 221 mm | Max Rail Length: 3000 mm | Dynamic Load C: 205 kN | Static Load C0: 320 kN | Structure: Ball Retainer DF | Brand: THK | ||
| SHS-65LV | SHS 65LV LM Block H90×W126×L272mm | THK | Type: LM Guide Block | Series: SHS | Block Type: 65LV | Height M: 90 mm | Width W: 126 mm | Length L: 272 mm | Max Rail Length: 3000 mm | Dynamic Load C: 253 kN | Static Load C0: 408 kN | Structure: Ball Retainer DF | Brand: THK |
