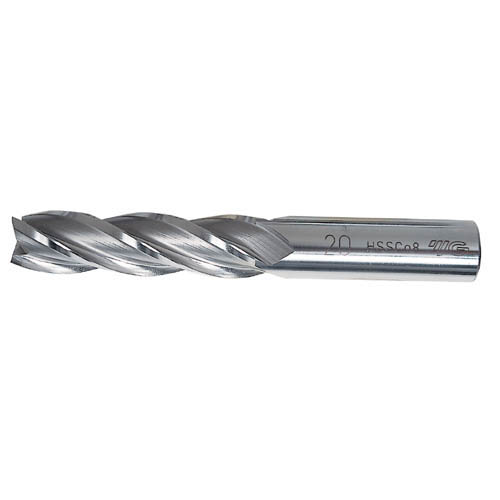

[YG-1] — E2659020K End Mill HSS Long End Mill
End Mills YG-1

[YG-1] — E2659020K End Mill HSS Long End Mill

Family ID: 301-4943

HSS Long End Mill from YG-1, sourced from Korea.

34 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
301-4943 E2659020K YG-1 4F-2*6*10*60MM(E2659020K) | Spec: 2 | Flute Length: 10 | Overall Length: 60 | Shank d: 6
301-4952 E2659030K YG-1 4F-3*6*15*60MM(E2659030K) | Spec: 3 | Flute Length: 15 | Overall Length: 60 | Shank Diameter: 6
301-4961 E2659040K YG-1 4F-4*8*20*70MM(E2659040K) | Spec: 4 | Flute Length: 20 | Overall Length: 70 | Shank Diameter: 8
301-4970 E2659050K YG-1 4F-5*8*25*75MM(E2659050K) | Spec: 5 | Flute Length: 25 | Overall Length: 75 | Shank Diameter: 8
301-4989 E2659060K YG-1 4F-6*8*25*75MM(E2659060K) | Spec: 6 | Flute Length: 25 | Overall Length: 75 | Shank Diameter: 8
301-4998 E2659070K YG-1 4F-7*10*35*90MM(E2659070K) | Spec: 7 | Flute Length: 35 | Overall Length: 90 | Shank Diameter: 10
301-5003 E2659080K YG-1 4F-8*10*35*90MM(E2659080K) | Spec: 8 | Flute Length: 35 | Overall Length: 90 | Shank Diameter: 10
301-5012 E2659090K YG-1 4F-9*10*45*100MM(E2659090K) | Spec: 9 | Flute Length: 45 | Overall Length: 100 | Shank Diameter: 10
301-5021 E2659100K YG-1 4F-10*10*45*100MM(E2659100K) | Spec: 10 | Flute Length: 45 | Overall Length: 100 | Shank Diameter: 10
301-5030 E2659110K YG-1 4F-11*12*55*115MM(E2659110K) | Spec: 11 | Flute Length: 55 | Overall Length: 115 | Shank d: 12
301-5049 E2659120K YG-1 4F-12*12*55*115MM(E2659120K) | Spec: 12 | Flute Length: 55 | Overall Length: 115 | Shank Diameter: 12
301-5058 E2659130K YG-1 4F-13*12*55*115MM(E2659130K) | Spec: 13 | Flute Length: 55 | Overall Length: 115 | Shank Diameter: 12
301-5067 E2659140K YG-1 4F-14*16*55*120MM(E2659140K) | Spec: 14 | Flute Length: 55 | Overall Length: 120 | Shank Diameter: 16
301-5076 E2659150K YG-1 4F-15*16*65*130MM(E2659150K) | Spec: 15 | Flute Length: 65 | Overall Length: 130 | Shank Diameter: 16
301-5085 E2659160K YG-1 4F-16*16*65*130MM(E2659160K) | Spec: 16 | Flute Length: 65 | Overall Length: 130 | Shank Diameter: 16
301-5094 E2659170K YG-1 4F-17*16*65*130MM(E2659170K) | Spec: 17 | Flute Length: 65 | Overall Length: 130 | Shank d: 16
301-5100 E2659180K YG-1 4F-18*16*65*130MM(E2659180K) | Spec: 18 | Flute Length: 65 | Overall Length: 130 | Shank d: 16
301-5119 E2659190K YG-1 4F-19*20*75*145MM(E2659190K) | Spec: 19 | Flute Length: 75 | Overall Length: 145 | Shank Diameter: 20
301-5128 E2659200K YG-1 4F-20*20*75*145MM(E2659200K) | Spec: 20 | Flute Length: 75 | Overall Length: 145 | Shank Diameter: 20
301-5137 E2659210K YG-1 4F-21*20*75*145MM(E2659210K) | Spec: 21 | Flute Length: 75 | Overall Length: 145 | Shank d: 20
301-5146 E2659220K YG-1 4F-22*20*75*145MM(E2659220K) | Spec: 22 | Flute Length: 75 | Overall Length: 145 | Shank d: 20
301-5155 E2659230K YG-1 4F-23*25*90*165MM(E2659230K) | Spec: 23 | Flute Length: 90 | Overall Length: 165 | Shank Diameter: 25
301-5164 E2659240K YG-1 4F-24*25*90*165MM(E2659240K) | Spec: 24 | Flute Length: 90 | Overall Length: 165 | Shank Diameter: 25
301-5173 E2659250K YG-1 4F-25*25*90*165MM(E2659250K) | Spec: 25 | Flute Length: 90 | Overall Length: 165 | Shank Diameter: 25
301-5182 E2659260K YG-1 4F-26*25*90*165MM(E2659260K) | Spec: 26 | Flute Length: 90 | Overall Length: 165 | Shank Diameter: 25
301-5191 E2659270K YG-1 4F-27*25*90*165MM(E2659270K) | Spec: 27 | Flute Length: 90 | Overall Length: 165 | Shank d: 25
301-5207 E2659280K YG-1 4F-28*25*90*165MM(E2659280K) | Spec: 28 | Flute Length: 90 | Overall Length: 165 | Shank d: 25
301-5225 E2659300K YG-1 4F-30*25*90*165MM(E2659300K) | Spec: 30 | Flute Length: 90 | Overall Length: 165 | Shank Diameter: 25
301-5243 E2659320K YG-1 4F-32*32*95*180MM(E2659320K) | Spec: 32 | Flute Length: 95 | Overall Length: 180 | Shank Diameter: 32
301-5261 E2659340K YG-1 4F-34*32*100*185MM(E2659340K) | Spec: 34 | Flute Length: 100 | Overall Length: 185 | Shank Diameter: 32
301-5270 E2659350K YG-1 4F-35*32*100*185MM(E2659350K) | Spec: 35 | Flute Length: 100 | Overall Length: 185 | Shank Diameter: 32
301-5304 E2659380K YG-1 4F-38*32*105*190MM(E2659380K) | Spec: 38 | Flute Length: 105 | Overall Length: 190 | Shank Diameter: 32
301-5322 E2659400K YG-1 4F-40*32*110*195MM(E2659400K) | Spec: 40 | Flute Length: 110 | Overall Length: 195 | Shank Diameter: 32
301-5429 E2659500K YG-1 4F-50*42*125*215MM(E2659500K) | Spec: 50 | Flute Length: 125 | Overall Length: 215 | Shank Diameter: 42
