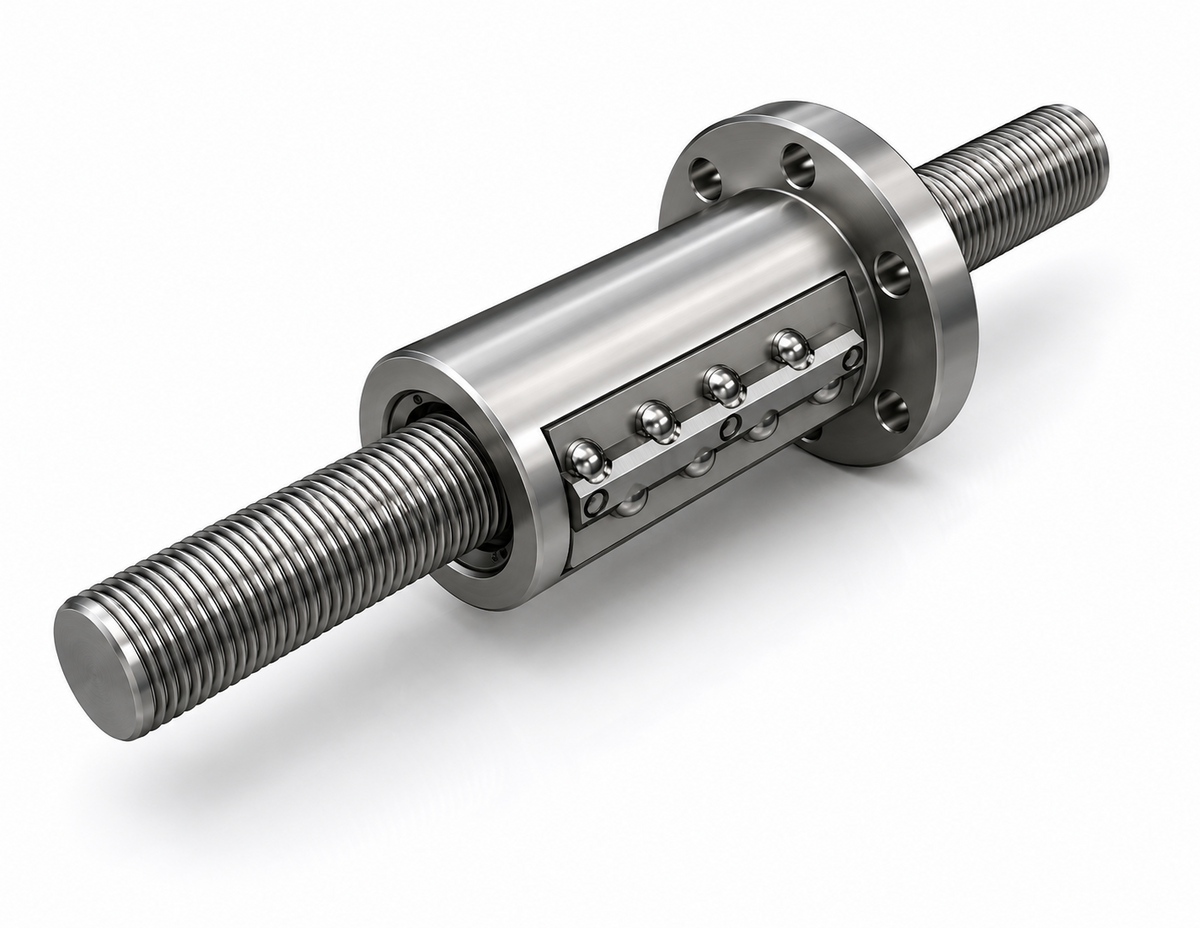

THK BIF3610V-10 Ball Screw Nut Unit (Medium, Shaft φ36, Lead 10mm)

THK BIF3610V-10 Ball Screw Nut Unit (Medium, Shaft φ36, Lead 10mm)

THK BIF-V Series Precision Ground Ball Screw Nut Unit (Medium type, preloaded).

Key features

  • Shaft diameter φ36mm, lead 10mm. 2×2.5 ball circuit
  • Unfinished shaft end (BIF-V type)
  • DN value 130,000
  • Flanged nut, basic dynamic load rating Ca=50.1kN, static C0a=126.5kN, rigidity K=1350N/μm

Specifications

Shaft Diameter φ36mm
Lead 10mm
Nut Length L1 171mm
Ball Circuit 2×2.5
Ca 50.1kN
C0a 126.5kN
K 1350N/μm
Nut OD D 75mm
Flange D1 120mm
Type Preloaded, Unfinished Shaft End
BIF3610V-10+930 THK BIF3610V-10, φ36 Lead10, L=930mm | Shaft Diameter: φ36mm | Lead: 10mm | Shaft Total Length L: 930mm | Nut Length L1: 171mm | Ball Circuit: 2×2.5 | Ca: 50.1kN | C0a: 126.5kN | K: 1350N/μm | Nut OD D: 75mm | Flange D1: 120mm | Type: Preloaded, Unfinished Shaft End
BIF3610V-10+1830 THK BIF3610V-10, φ36 Lead10, L=1830mm | Shaft Diameter: φ36mm | Lead: 10mm | Shaft Total Length L: 1830mm | Nut Length L1: 171mm | Ball Circuit: 2×2.5 | Ca: 50.1kN | C0a: 126.5kN | K: 1350N/μm | Nut OD D: 75mm | Flange D1: 120mm | Type: Preloaded, Unfinished Shaft End
Ball ScrewsTHK
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK BIF3610V-10 Ball Screw Nut Unit (Medium, Shaft φ36, Lead 10mm)

Brand THK·Ball Screws

Available part numbers (2)

BIF3610V-10+930, BIF3610V-10+1830

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BIF3610V-10+930THK BIF3610V-10, φ36 Lead10, L=930mm | Shaft Diameter: φ36mm | Lead: 10mm | Shaft Total Length L: 930mm | Nut Length L1: 171mm | Ball Circuit: 2×2.5 | Ca: 50.1kN | C0a: 126.5kN | K: 1350N/μm | Nut OD D: 75mm | Flange D1: 120mm | Type: Preloaded, Unfinished Shaft End
BIF3610V-10+1830THK BIF3610V-10, φ36 Lead10, L=1830mm | Shaft Diameter: φ36mm | Lead: 10mm | Shaft Total Length L: 1830mm | Nut Length L1: 171mm | Ball Circuit: 2×2.5 | Ca: 50.1kN | C0a: 126.5kN | K: 1350N/μm | Nut OD D: 75mm | Flange D1: 120mm | Type: Preloaded, Unfinished Shaft End
