WON ST Track Roller Guide TRI Series, Inside Type - Long

WON ST Track Roller Guide TRI Series, Inside Type - Long

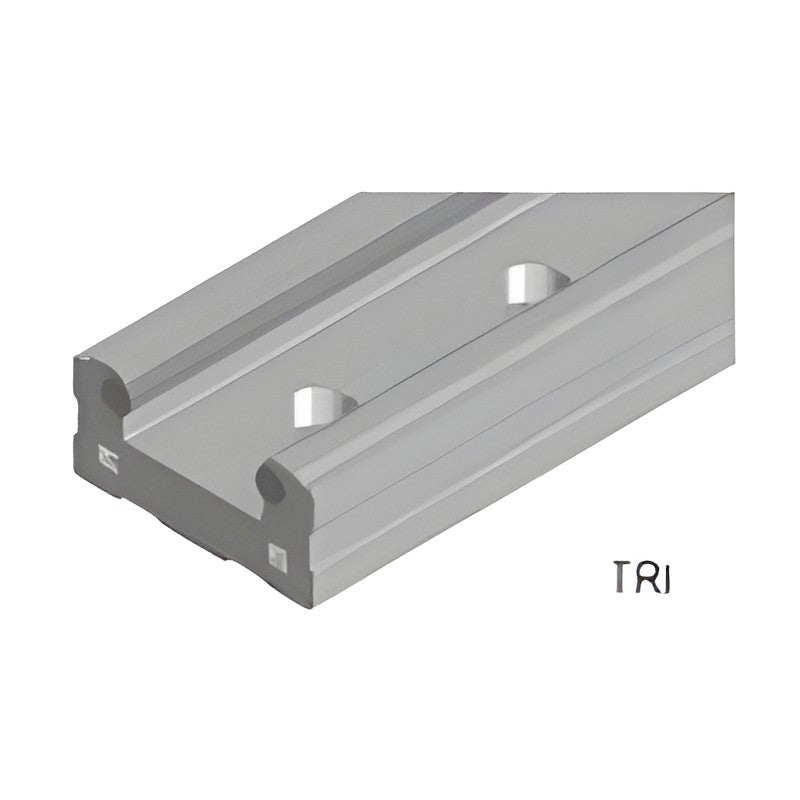

Inside-type track roller guide (TRI) in which the roller block runs inside a U-shaped aluminum rail with inserted heat-treated shafts; available with fixture or clearance adjustable block and optional end seals.

Key features

  • Roller block runs inside the guide rail
  • Fixture block (B) or clearance adjustable block (BC)
  • Optional end seals (UU)
  • Four-direction load capacity via angular contact ball bearing rollers
  • Operating temperature -20 to 80 C

Specifications

Block types Fixture block (B) / Clearance adjustable block (BC)
Max. rail length 6000 mm
TRI15L Rail width W: 34 mm | Height H: 24 mm | Block length L: 79.4 mm | L1: 76.6 mm | Rail shaft dia. ds: 4 mm | Cy: 1860 N | Coy: 1600 N | Cz: 870 N | Coz: 760 N | Mx: 8.3 N·m | My: 23.2 N·m | Mz: 49.9 N·m
TRI20L Rail width W: 42 mm | Height H: 28 mm | Block length L: 98 mm | L1: 95.2 mm | Rail shaft dia. ds: 4 mm | Cy: 1860 N | Coy: 1600 N | Cz: 870 N | Coz: 760 N | Mx: 10.5 N·m | My: 28.7 N·m | Mz: 61.6 N·m
TRI25L Rail width W: 48 mm | Height H: 33 mm | Block length L: 109 mm | L1: 106.2 mm | Rail shaft dia. ds: 6 mm | Cy: 5960 N | Coy: 4560 N | Cz: 2850 N | Coz: 2200 N | Mx: 44.2 N·m | My: 106 N·m | Mz: 223 N·m
TRI30L Rail width W: 60 mm | Height H: 42 mm | Block length L: 131 mm | L1: 128.2 mm | Rail shaft dia. ds: 6 mm | Cy: 5960 N | Coy: 4560 N | Cz: 2850 N | Coz: 2200 N | Mx: 51.3 N·m | My: 124 N·m | Mz: 259 N·m
TRI35L Rail width W: 70 mm | Height H: 48 mm | Block length L: 152 mm | L1: 149.2 mm | Rail shaft dia. ds: 10 mm | Cy: 13900 N | Coy: 10200 N | Cz: 6620 N | Coz: 4920 N | Mx: 149 N·m | My: 357 N·m | Mz: 752 N·m
TRI45L Rail width W: 86 mm | Height H: 60 mm | Block length L: 174 mm | L1: 171.2 mm | Rail shaft dia. ds: 10 mm | Cy: 13900 N | Coy: 10200 N | Cz: 6620 N | Coz: 4920 N | Mx: 165 N·m | My: 397 N·m | Mz: 836 N·m
TRI55L Rail width W: 100 mm | Height H: 68 mm | Block length L: 213 mm | L1: 210.2 mm | Rail shaft dia. ds: 12 mm | Cy: 13900 N | Coy: 10200 N | Cz: 6620 N | Coz: 4920 N | Mx: 198 N·m | My: 486 N·m | Mz: 1024 N·m
Track Roller GuidesWON ST
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WON ST Track Roller Guide TRI Series, Inside Type - Long

Brand WON ST·Track Roller Guides

Available part numbers (7)

TRI15L, TRI20L, TRI25L, TRI30L, TRI35L, TRI45L, TRI55L

How to order

Send the WON ST part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TRI15LRail width W: 34 mm | Height H: 24 mm | Block length L: 79.4 mm | L1: 76.6 mm | Rail shaft dia. ds: 4 mm | Cy: 1860 N | Coy: 1600 N | Cz: 870 N | Coz: 760 N | Mx: 8.3 N·m | My: 23.2 N·m | Mz: 49.9 N·m
TRI20LRail width W: 42 mm | Height H: 28 mm | Block length L: 98 mm | L1: 95.2 mm | Rail shaft dia. ds: 4 mm | Cy: 1860 N | Coy: 1600 N | Cz: 870 N | Coz: 760 N | Mx: 10.5 N·m | My: 28.7 N·m | Mz: 61.6 N·m
TRI25LRail width W: 48 mm | Height H: 33 mm | Block length L: 109 mm | L1: 106.2 mm | Rail shaft dia. ds: 6 mm | Cy: 5960 N | Coy: 4560 N | Cz: 2850 N | Coz: 2200 N | Mx: 44.2 N·m | My: 106 N·m | Mz: 223 N·m
TRI30LRail width W: 60 mm | Height H: 42 mm | Block length L: 131 mm | L1: 128.2 mm | Rail shaft dia. ds: 6 mm | Cy: 5960 N | Coy: 4560 N | Cz: 2850 N | Coz: 2200 N | Mx: 51.3 N·m | My: 124 N·m | Mz: 259 N·m
TRI35LRail width W: 70 mm | Height H: 48 mm | Block length L: 152 mm | L1: 149.2 mm | Rail shaft dia. ds: 10 mm | Cy: 13900 N | Coy: 10200 N | Cz: 6620 N | Coz: 4920 N | Mx: 149 N·m | My: 357 N·m | Mz: 752 N·m
TRI45LRail width W: 86 mm | Height H: 60 mm | Block length L: 174 mm | L1: 171.2 mm | Rail shaft dia. ds: 10 mm | Cy: 13900 N | Coy: 10200 N | Cz: 6620 N | Coz: 4920 N | Mx: 165 N·m | My: 397 N·m | Mz: 836 N·m
TRI55LRail width W: 100 mm | Height H: 68 mm | Block length L: 213 mm | L1: 210.2 mm | Rail shaft dia. ds: 12 mm | Cy: 13900 N | Coy: 10200 N | Cz: 6620 N | Coz: 4920 N | Mx: 198 N·m | My: 486 N·m | Mz: 1024 N·m
