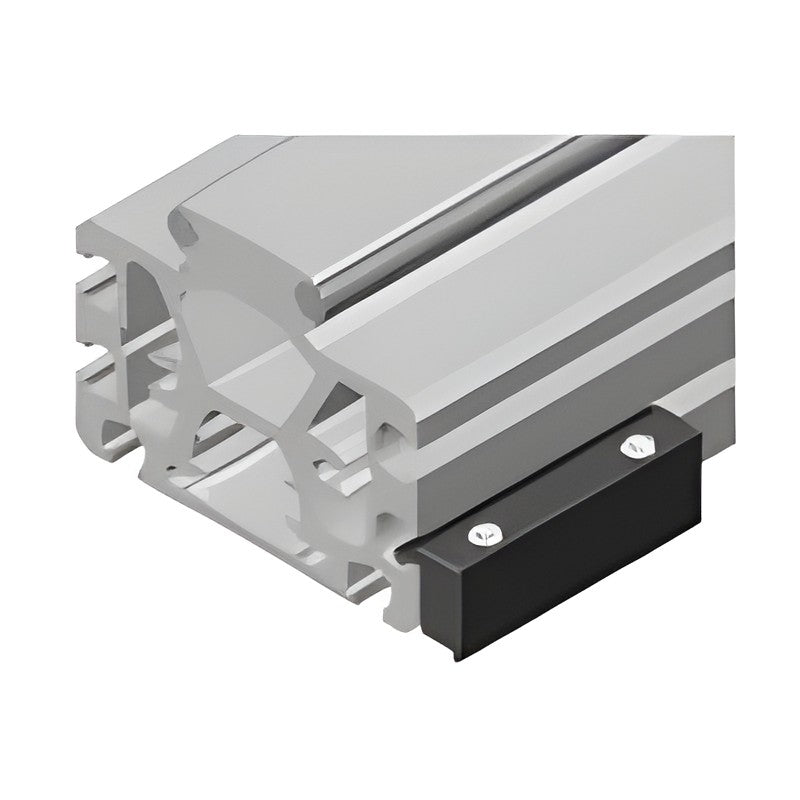

Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| B20-1 | A: 20 mm | B: 7 mm | H: 23.5 mm | Length L: 40 mm | Bolt hole d x D: 6.6 x 11 mm | h: 17 mm | E: 7.5 mm | Hole pitch F x n: 25 x 1 | G: 7.5 mm | ||
| B20-2 | A: 20 mm | B: 7 mm | H: 23.5 mm | Length L: 65 mm | Bolt hole d x D: 6.6 x 11 mm | h: 17 mm | E: 7.5 mm | Hole pitch F x n: 25 x 2 | G: 7.5 mm | ||
| B25-1 | A: 28 mm | B: 10 mm | H: 27 mm | Length L: 47.5 mm | Bolt hole d x D: 6.6 x 11 mm | h: 20.5 mm | E: 9 mm | Hole pitch F x n: 32.5 x 1 | G: 7.5 mm | ||
| B25-2 | A: 28 mm | B: 10 mm | H: 27 mm | Length L: 80 mm | Bolt hole d x D: 6.6 x 11 mm | h: 20.5 mm | E: 9 mm | Hole pitch F x n: 32.5 x 2 | G: 7.5 mm | ||
| B52-1 | A: 30 mm | B: 11.5 mm | H: 27 mm | Length L: 70 mm | Bolt hole d x D: 9 x 14 mm | h: 18.5 mm | E: 9.5 mm | Hole pitch F x n: 55 x 1 | G: 7.5 mm | ||
| B52-2 | A: 30 mm | B: 11.5 mm | H: 27 mm | Length L: 125 mm | Bolt hole d x D: 9 x 14 mm | h: 18.5 mm | E: 9.5 mm | Hole pitch F x n: 55 x 2 | G: 7.5 mm |
Need a different model, or a part not listed here? Send us your parts list →
