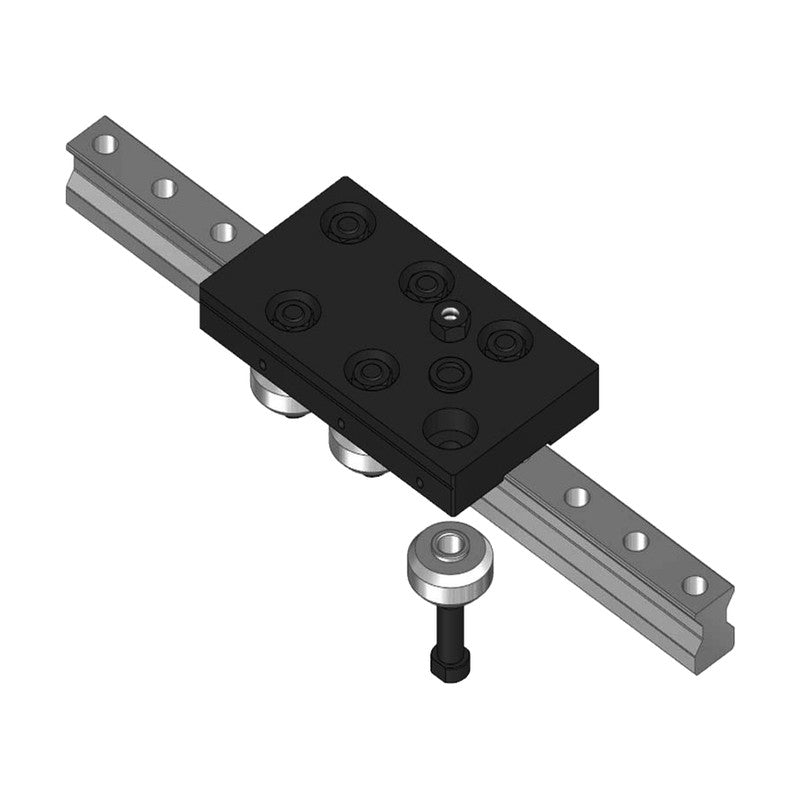

Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| VG20-4R | Height H: 34.1 mm | Width W: 70 mm | Length L: 71 mm | Rail width W1: 20 mm | Roller count: 4 | Cy: 7960 N | Coy: 5000 N | Cz: 3747 N | Coz: 2400 N | Mx: 29.9 N·m | My: 179.9 N·m | Mz: 382.1 N·m | ||
| VG20-6R | Height H: 34.1 mm | Width W: 70 mm | Length L: 103 mm | Rail width W1: 20 mm | Roller count: 6 | Cy: 10573 N | Coy: 7500 N | Cz: 4977 N | Coz: 3600 N | Mx: 39.7 N·m | My: 238.9 N·m | Mz: 507.5 N·m | ||
| VG20-8R | Height H: 34.1 mm | Width W: 70 mm | Length L: 135 mm | Rail width W1: 20 mm | Roller count: 8 | Cy: 12931 N | Coy: 10000 N | Cz: 6088 N | Coz: 4800 N | Mx: 48.6 N·m | My: 414.0 N·m | Mz: 879.3 N·m |
Need a different model, or a part not listed here? Send us your parts list →
Related products
All Linear Motion & Bearings →-
WON STWON ST V Guide VGT20, Tilt Type1 model -
WON STWON ST Bracket B Series for TC Track Roller Guide Rail6 models -
WON STWON ST Track Roller Guide TRI Series, Inside Type - Long7 models -
WON STWON ST Cap Seal S Series for Track Rollers3 models -
WON STWON ST Track Roller Guide TRI Series, Inside Type - Standard7 models -

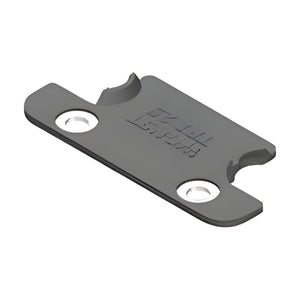

WON STWON ST End Seal T Series for TRI Track Roller Guide7 models
