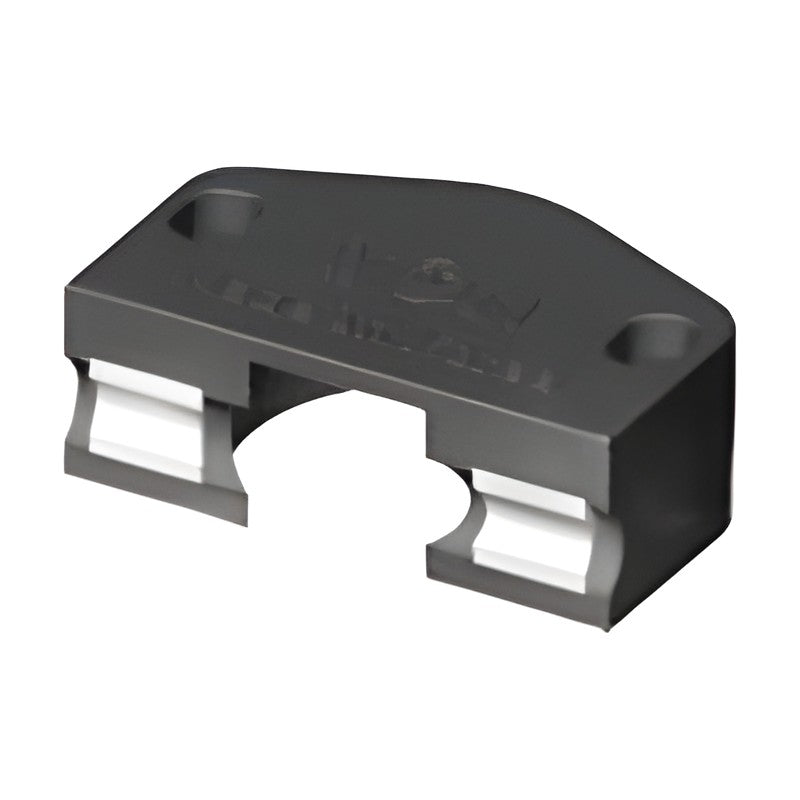

Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| S04 | A: 38 mm | A1: 30 mm | B: 12 mm | H: 20 mm | H1: 8 mm | C: 10 mm | Mounting slot S: 3.2 x 6 x 3.5 mm | Applied roller: RF/RA04 | ||
| S06 | A: 45 mm | A1: 36 mm | B: 16 mm | H: 28 mm | H1: 12 mm | C: 14 mm | Mounting slot S: 3.2 x 6 x 3.5 mm | Applied roller: RF/RA06 | ||
| S10 | A: 60 mm | A1: 50 mm | B: 22 mm | H: 39 mm | H1: 17.5 mm | C: 19.5 mm | Mounting slot S: 3.2 x 6 x 3.5 mm | Applied roller: RF/RA10 |
Need a different model, or a part not listed here? Send us your parts list →
