WON ST Track Roller Guide TRI Series, Inside Type - Standard

WON ST Track Roller Guide TRI Series, Inside Type - Standard

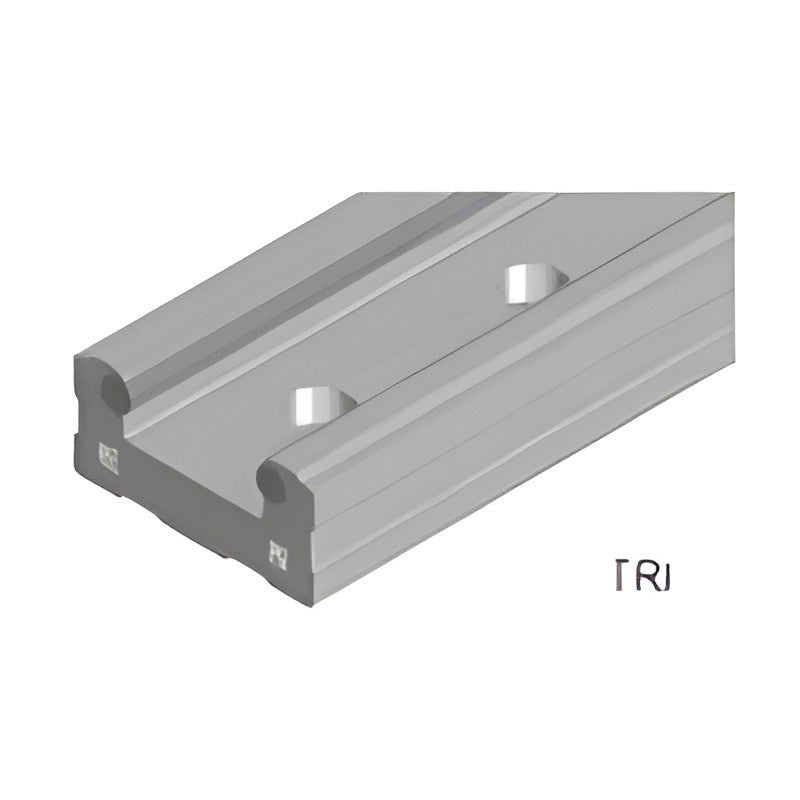

Inside-type track roller guide (TRI) in which the roller block runs inside a U-shaped aluminum rail with inserted heat-treated shafts; available with fixture or clearance adjustable block and optional end seals.

Key features

  • Roller block runs inside the guide rail
  • Fixture block (B) or clearance adjustable block (BC)
  • Optional end seals (UU)
  • Four-direction load capacity via angular contact ball bearing rollers
  • Operating temperature -20 to 80 C

Specifications

Block types Fixture block (B) / Clearance adjustable block (BC)
Max. rail length 6000 mm
TRI15 Rail width W: 34 mm | Height H: 24 mm | Block length L: 57 mm | L1: 54.2 mm | Rail shaft dia. ds: 4 mm | Cy: 1860 N | Coy: 1600 N | Cz: 710 N | Coz: 570 N | Mx: 8.3 N·m | My: 12.1 N·m | Mz: 31.8 N·m
TRI20 Rail width W: 42 mm | Height H: 28 mm | Block length L: 66.2 mm | L1: 63.4 mm | Rail shaft dia. ds: 4 mm | Cy: 1860 N | Coy: 1600 N | Cz: 710 N | Coz: 570 N | Mx: 8.5 N·m | My: 12.8 N·m | Mz: 33.6 N·m
TRI25 Rail width W: 48 mm | Height H: 33 mm | Block length L: 83 mm | L1: 80.2 mm | Rail shaft dia. ds: 6 mm | Cy: 5960 N | Coy: 4560 N | Cz: 2330 N | Coz: 1650 N | Mx: 36.1 N·m | My: 58.3 N·m | Mz: 149 N·m
TRI30 Rail width W: 60 mm | Height H: 42 mm | Block length L: 96.8 mm | L1: 94 mm | Rail shaft dia. ds: 6 mm | Cy: 5960 N | Coy: 4560 N | Cz: 2330 N | Coz: 1650 N | Mx: 41.9 N·m | My: 62.9 N·m | Mz: 161 N·m
TRI35 Rail width W: 70 mm | Height H: 48 mm | Block length L: 117 mm | L1: 114.2 mm | Rail shaft dia. ds: 10 mm | Cy: 13900 N | Coy: 10200 N | Cz: 5410 N | Coz: 3690 N | Mx: 121 N·m | My: 195 N·m | Mz: 501 N·m
TRI45 Rail width W: 86 mm | Height H: 60 mm | Block length L: 126 mm | L1: 123.2 mm | Rail shaft dia. ds: 10 mm | Cy: 13900 N | Coy: 10200 N | Cz: 5410 N | Coz: 3690 N | Mx: 135 N·m | My: 200 N·m | Mz: 515 N·m
TRI55 Rail width W: 100 mm | Height H: 68 mm | Block length L: 156 mm | L1: 153.2 mm | Rail shaft dia. ds: 12 mm | Cy: 13900 N | Coy: 10200 N | Cz: 5410 N | Coz: 3690 N | Mx: 162 N·m | My: 243 N·m | Mz: 627 N·m
Track Roller GuidesWON ST
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WON ST Track Roller Guide TRI Series, Inside Type - Standard

Brand WON ST·Track Roller Guides

Available part numbers (7)

TRI15, TRI20, TRI25, TRI30, TRI35, TRI45, TRI55

How to order

Send the WON ST part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TRI15Rail width W: 34 mm | Height H: 24 mm | Block length L: 57 mm | L1: 54.2 mm | Rail shaft dia. ds: 4 mm | Cy: 1860 N | Coy: 1600 N | Cz: 710 N | Coz: 570 N | Mx: 8.3 N·m | My: 12.1 N·m | Mz: 31.8 N·m
TRI20Rail width W: 42 mm | Height H: 28 mm | Block length L: 66.2 mm | L1: 63.4 mm | Rail shaft dia. ds: 4 mm | Cy: 1860 N | Coy: 1600 N | Cz: 710 N | Coz: 570 N | Mx: 8.5 N·m | My: 12.8 N·m | Mz: 33.6 N·m
TRI25Rail width W: 48 mm | Height H: 33 mm | Block length L: 83 mm | L1: 80.2 mm | Rail shaft dia. ds: 6 mm | Cy: 5960 N | Coy: 4560 N | Cz: 2330 N | Coz: 1650 N | Mx: 36.1 N·m | My: 58.3 N·m | Mz: 149 N·m
TRI30Rail width W: 60 mm | Height H: 42 mm | Block length L: 96.8 mm | L1: 94 mm | Rail shaft dia. ds: 6 mm | Cy: 5960 N | Coy: 4560 N | Cz: 2330 N | Coz: 1650 N | Mx: 41.9 N·m | My: 62.9 N·m | Mz: 161 N·m
TRI35Rail width W: 70 mm | Height H: 48 mm | Block length L: 117 mm | L1: 114.2 mm | Rail shaft dia. ds: 10 mm | Cy: 13900 N | Coy: 10200 N | Cz: 5410 N | Coz: 3690 N | Mx: 121 N·m | My: 195 N·m | Mz: 501 N·m
TRI45Rail width W: 86 mm | Height H: 60 mm | Block length L: 126 mm | L1: 123.2 mm | Rail shaft dia. ds: 10 mm | Cy: 13900 N | Coy: 10200 N | Cz: 5410 N | Coz: 3690 N | Mx: 135 N·m | My: 200 N·m | Mz: 515 N·m
TRI55Rail width W: 100 mm | Height H: 68 mm | Block length L: 156 mm | L1: 153.2 mm | Rail shaft dia. ds: 12 mm | Cy: 13900 N | Coy: 10200 N | Cz: 5410 N | Coz: 3690 N | Mx: 162 N·m | My: 243 N·m | Mz: 627 N·m
