Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|

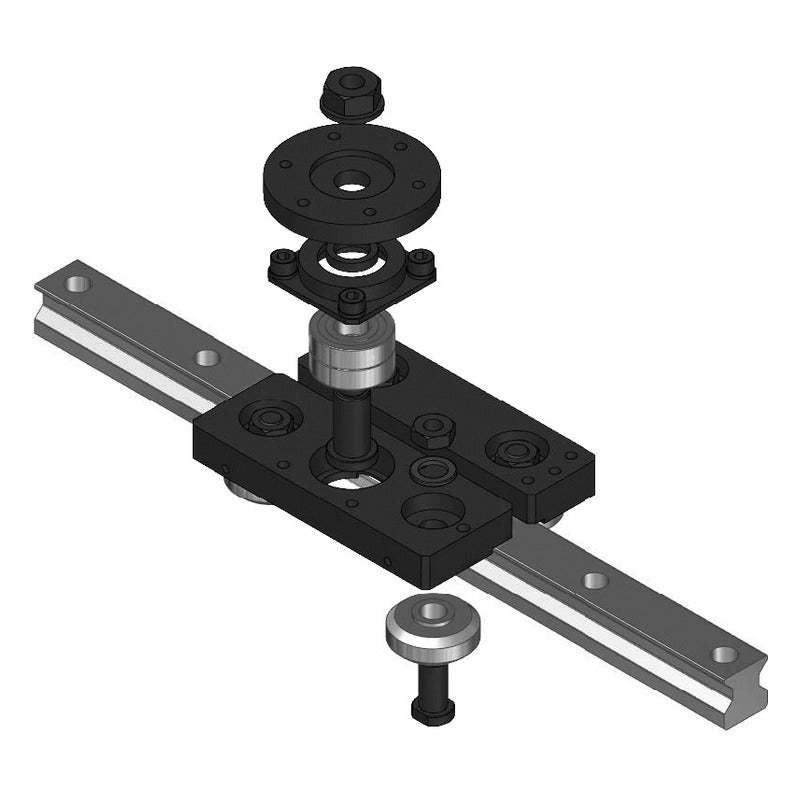

| VGT20 | Height H: 34.1 mm | Length L: 110 mm | Overall width W4: 88.9 mm | H2: 50.6 mm | Alignment plate dia. D: 58 mm | Rail width W1: 20 mm | Rail hole pitch P: 60 mm | Cy: 7960 N | Coy: 5000 N | Cz: 3747 N | Coz: 2400 N | Mz: 382.1 N·m |
Need a different model, or a part not listed here? Send us your parts list →
Related products
All Linear Motion & Bearings →-
WON STWON ST Bracket B Series for TC Track Roller Guide Rail6 models -
WON STWON ST Track Roller Guide TRI Series, Inside Type - Long7 models -
WON STWON ST V Guide VG20 Series3 models -
WON STWON ST Cap Seal S Series for Track Rollers3 models -
WON STWON ST Track Roller Guide TRI Series, Inside Type - Standard7 models -

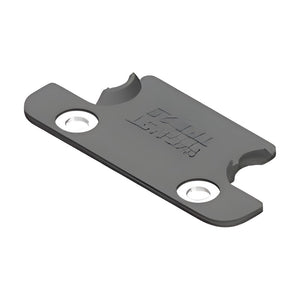

WON STWON ST End Seal T Series for TRI Track Roller Guide7 models
