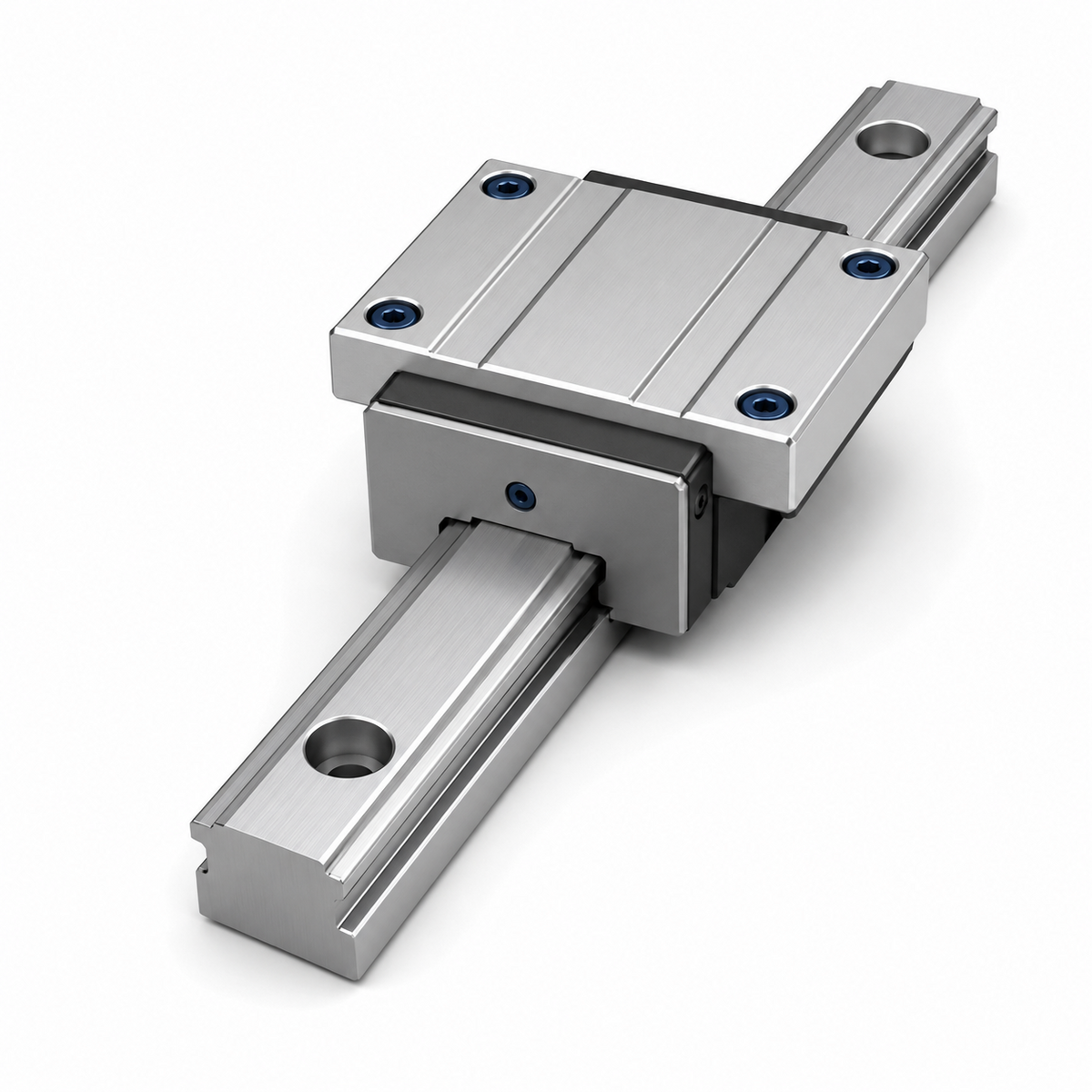

THK SVR-CH/LCH LM Guide Block (Heavy Load, High Flange Type, Radial, Ball Retainer)

THK SVR-CH/LCH LM Guide Block (Heavy Load, High Flange Type, Radial, Ball Retainer)

Heavy load Ball Retainer Type LM Guide for machine tools.

Key features

  • Height (M) and width (W) same as SHS/HSR type
  • Flange type — mountable from top or bottom
  • Circular Arc groove structure for high load capacity and improved damping
  • SVR = radial type
  • CH = high profile flange variant

Specifications

Type LM Guide Block
Series SVR
Mount Top or Bottom (Flange)
Structure Circular Arc Ball Retainer
Load Type Radial
Profile High Flange (same dims as SHS/HSR)
Brand THK
SVR-35CH SVR 35CH LM Block H48×W100×L109.5mm | Type: LM Guide Block | Series: SVR | Block Type: 35CH | Height M: 48 mm | Width W: 100 mm | Length L: 109.5 mm | Max Rail Length: 3000 mm | Dynamic Load C: 89.6 kN | Static Load C0: 116 kN | Mount: Top or Bottom (Flange) | Structure: Circular Arc Ball Retainer | Load Type: Radial | Profile: High Flange (same dims as SHS/HSR) | Brand: THK
SVR-35LCH SVR 35LCH LM Block H48×W100×L135mm | Type: LM Guide Block | Series: SVR | Block Type: 35LCH | Height M: 48 mm | Width W: 100 mm | Length L: 135 mm | Max Rail Length: 3090 mm | Dynamic Load C: 112 kN | Static Load C0: 160 kN | Mount: Top or Bottom (Flange) | Structure: Circular Arc Ball Retainer | Load Type: Radial | Profile: High Flange (same dims as SHS/HSR) | Brand: THK
SVR-45CH SVR 45CH LM Block H60×W120×L138.2mm | Type: LM Guide Block | Series: SVR | Block Type: 45CH | Height M: 60 mm | Width W: 120 mm | Length L: 138.2 mm | Max Rail Length: 3000 mm | Dynamic Load C: 138 kN | Static Load C0: 186 kN | Mount: Top or Bottom (Flange) | Structure: Circular Arc Ball Retainer | Load Type: Radial | Profile: High Flange (same dims as SHS/HSR) | Brand: THK
SVR-45LCH SVR 45LCH LM Block H60×W120×L171mm | Type: LM Guide Block | Series: SVR | Block Type: 45LCH | Height M: 60 mm | Width W: 120 mm | Length L: 171 mm | Max Rail Length: 3060 mm | Dynamic Load C: 161 kN | Static Load C0: 233 kN | Mount: Top or Bottom (Flange) | Structure: Circular Arc Ball Retainer | Load Type: Radial | Profile: High Flange (same dims as SHS/HSR) | Brand: THK
SVR-55CH SVR 55CH LM Block H70×W140×L163.3mm | Type: LM Guide Block | Series: SVR | Block Type: 55CH | Height M: 70 mm | Width W: 140 mm | Length L: 163.3 mm | Max Rail Length: 3090 mm | Dynamic Load C: 177 kN | Static Load C0: 235 kN | Mount: Top or Bottom (Flange) | Structure: Circular Arc Ball Retainer | Load Type: Radial | Profile: High Flange (same dims as SHS/HSR) | Brand: THK
SVR-55LCH SVR 55LCH LM Block H70×W140×L200.5mm | Type: LM Guide Block | Series: SVR | Block Type: 55LCH | Height M: 70 mm | Width W: 140 mm | Length L: 200.5 mm | Max Rail Length: 3060 mm | Dynamic Load C: 214 kN | Static Load C0: 309 kN | Mount: Top or Bottom (Flange) | Structure: Circular Arc Ball Retainer | Load Type: Radial | Profile: High Flange (same dims as SHS/HSR) | Brand: THK
