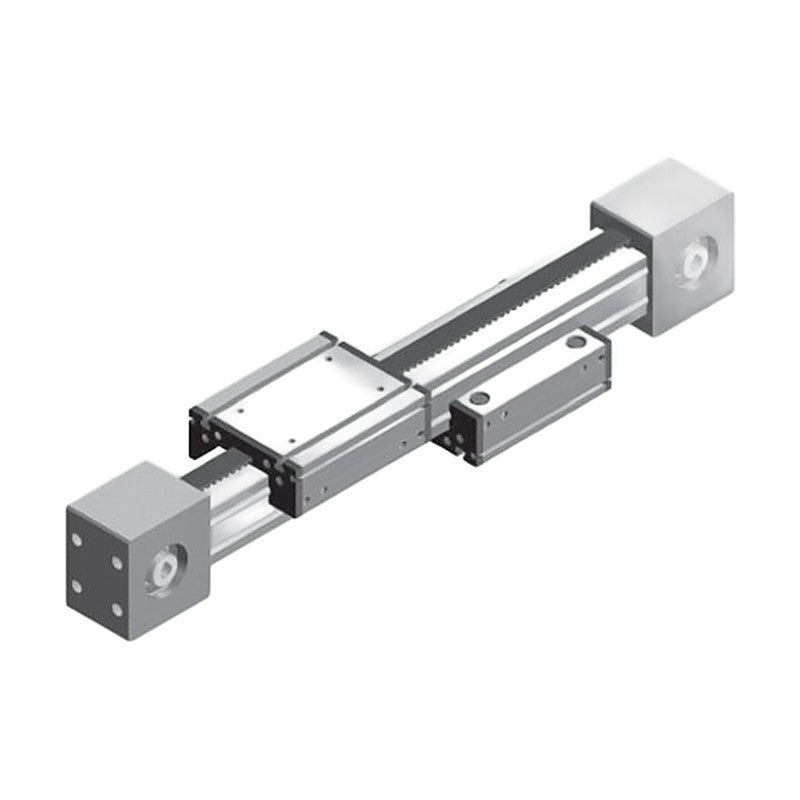

The MBT series is a belt driven linear actuator with a track roller guide in which two sliders are driven by one circulating timing belt.
Key features
- Because the sliders are attached to opposite sides of the belt, they always move in opposite directions
- It is offered in sizes 40, 60, 80 and 100 with strokes up to 5000 mm and a repeatability of +/-0.05 mm
- Stroke, slider type, pulley arrangement, colour and options are specified at order
Specifications
| Max speed | 2000 mm/s |
|---|---|
| Repeatability | +/-0.05 mm |
| Slider type | S: 4 rollers / H: S + 4 rollers |
| MBT40 | Stroke: 50-3500 mm | Max speed: 2000 mm/s | Max payload (horizontal): 15 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 47.74 mm | Travel per pulley rev: 150 mm/rev | Belt: RPP5 / W15 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 100-200 W | Gear ratio: 10 / 5 | Body size (W x H): 40 x 70 mm | Base weight: 2.7 kgf | Weight per 100 mm stroke: 0.3 kgf | |
| MBT60 | Stroke: 50-5000 mm | Max speed: 2000 mm/s | Max payload (horizontal): 15 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 70.3 mm | Travel per pulley rev: 220 mm/rev | Belt: RPP5 / W25 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 200-400 W | Gear ratio: 10 / 5 | Body size (W x H): 60 x 98 mm | Base weight: 7.3 kgf | Weight per 100 mm stroke: 0.5 kgf | |
| MBT80 | Stroke: 50-5000 mm | Max speed: 2000 mm/s | Max payload (horizontal): 40 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 101.86 mm | Travel per pulley rev: 320 mm/rev | Belt: RPP8 / W30 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 400 W | Gear ratio: 20 / 10 | Body size (W x H): 80 x 140 mm | Base weight: 15.9 kgf | Weight per 100 mm stroke: 0.8 kgf | |
| MBT100 | Stroke: 50-5000 mm | Max speed: 2000 mm/s | Max payload (horizontal): 80 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 122.23 mm | Travel per pulley rev: 384 mm/rev | Belt: RPP8 / W50 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 750 W | Gear ratio: 20 / 10 | Body size (W x H): 100 x 180 mm | Base weight: 36.0 kgf | Weight per 100 mm stroke: 1.4 kgf |
