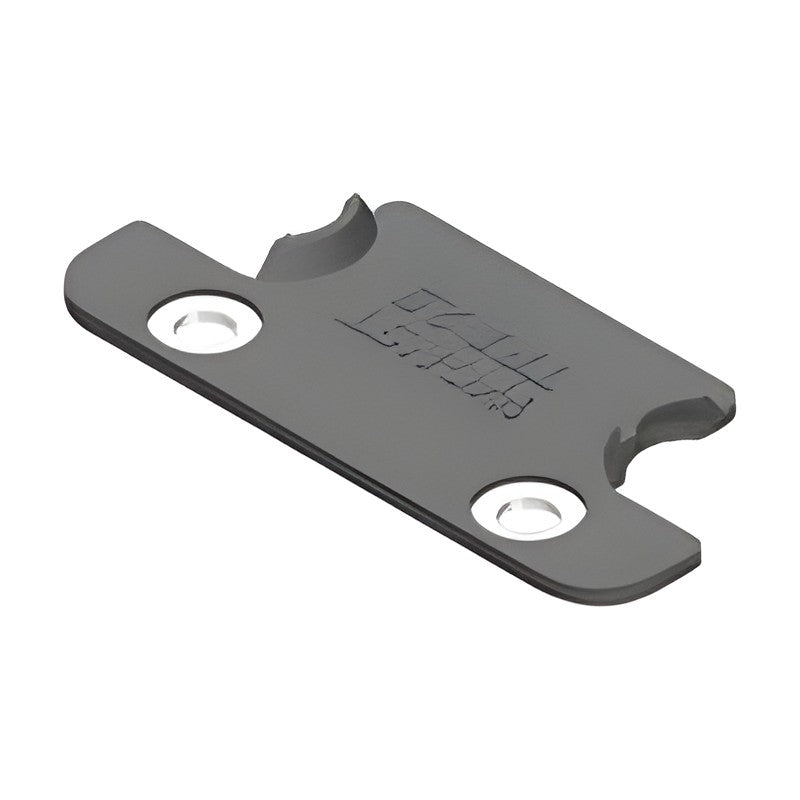

Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| T15 | Length L: 30 mm | Height H: 15.5 mm | Thickness t: 3 mm | Hole pitch C: 20 mm | h: 3 mm | D: 5.5 mm | Hole d: 3.5 mm | Applied rail: TRI15 | ||
| T20 | Length L: 38 mm | Height H: 16.5 mm | Thickness t: 3 mm | Hole pitch C: 22 mm | h: 4 mm | D: 5.5 mm | Hole d: 3.5 mm | Applied rail: TRI20 | ||
| T25 | Length L: 44 mm | Height H: 20 mm | Thickness t: 3 mm | Hole pitch C: 25 mm | h: 4 mm | D: 6 mm | Hole d: 3.5 mm | Applied rail: TRI25 | ||
| T30 | Length L: 56 mm | Height H: 24.4 mm | Thickness t: 3 mm | Hole pitch C: 36 mm | h: 6 mm | D: 8 mm | Hole d: 4.5 mm | Applied rail: TRI30 | ||
| T35 | Length L: 65 mm | Height H: 31.9 mm | Thickness t: 3 mm | Hole pitch C: 40 mm | h: 7 mm | D: 8 mm | Hole d: 4.5 mm | Applied rail: TRI35 | ||
| T45 | Length L: 80 mm | Height H: 35.4 mm | Thickness t: 3 mm | Hole pitch C: 46 mm | h: 9 mm | D: 8 mm | Hole d: 4.5 mm | Applied rail: TRI45 | ||
| T55 | Length L: 94 mm | Height H: 40.7 mm | Thickness t: 3 mm | Hole pitch C: 66 mm | h: 9.5 mm | D: 8 mm | Hole d: 4.5 mm | Applied rail: TRI55 |
