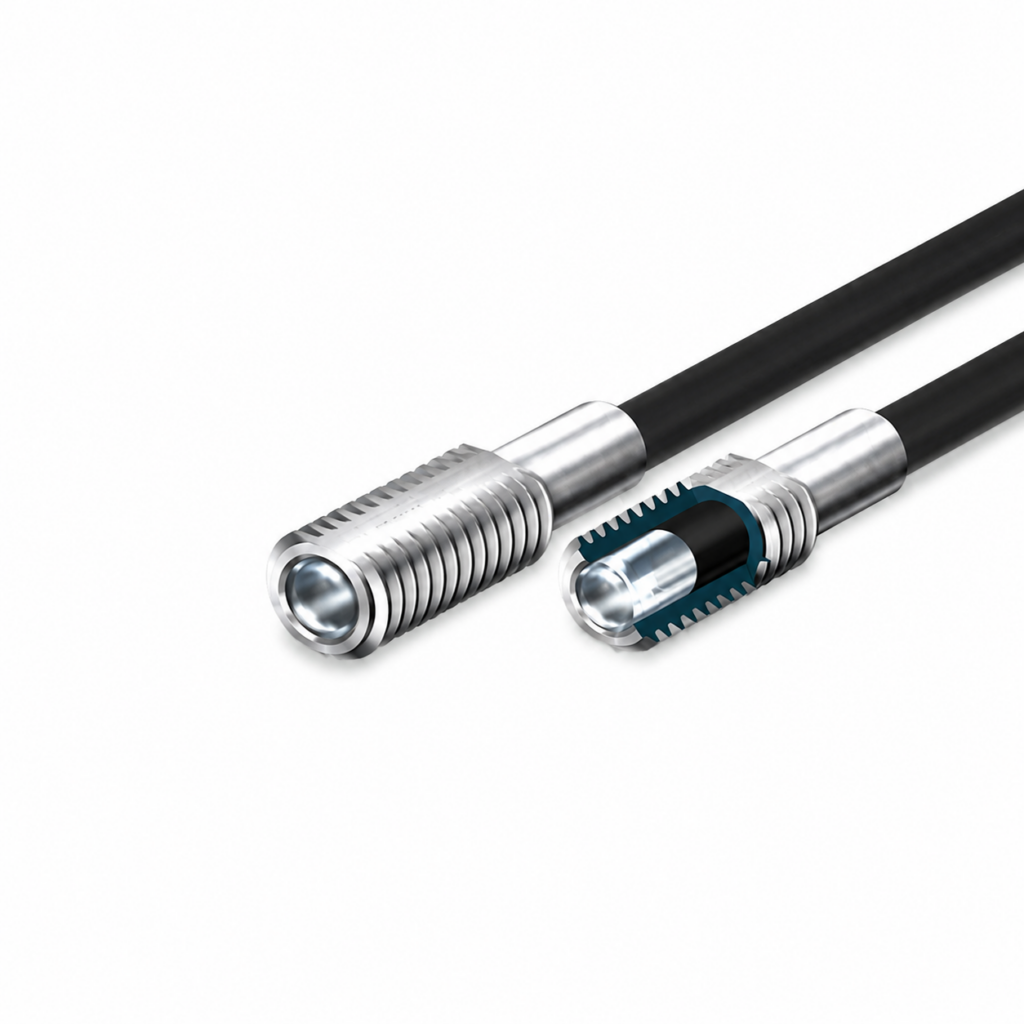

[OMRON] — E32-LD Build-in Lens Reflective Fiber Unit (M6, 15° GIGA Beam, High-power)
Family ID: OMRON-E32-LD
OMRON E32-LD Build-in Lens Reflective Fiber Unit — General-purpose threaded fiber sensor with built-in PMMA lens. Approximately 3.5× the light intensity of conventional non-lens reflective models — stable detection even for difficult-to-detect glossy black workpieces and low-reflection materials. Sensing distance approximately 2× conventional non-lens reflective models. 15° aperture angle creates a clear, well-defined spot (approx. 80 mm at 300 mm distance vs 350 mm conventional) for easy on-site adjustment and label-through-backing detection. M6×0.75 trivalent chrome-plated zinc alloy threaded body — no external lens attachment required, no protrusion, no risk of lost lens. Free-cut supported. Two cable variants: standard R25 bending radius (E32-LD11) and flexible R1 (E32-LD11R). IP50. Operating temperature −40 to +70 °C. Compatible with E3X-HD and E3NX-FA fiber amplifiers.
2 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E32-LD11 2M | E32-LD11 2M — Build-in Lens reflective fiber unit, M6, 15° aperture, R25 bending | OMRON | Type: Build-in Lens Reflective Fiber Unit | Sensing Direction: Top-view | Mounting Thread: M6×0.75 (trivalent chrome-plated zinc alloy) | Sensing Surface: 2× 1.5 mm dia. (with built-in PMMA lens) | Min. Sensing Object (E3X-HD): 0.1 mm dia. | Min. Sensing Object (E3NX-FA): 0.03 mm dia. | Bending Radius of Cable: R25 | Unbendable Length: 10 mm | Sensing Distance — E3X-HD GIGA: 860 mm | Sensing Distance — E3X-HD HS: 250 mm | Sensing Distance — E3X-HD ST: 360 mm | Sensing Distance — E3X-HD SHS: 110 mm | Sensing Distance — E3NX-FA GIGA: 1,290 mm | Sensing Distance — E3NX-FA HS: 370 mm | Sensing Distance — E3NX-FA ST: 540 mm | Sensing Distance — E3NX-FA SHS: 110 mm | Standard Sensing Object: Glossy white paper | Black Workpiece Detection (E3X-HD): SHS 65 mm / HS 160 mm / ST 160 mm / GIGA 500 mm (50 mm glossy black plastic) | Light Intensity Advantage: Approx. 3.5× vs conventional non-lens reflective models (HS mode at 150 mm with glossy black plastic) | Spot Size Advantage: Approx. 80 mm spot at 300 mm distance (vs approx. 350 mm conventional non-lens) | Mounting: Opposite side 10 mm / Thickness 2.4 mm nickel-plated brass nuts + nickel-plated iron washers | Tightening Torque: 0.98 N·m | Weight (Packed): approx. 40 g | Aperture Angle: 15° (Build-in Lens GIGA Beam, vs conventional 60° non-lens) | Lens: Build-in (no external lens attachment required) | Degree of Protection: IP50 | Ambient Temperature: −40 to +70 °C | Cable Sheath Material: Polyethylene | Fiber Core Material: Plastic | Tensile Strength: 29.4 N | Cable Length: 2 m | Free-cut: Supported | Compatible Amplifiers: E3X-HD series / E3NX-FA series (sold separately) | Note: E3X-HD0 Communication Unit Connector model was discontinued October 2024 (per PDF) | ||
| E32-LD11R 2M | E32-LD11R 2M — Build-in Lens reflective fiber unit, M6, 15° aperture, Flexible R1 bending | OMRON | Type: Build-in Lens Reflective Fiber Unit | Sensing Direction: Top-view | Mounting Thread: M6×0.75 (trivalent chrome-plated zinc alloy) | Sensing Surface: 2× 1.5 mm dia. (with built-in PMMA lens) | Min. Sensing Object (E3X-HD): 0.1 mm dia. | Min. Sensing Object (E3NX-FA): 0.03 mm dia. | Bending Radius of Cable: Flexible R1 | Unbendable Length: 0 mm | Sensing Distance — E3X-HD GIGA: 840 mm | Sensing Distance — E3X-HD HS: 240 mm | Sensing Distance — E3X-HD ST: 350 mm | Sensing Distance — E3X-HD SHS: 100 mm | Sensing Distance — E3NX-FA GIGA: 1,260 mm | Sensing Distance — E3NX-FA HS: 360 mm | Sensing Distance — E3NX-FA ST: 520 mm | Sensing Distance — E3NX-FA SHS: 100 mm | Standard Sensing Object: Glossy white paper | Black Workpiece Detection (E3X-HD): SHS 65 mm / HS 150 mm / ST 150 mm / GIGA 400 mm (50 mm glossy black plastic) | Light Intensity Advantage: Approx. 3.5× vs conventional non-lens reflective models (HS mode at 150 mm with glossy black plastic) | Spot Size Advantage: Approx. 80 mm spot at 300 mm distance (vs approx. 350 mm conventional non-lens) | Mounting: Opposite side 10 mm / Thickness 2.4 mm nickel-plated brass nuts + nickel-plated iron washers | Tightening Torque: 0.98 N·m | Weight (Packed): approx. 40 g | Aperture Angle: 15° (Build-in Lens GIGA Beam, vs conventional 60° non-lens) | Lens: Build-in (no external lens attachment required) | Degree of Protection: IP50 | Ambient Temperature: −40 to +70 °C | Cable Sheath Material: Polyethylene | Fiber Core Material: Plastic | Tensile Strength: 29.4 N | Cable Length: 2 m | Free-cut: Supported | Compatible Amplifiers: E3X-HD series / E3NX-FA series (sold separately) | Note: E3X-HD0 Communication Unit Connector model was discontinued October 2024 (per PDF) |
