Roller Guides
THK

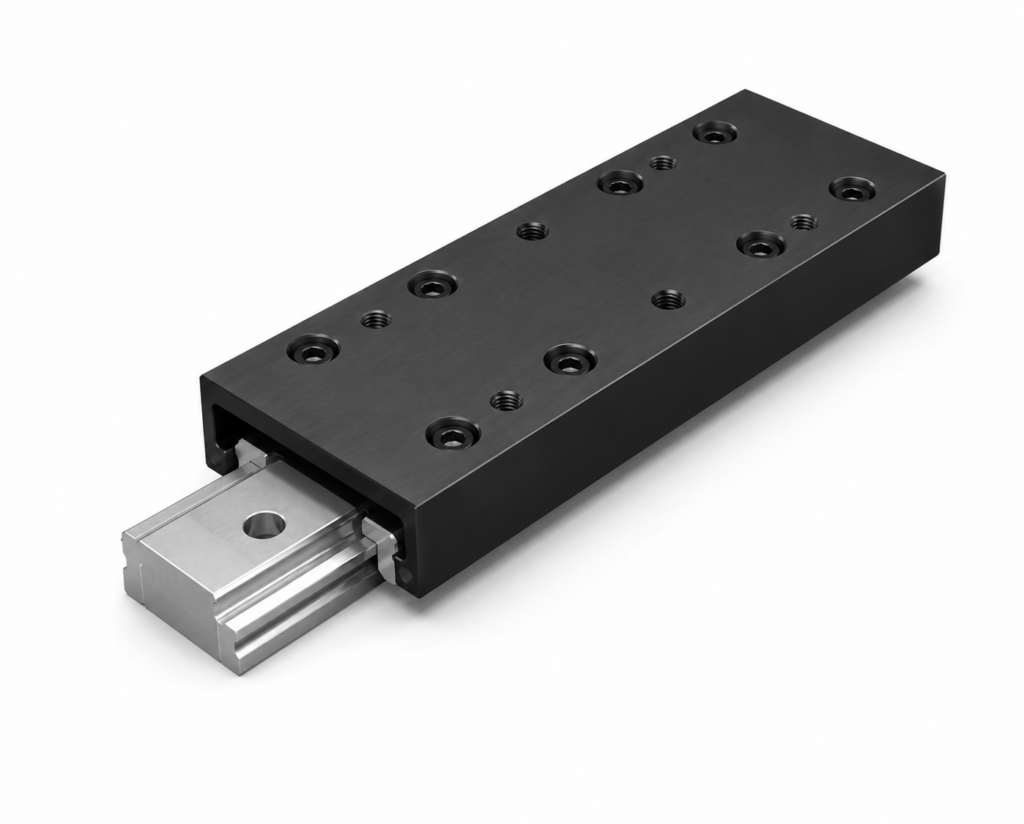

[THK] — Cross Roller Table VRT2 (W30×H12, M3)
Family ID: THK-VRT2
THK VRT Miniature Cross Roller Table, VRT2 frame. Table width W=30mm, height M=12mm, mounting tap M3. Stroke range 18~80mm. Cross roller construction for high rigidity and precision linear motion. Full stainless steel type available on request.
7 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| VRT2035 | THK Cross Roller Table VRT2035, stroke 18mm, 5 rollers, 78g | THK | Frame: VRT2 | Table Width (W): 30 mm | Height (M): 12 mm | Stroke: 18 mm | Rollers (Z): 5 | Mass: 78 g | Basic Dynamic Load Rating C: 0.84 kN | Basic Static Load Rating C0: 1.09 kN | Static Allowable Moment MA: 4.32 N·m | Static Allowable Moment MB: 3.55 N·m | Static Allowable Moment MC: 7.06 N·m | Mounting Tap: M3 | Full Stainless Type: available on request | ||
| VRT2050 | THK Cross Roller Table VRT2050, stroke 30mm, 7 rollers, 113g | THK | Frame: VRT2 | Table Width (W): 30 mm | Height (M): 12 mm | Stroke: 30 mm | Rollers (Z): 7 | Mass: 113 g | Basic Dynamic Load Rating C: 1.16 kN | Basic Static Load Rating C0: 1.63 kN | Static Allowable Moment MA: 7.45 N·m | Static Allowable Moment MB: 6.59 N·m | Static Allowable Moment MC: 10.6 N·m | Mounting Tap: M3 | Full Stainless Type: available on request | ||
| VRT2065 | THK Cross Roller Table VRT2065, stroke 40mm, 9 rollers, 147g | THK | Frame: VRT2 | Table Width (W): 30 mm | Height (M): 12 mm | Stroke: 40 mm | Rollers (Z): 9 | Mass: 147 g | Basic Dynamic Load Rating C: 1.46 kN | Basic Static Load Rating C0: 2.17 kN | Static Allowable Moment MA: 11.8 N·m | Static Allowable Moment MB: 10.5 N·m | Static Allowable Moment MC: 14.1 N·m | Mounting Tap: M3 | Full Stainless Type: available on request | ||
| VRT2080 | THK Cross Roller Table VRT2080, stroke 50mm, 12 rollers, 184g | THK | Frame: VRT2 | Table Width (W): 30 mm | Height (M): 12 mm | Stroke: 50 mm | Rollers (Z): 12 | Mass: 184 g | Basic Dynamic Load Rating C: 2.01 kN | Basic Static Load Rating C0: 3.26 kN | Static Allowable Moment MA: 16.8 N·m | Static Allowable Moment MB: 18.2 N·m | Static Allowable Moment MC: 21.2 N·m | Mounting Tap: M3 | Full Stainless Type: available on request | ||
| VRT2095 | THK Cross Roller Table VRT2095, stroke 60mm, 14 rollers, 220g | THK | Frame: VRT2 | Table Width (W): 30 mm | Height (M): 12 mm | Stroke: 60 mm | Rollers (Z): 14 | Mass: 220 g | Basic Dynamic Load Rating C: 2.26 kN | Basic Static Load Rating C0: 3.8 kN | Static Allowable Moment MA: 23.0 N·m | Static Allowable Moment MB: 24.5 N·m | Static Allowable Moment MC: 24.7 N·m | Mounting Tap: M3 | Full Stainless Type: available on request | ||
| VRT2110 | THK Cross Roller Table VRT2110, stroke 70mm, 17 rollers, 257g | THK | Frame: VRT2 | Table Width (W): 30 mm | Height (M): 12 mm | Stroke: 70 mm | Rollers (Z): 17 | Mass: 257 g | Basic Dynamic Load Rating C: 2.51 kN | Basic Static Load Rating C0: 4.34 kN | Static Allowable Moment MA: 37.9 N·m | Static Allowable Moment MB: 35.7 N·m | Static Allowable Moment MC: 28.2 N·m | Mounting Tap: M3 | Full Stainless Type: available on request | ||
| VRT2125 | THK Cross Roller Table VRT2125, stroke 80mm, 19 rollers, 290g | THK | Frame: VRT2 | Table Width (W): 30 mm | Height (M): 12 mm | Stroke: 80 mm | Rollers (Z): 19 | Mass: 290 g | Basic Dynamic Load Rating C: 2.76 kN | Basic Static Load Rating C0: 4.89 kN | Static Allowable Moment MA: 46.7 N·m | Static Allowable Moment MB: 44.3 N·m | Static Allowable Moment MC: 31.8 N·m | Mounting Tap: M3 | Full Stainless Type: available on request |
