Roller Guides
THK
[THK] — Cross Roller Guide VR9
Family ID: THK-VR9

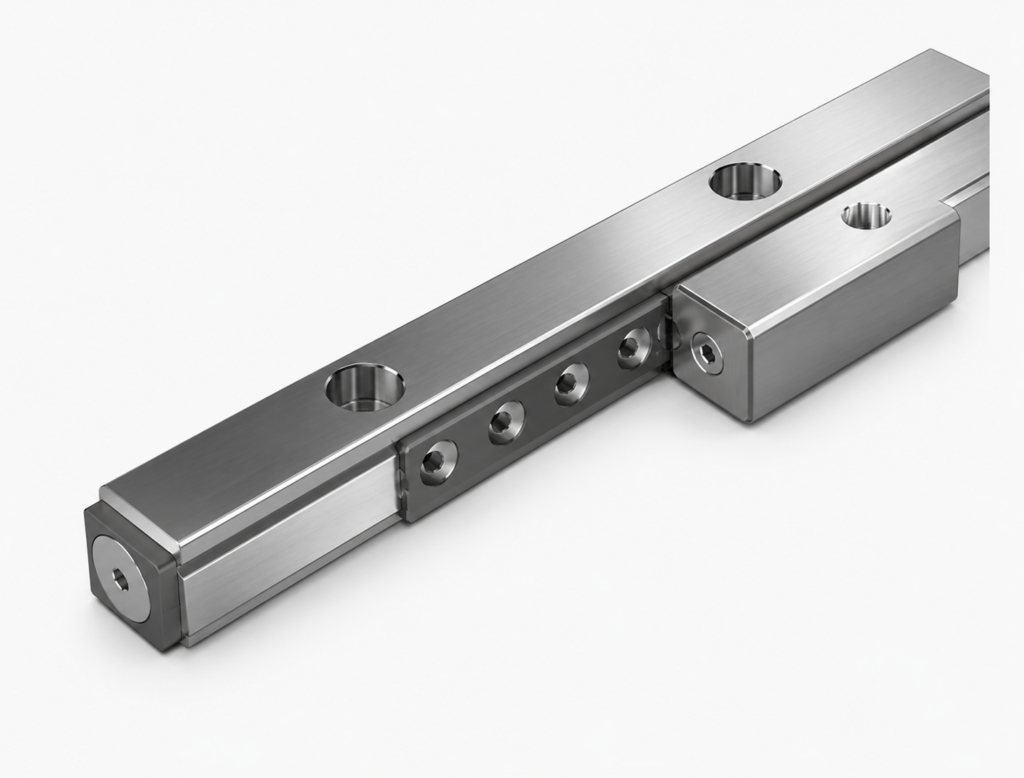

Cross Roller Guide VR9 type. Rail length 200~1200mm, 10~60 rollers per set. Basic dynamic load rating C_Z = 9.53 kN per roller; static C0Z = 9.48 kN per roller. 4-rail + 2-cage assembly (1 set). Roller diameter 9.525 mm (cross arrangement). Stainless type (VR9M) available on request.
11 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| VR9-200x10Z | THK Cross Roller Guide VR9, Rail 200mm, 10 rollers, max stroke 118mm | THK | Rail Length: 200 mm | Rollers (Z): 10 | Max Stroke: 118 mm | Roller Diameter: 9.525 mm (cross roller) | Basic Dynamic Load Rating C_Z: 9.53 kN (per roller) | Basic Static Load Rating C0Z: 9.48 kN (per roller) | Rail Mass: 3.2 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR9M (order basis) | ||
| VR9-300x15Z | THK Cross Roller Guide VR9, Rail 300mm, 15 rollers, max stroke 178mm | THK | Rail Length: 300 mm | Rollers (Z): 15 | Max Stroke: 178 mm | Roller Diameter: 9.525 mm (cross roller) | Basic Dynamic Load Rating C_Z: 9.53 kN (per roller) | Basic Static Load Rating C0Z: 9.48 kN (per roller) | Rail Mass: 3.2 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR9M (order basis) | ||
| VR9-400x20Z | THK Cross Roller Guide VR9, Rail 400mm, 20 rollers, max stroke 238mm | THK | Rail Length: 400 mm | Rollers (Z): 20 | Max Stroke: 238 mm | Roller Diameter: 9.525 mm (cross roller) | Basic Dynamic Load Rating C_Z: 9.53 kN (per roller) | Basic Static Load Rating C0Z: 9.48 kN (per roller) | Rail Mass: 3.2 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR9M (order basis) | ||
| VR9-500x25Z | THK Cross Roller Guide VR9, Rail 500mm, 25 rollers, max stroke 298mm | THK | Rail Length: 500 mm | Rollers (Z): 25 | Max Stroke: 298 mm | Roller Diameter: 9.525 mm (cross roller) | Basic Dynamic Load Rating C_Z: 9.53 kN (per roller) | Basic Static Load Rating C0Z: 9.48 kN (per roller) | Rail Mass: 3.2 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR9M (order basis) | ||
| VR9-600x30Z | THK Cross Roller Guide VR9, Rail 600mm, 30 rollers, max stroke 358mm | THK | Rail Length: 600 mm | Rollers (Z): 30 | Max Stroke: 358 mm | Roller Diameter: 9.525 mm (cross roller) | Basic Dynamic Load Rating C_Z: 9.53 kN (per roller) | Basic Static Load Rating C0Z: 9.48 kN (per roller) | Rail Mass: 3.2 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR9M (order basis) | ||
| VR9-700x35Z | THK Cross Roller Guide VR9, Rail 700mm, 35 rollers, max stroke 418mm | THK | Rail Length: 700 mm | Rollers (Z): 35 | Max Stroke: 418 mm | Roller Diameter: 9.525 mm (cross roller) | Basic Dynamic Load Rating C_Z: 9.53 kN (per roller) | Basic Static Load Rating C0Z: 9.48 kN (per roller) | Rail Mass: 3.2 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR9M (order basis) | ||
| VR9-800x40Z | THK Cross Roller Guide VR9, Rail 800mm, 40 rollers, max stroke 478mm | THK | Rail Length: 800 mm | Rollers (Z): 40 | Max Stroke: 478 mm | Roller Diameter: 9.525 mm (cross roller) | Basic Dynamic Load Rating C_Z: 9.53 kN (per roller) | Basic Static Load Rating C0Z: 9.48 kN (per roller) | Rail Mass: 3.2 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR9M (order basis) | ||
| VR9-900x45Z | THK Cross Roller Guide VR9, Rail 900mm, 45 rollers, max stroke 538mm | THK | Rail Length: 900 mm | Rollers (Z): 45 | Max Stroke: 538 mm | Roller Diameter: 9.525 mm (cross roller) | Basic Dynamic Load Rating C_Z: 9.53 kN (per roller) | Basic Static Load Rating C0Z: 9.48 kN (per roller) | Rail Mass: 3.2 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR9M (order basis) | ||
| VR9-1000x50Z | THK Cross Roller Guide VR9, Rail 1000mm, 50 rollers, max stroke 598mm | THK | Rail Length: 1000 mm | Rollers (Z): 50 | Max Stroke: 598 mm | Roller Diameter: 9.525 mm (cross roller) | Basic Dynamic Load Rating C_Z: 9.53 kN (per roller) | Basic Static Load Rating C0Z: 9.48 kN (per roller) | Rail Mass: 3.2 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR9M (order basis) | ||
| VR9-1100x55Z | THK Cross Roller Guide VR9, Rail 1100mm, 55 rollers, max stroke 658mm | THK | Rail Length: 1100 mm | Rollers (Z): 55 | Max Stroke: 658 mm | Roller Diameter: 9.525 mm (cross roller) | Basic Dynamic Load Rating C_Z: 9.53 kN (per roller) | Basic Static Load Rating C0Z: 9.48 kN (per roller) | Rail Mass: 3.2 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR9M (order basis) | ||
| VR9-1200x60Z | THK Cross Roller Guide VR9, Rail 1200mm, 60 rollers, max stroke 718mm | THK | Rail Length: 1200 mm | Rollers (Z): 60 | Max Stroke: 718 mm | Roller Diameter: 9.525 mm (cross roller) | Basic Dynamic Load Rating C_Z: 9.53 kN (per roller) | Basic Static Load Rating C0Z: 9.48 kN (per roller) | Rail Mass: 3.2 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR9M (order basis) |
