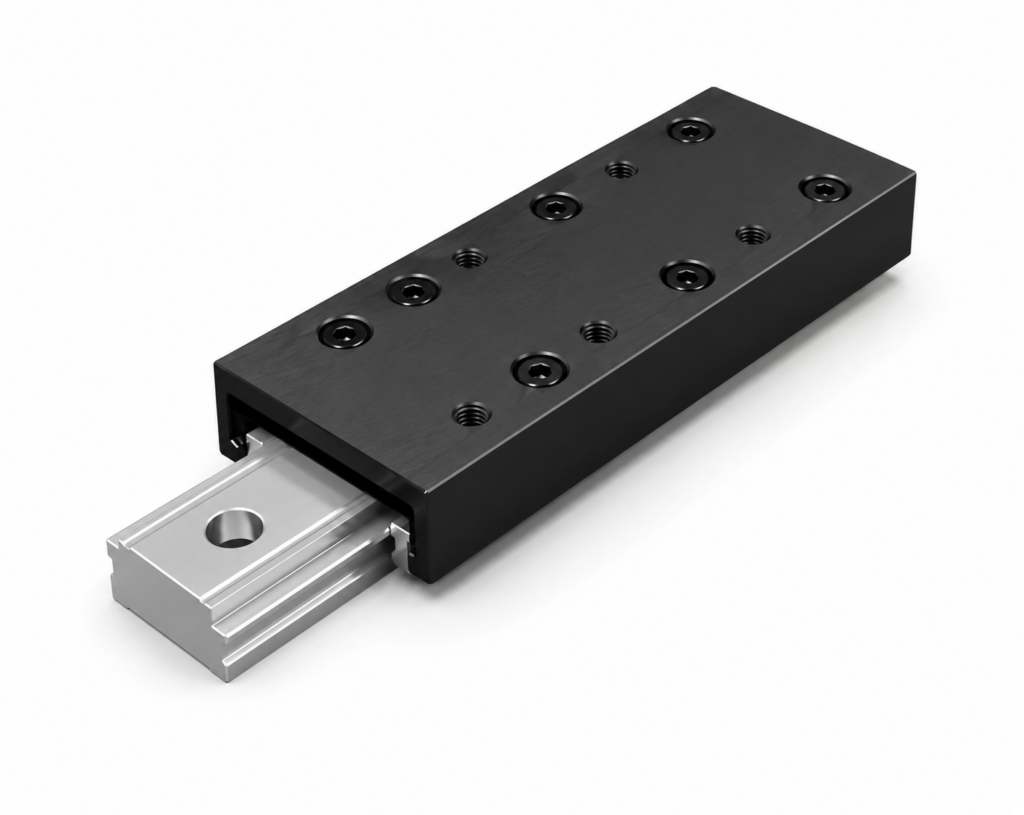

[THK] — Cross Roller Table VRT1-A (W20×H8, base hole type)
Family ID: THK-VRT1-A
THK VRT-A Miniature Cross Roller Table, VRT1-A frame. Base mounting through-hole type (d×D×h = 2.5×4.1×2.2mm). Table width W=20mm, height M=8mm. Stroke range 12~50mm. Same load ratings as VRT tab type; base through-hole mounting for improved rigidity. Full stainless steel type available on request.
7 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| VRT1025A | THK Cross Roller Table VRT1025A, stroke 12mm, 5 rollers, 23g | THK | Frame: VRT1-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 2.5×4.1×2.2 mm | Table Width (W): 20 mm | Height (M): 8 mm | Stroke: 12 mm | Rollers (Z): 5 | Mass: 23 g | Basic Dynamic Load Rating C: 0.46 kN | Basic Static Load Rating C0: 0.61 kN | Static Allowable Moment MA: 1.52 N·m | Static Allowable Moment MB: 1.25 N·m | Static Allowable Moment MC: 2.29 N·m | Full Stainless Type: available on request | ||
| VRT1035A | THK Cross Roller Table VRT1035A, stroke 18mm, 7 rollers, 32g | THK | Frame: VRT1-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 2.5×4.1×2.2 mm | Table Width (W): 20 mm | Height (M): 8 mm | Stroke: 18 mm | Rollers (Z): 7 | Mass: 32 g | Basic Dynamic Load Rating C: 0.63 kN | Basic Static Load Rating C0: 0.92 kN | Static Allowable Moment MA: 2.62 N·m | Static Allowable Moment MB: 2.32 N·m | Static Allowable Moment MC: 3.44 N·m | Full Stainless Type: available on request | ||
| VRT1045A | THK Cross Roller Table VRT1045A, stroke 25mm, 10 rollers, 42g | THK | Frame: VRT1-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 2.5×4.1×2.2 mm | Table Width (W): 20 mm | Height (M): 8 mm | Stroke: 25 mm | Rollers (Z): 10 | Mass: 42 g | Basic Dynamic Load Rating C: 0.95 kN | Basic Static Load Rating C0: 1.53 kN | Static Allowable Moment MA: 4.14 N·m | Static Allowable Moment MB: 4.53 N·m | Static Allowable Moment MC: 5.73 N·m | Full Stainless Type: available on request | ||
| VRT1055A | THK Cross Roller Table VRT1055A, stroke 32mm, 12 rollers, 52g | THK | Frame: VRT1-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 2.5×4.1×2.2 mm | Table Width (W): 20 mm | Height (M): 8 mm | Stroke: 32 mm | Rollers (Z): 12 | Mass: 52 g | Basic Dynamic Load Rating C: 1.09 kN | Basic Static Load Rating C0: 1.83 kN | Static Allowable Moment MA: 5.92 N·m | Static Allowable Moment MB: 6.41 N·m | Static Allowable Moment MC: 6.87 N·m | Full Stainless Type: available on request | ||
| VRT1065A | THK Cross Roller Table VRT1065A, stroke 40mm, 14 rollers, 62g | THK | Frame: VRT1-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 2.5×4.1×2.2 mm | Table Width (W): 20 mm | Height (M): 8 mm | Stroke: 40 mm | Rollers (Z): 14 | Mass: 62 g | Basic Dynamic Load Rating C: 1.23 kN | Basic Static Load Rating C0: 2.14 kN | Static Allowable Moment MA: 8.08 N·m | Static Allowable Moment MB: 8.62 N·m | Static Allowable Moment MC: 8.02 N·m | Full Stainless Type: available on request | ||
| VRT1075A | THK Cross Roller Table VRT1075A, stroke 45mm, 18 rollers, 72g | THK | Frame: VRT1-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 2.5×4.1×2.2 mm | Table Width (W): 20 mm | Height (M): 8 mm | Stroke: 45 mm | Rollers (Z): 18 | Mass: 72 g | Basic Dynamic Load Rating C: 1.5 kN | Basic Static Load Rating C0: 2.75 kN | Static Allowable Moment MA: 13.3 N·m | Static Allowable Moment MB: 14.0 N·m | Static Allowable Moment MC: 10.3 N·m | Full Stainless Type: available on request | ||
| VRT1085A | THK Cross Roller Table VRT1085A, stroke 50mm, 20 rollers, 82g | THK | Frame: VRT1-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 2.5×4.1×2.2 mm | Table Width (W): 20 mm | Height (M): 8 mm | Stroke: 50 mm | Rollers (Z): 20 | Mass: 82 g | Basic Dynamic Load Rating C: 1.63 kN | Basic Static Load Rating C0: 3.05 kN | Static Allowable Moment MA: 16.4 N·m | Static Allowable Moment MB: 17.2 N·m | Static Allowable Moment MC: 11.5 N·m | Full Stainless Type: available on request |
