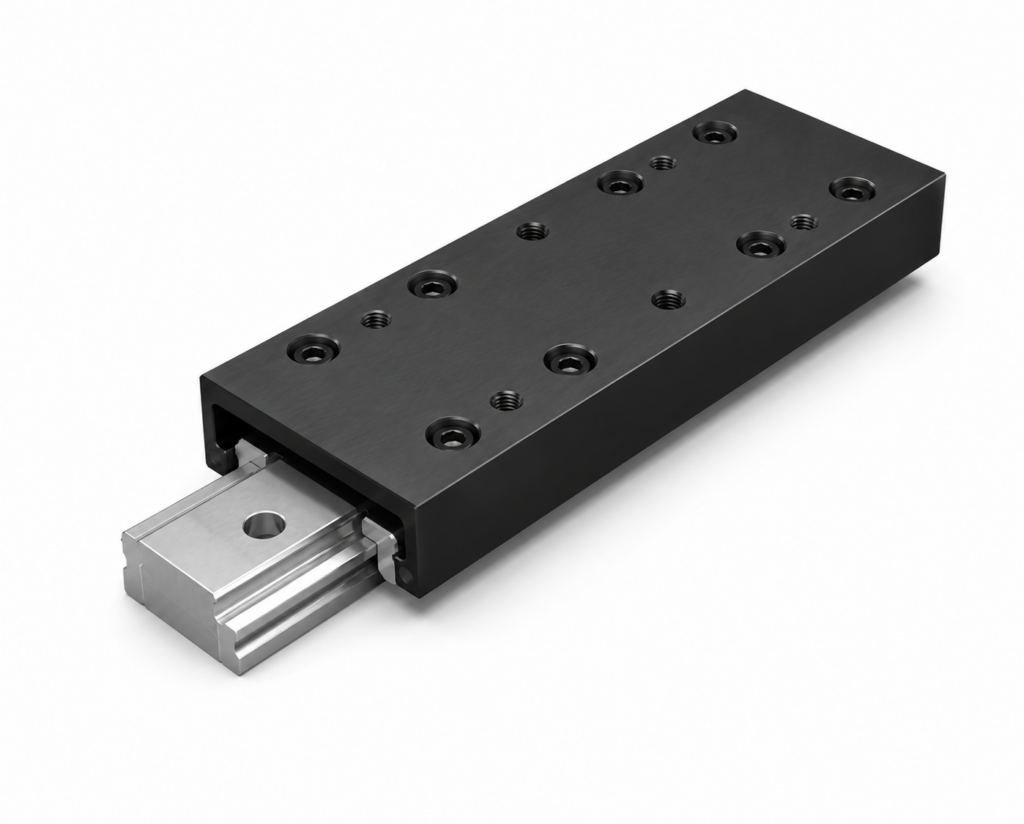

[THK] — Cross Roller Table VRT3 (W40×H16, M4)
Family ID: THK-VRT3
THK VRT Miniature Cross Roller Table, VRT3 frame. Table width W=40mm, height M=16mm, mounting tap M4. Stroke range 30~130mm. Cross roller construction for high rigidity and precision linear motion. Full stainless steel type available on request.
7 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| VRT3055 | THK Cross Roller Table VRT3055, stroke 30mm, 6 rollers, 229g | THK | Frame: VRT3 | Table Width (W): 40 mm | Height (M): 16 mm | Stroke: 30 mm | Rollers (Z): 6 | Mass: 229 g | Basic Dynamic Load Rating C: 2.71 kN | Basic Static Load Rating C0: 3.67 kN | Static Allowable Moment MA: 12.2 N·m | Static Allowable Moment MB: 13.9 N·m | Static Allowable Moment MC: 31.9 N·m | Mounting Tap: M4 | Full Stainless Type: available on request | ||
| VRT3080 | THK Cross Roller Table VRT3080, stroke 45mm, 10 rollers, 336g | THK | Frame: VRT3 | Table Width (W): 40 mm | Height (M): 16 mm | Stroke: 45 mm | Rollers (Z): 10 | Mass: 336 g | Basic Dynamic Load Rating C: 4.06 kN | Basic Static Load Rating C0: 6.11 kN | Static Allowable Moment MA: 33.1 N·m | Static Allowable Moment MB: 36.2 N·m | Static Allowable Moment MC: 53.1 N·m | Mounting Tap: M4 | Full Stainless Type: available on request | ||
| VRT3105 | THK Cross Roller Table VRT3105, stroke 60mm, 13 rollers, 442g | THK | Frame: VRT3 | Table Width (W): 40 mm | Height (M): 16 mm | Stroke: 60 mm | Rollers (Z): 13 | Mass: 442 g | Basic Dynamic Load Rating C: 4.68 kN | Basic Static Load Rating C0: 7.33 kN | Static Allowable Moment MA: 64.6 N·m | Static Allowable Moment MB: 59.8 N·m | Static Allowable Moment MC: 63.8 N·m | Mounting Tap: M4 | Full Stainless Type: available on request | ||
| VRT3130 | THK Cross Roller Table VRT3130, stroke 75mm, 17 rollers, 551g | THK | Frame: VRT3 | Table Width (W): 40 mm | Height (M): 16 mm | Stroke: 75 mm | Rollers (Z): 17 | Mass: 551 g | Basic Dynamic Load Rating C: 5.87 kN | Basic Static Load Rating C0: 9.77 kN | Static Allowable Moment MA: 107.0 N·m | Static Allowable Moment MB: 100.0 N·m | Static Allowable Moment MC: 85.0 N·m | Mounting Tap: M4 | Full Stainless Type: available on request | ||
| VRT3155 | THK Cross Roller Table VRT3155, stroke 90mm, 20 rollers, 657g | THK | Frame: VRT3 | Table Width (W): 40 mm | Height (M): 16 mm | Stroke: 90 mm | Rollers (Z): 20 | Mass: 657 g | Basic Dynamic Load Rating C: 6.98 kN | Basic Static Load Rating C0: 12.2 kN | Static Allowable Moment MA: 131.0 N·m | Static Allowable Moment MB: 138.0 N·m | Static Allowable Moment MC: 106.0 N·m | Mounting Tap: M4 | Full Stainless Type: available on request | ||
| VRT3180 | THK Cross Roller Table VRT3180, stroke 105mm, 24 rollers, 766g | THK | Frame: VRT3 | Table Width (W): 40 mm | Height (M): 16 mm | Stroke: 105 mm | Rollers (Z): 24 | Mass: 766 g | Basic Dynamic Load Rating C: 8.05 kN | Basic Static Load Rating C0: 14.7 kN | Static Allowable Moment MA: 189.0 N·m | Static Allowable Moment MB: 196.0 N·m | Static Allowable Moment MC: 128.0 N·m | Mounting Tap: M4 | Full Stainless Type: available on request | ||
| VRT3205 | THK Cross Roller Table VRT3205, stroke 130mm, 26 rollers, 871g | THK | Frame: VRT3 | Table Width (W): 40 mm | Height (M): 16 mm | Stroke: 130 mm | Rollers (Z): 26 | Mass: 871 g | Basic Dynamic Load Rating C: 8.57 kN | Basic Static Load Rating C0: 15.9 kN | Static Allowable Moment MA: 222.0 N·m | Static Allowable Moment MB: 230.0 N·m | Static Allowable Moment MC: 138.0 N·m | Mounting Tap: M4 | Full Stainless Type: available on request |
