Roller Guides
THK

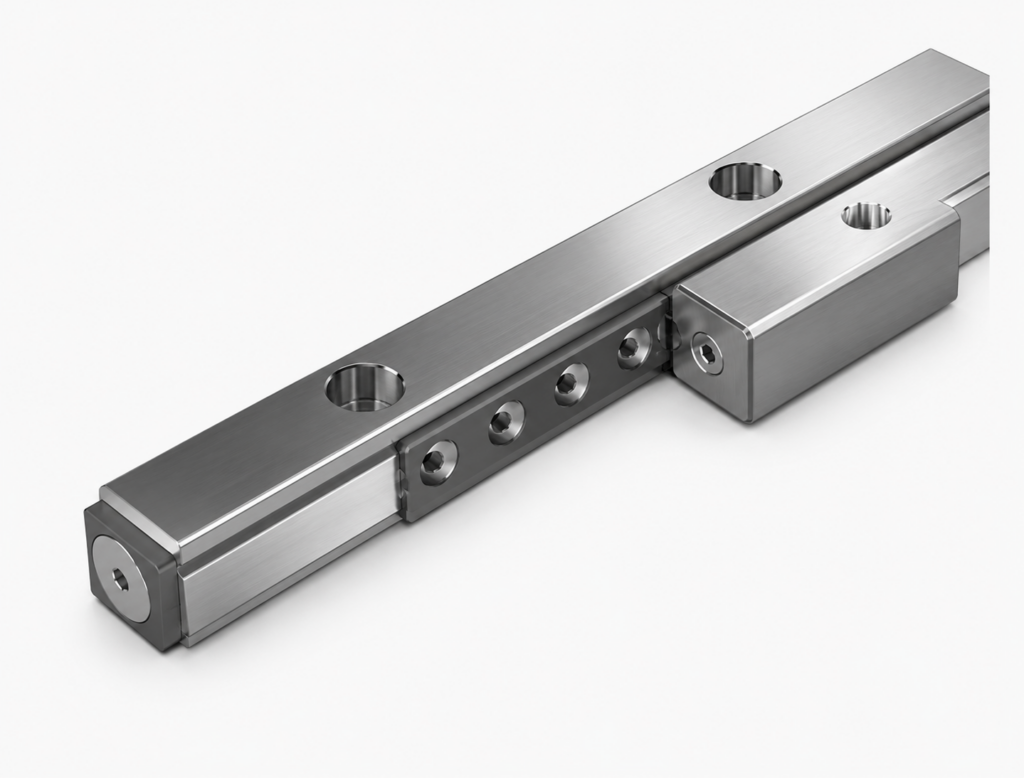

[THK] — Cross Roller Guide VR18
Family ID: THK-VR18
Cross Roller Guide VR18 type. Rail length 300~1200mm, 6~27 rollers per set. Basic dynamic load rating C_Z = 40.9 kN per roller; static C0Z = 38.8 kN per roller. 4-rail + 2-cage assembly (1 set). Roller diameter 18 mm (cross arrangement). Stainless type (VR18M) available on request.
10 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| VR18-300x6Z | THK Cross Roller Guide VR18, Rail 300mm, 6 rollers, max stroke 228mm | THK | Rail Length: 300 mm | Rollers (Z): 6 | Max Stroke: 228 mm | Roller Diameter: 18 mm (cross roller) | Basic Dynamic Load Rating C_Z: 40.9 kN (per roller) | Basic Static Load Rating C0Z: 38.8 kN (per roller) | Rail Mass: 10.5 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR18M (order basis) | ||
| VR18-400x9Z | THK Cross Roller Guide VR18, Rail 400mm, 9 rollers, max stroke 248mm | THK | Rail Length: 400 mm | Rollers (Z): 9 | Max Stroke: 248 mm | Roller Diameter: 18 mm (cross roller) | Basic Dynamic Load Rating C_Z: 40.9 kN (per roller) | Basic Static Load Rating C0Z: 38.8 kN (per roller) | Rail Mass: 10.5 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR18M (order basis) | ||
| VR18-500x11Z | THK Cross Roller Guide VR18, Rail 500mm, 11 rollers, max stroke 328mm | THK | Rail Length: 500 mm | Rollers (Z): 11 | Max Stroke: 328 mm | Roller Diameter: 18 mm (cross roller) | Basic Dynamic Load Rating C_Z: 40.9 kN (per roller) | Basic Static Load Rating C0Z: 38.8 kN (per roller) | Rail Mass: 10.5 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR18M (order basis) | ||
| VR18-600x13Z | THK Cross Roller Guide VR18, Rail 600mm, 13 rollers, max stroke 408mm | THK | Rail Length: 600 mm | Rollers (Z): 13 | Max Stroke: 408 mm | Roller Diameter: 18 mm (cross roller) | Basic Dynamic Load Rating C_Z: 40.9 kN (per roller) | Basic Static Load Rating C0Z: 38.8 kN (per roller) | Rail Mass: 10.5 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR18M (order basis) | ||
| VR18-700x16Z | THK Cross Roller Guide VR18, Rail 700mm, 16 rollers, max stroke 428mm | THK | Rail Length: 700 mm | Rollers (Z): 16 | Max Stroke: 428 mm | Roller Diameter: 18 mm (cross roller) | Basic Dynamic Load Rating C_Z: 40.9 kN (per roller) | Basic Static Load Rating C0Z: 38.8 kN (per roller) | Rail Mass: 10.5 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR18M (order basis) | ||
| VR18-800x18Z | THK Cross Roller Guide VR18, Rail 800mm, 18 rollers, max stroke 508mm | THK | Rail Length: 800 mm | Rollers (Z): 18 | Max Stroke: 508 mm | Roller Diameter: 18 mm (cross roller) | Basic Dynamic Load Rating C_Z: 40.9 kN (per roller) | Basic Static Load Rating C0Z: 38.8 kN (per roller) | Rail Mass: 10.5 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR18M (order basis) | ||
| VR18-900x20Z | THK Cross Roller Guide VR18, Rail 900mm, 20 rollers, max stroke 588mm | THK | Rail Length: 900 mm | Rollers (Z): 20 | Max Stroke: 588 mm | Roller Diameter: 18 mm (cross roller) | Basic Dynamic Load Rating C_Z: 40.9 kN (per roller) | Basic Static Load Rating C0Z: 38.8 kN (per roller) | Rail Mass: 10.5 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR18M (order basis) | ||
| VR18-1000x23Z | THK Cross Roller Guide VR18, Rail 1000mm, 23 rollers, max stroke 608mm | THK | Rail Length: 1000 mm | Rollers (Z): 23 | Max Stroke: 608 mm | Roller Diameter: 18 mm (cross roller) | Basic Dynamic Load Rating C_Z: 40.9 kN (per roller) | Basic Static Load Rating C0Z: 38.8 kN (per roller) | Rail Mass: 10.5 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR18M (order basis) | ||
| VR18-1100x25Z | THK Cross Roller Guide VR18, Rail 1100mm, 25 rollers, max stroke 688mm | THK | Rail Length: 1100 mm | Rollers (Z): 25 | Max Stroke: 688 mm | Roller Diameter: 18 mm (cross roller) | Basic Dynamic Load Rating C_Z: 40.9 kN (per roller) | Basic Static Load Rating C0Z: 38.8 kN (per roller) | Rail Mass: 10.5 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR18M (order basis) | ||
| VR18-1200x27Z | THK Cross Roller Guide VR18, Rail 1200mm, 27 rollers, max stroke 768mm | THK | Rail Length: 1200 mm | Rollers (Z): 27 | Max Stroke: 768 mm | Roller Diameter: 18 mm (cross roller) | Basic Dynamic Load Rating C_Z: 40.9 kN (per roller) | Basic Static Load Rating C0Z: 38.8 kN (per roller) | Rail Mass: 10.5 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR18M (order basis) |
