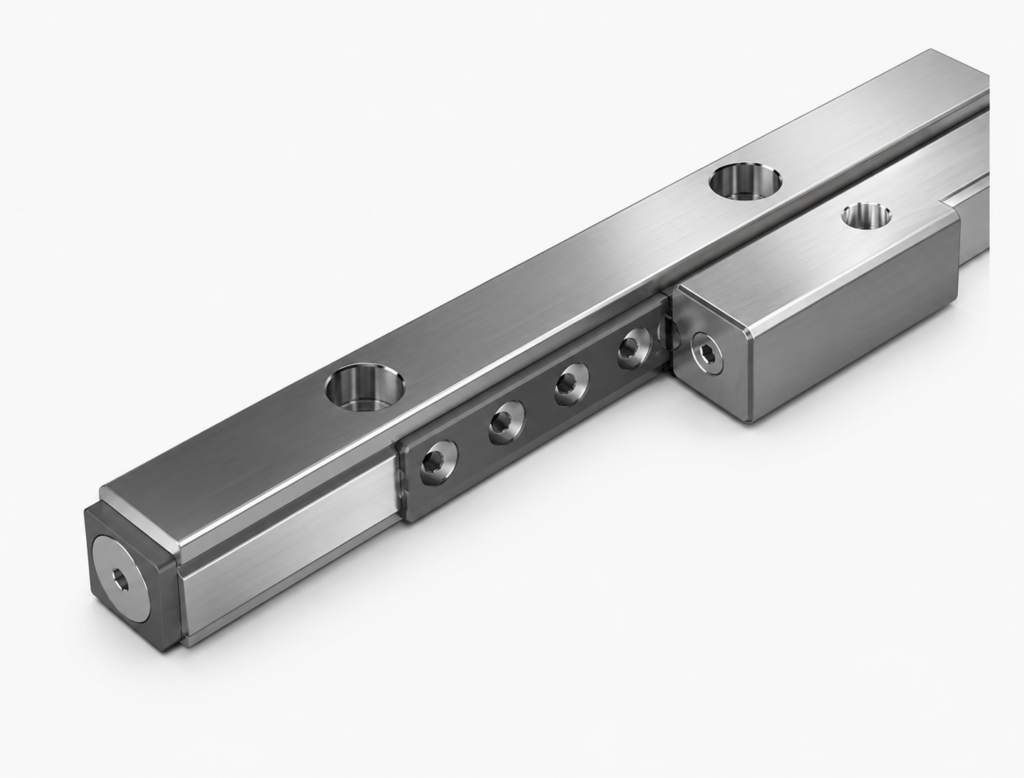

[THK] — VR2 Cross Roller Guide (VR2-30×5Z~VR2-180×32Z)
Family ID: THK-VR2
VR2 type Cross Roller Guide — compact high-rigidity LM system. Precision rollers arranged in orthogonal crossed pattern; cage moves 1/2 of stroke along V-groove rail. 1 set = 4 rails + 2 cages. Larger size than VR1. Stainless steel type (VR2M) available on request. Rail lengths: 30~180mm. Max stroke: 18~102mm.
11 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| VR2-30x5Z | THK cross roller guide VR2, rail L0=30mm, max stroke 18mm, Z=5 | THK | Rail Length: L0=30mm | Max Stroke: 18mm | Roller Count: Z=5 per cage | Mounting Bolts: n×F=1×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4 | ||
| VR2-45x8Z | THK cross roller guide VR2, rail L0=45mm, max stroke 24mm, Z=8 | THK | Rail Length: L0=45mm | Max Stroke: 24mm | Roller Count: Z=8 per cage | Mounting Bolts: n×F=2×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4 | ||
| VR2-60x11Z | THK cross roller guide VR2, rail L0=60mm, max stroke 30mm, Z=11 | THK | Rail Length: L0=60mm | Max Stroke: 30mm | Roller Count: Z=11 per cage | Mounting Bolts: n×F=3×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4 | ||
| VR2-75x13Z | THK cross roller guide VR2, rail L0=75mm, max stroke 44mm, Z=13 | THK | Rail Length: L0=75mm | Max Stroke: 44mm | Roller Count: Z=13 per cage | Mounting Bolts: n×F=4×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4 | ||
| VR2-90x16Z | THK cross roller guide VR2, rail L0=90mm, max stroke 50mm, Z=16 | THK | Rail Length: L0=90mm | Max Stroke: 50mm | Roller Count: Z=16 per cage | Mounting Bolts: n×F=5×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4 | ||
| VR2-105x18Z | THK cross roller guide VR2, rail L0=105mm, max stroke 64mm, Z=18 | THK | Rail Length: L0=105mm | Max Stroke: 64mm | Roller Count: Z=18 per cage | Mounting Bolts: n×F=6×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4 | ||
| VR2-120x21Z | THK cross roller guide VR2, rail L0=120mm, max stroke 70mm, Z=21 | THK | Rail Length: L0=120mm | Max Stroke: 70mm | Roller Count: Z=21 per cage | Mounting Bolts: n×F=7×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4 | ||
| VR2-135x23Z | THK cross roller guide VR2, rail L0=135mm, max stroke 84mm, Z=23 | THK | Rail Length: L0=135mm | Max Stroke: 84mm | Roller Count: Z=23 per cage | Mounting Bolts: n×F=8×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4 | ||
| VR2-150x26Z | THK cross roller guide VR2, rail L0=150mm, max stroke 90mm, Z=26 | THK | Rail Length: L0=150mm | Max Stroke: 90mm | Roller Count: Z=26 per cage | Mounting Bolts: n×F=9×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4 | ||
| VR2-165x29Z | THK cross roller guide VR2, rail L0=165mm, max stroke 96mm, Z=29 | THK | Rail Length: L0=165mm | Max Stroke: 96mm | Roller Count: Z=29 per cage | Mounting Bolts: n×F=10×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4 | ||
| VR2-180x32Z | THK cross roller guide VR2, rail L0=180mm, max stroke 102mm, Z=32 | THK | Rail Length: L0=180mm | Max Stroke: 102mm | Roller Count: Z=32 per cage | Mounting Bolts: n×F=11×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4 |
