LM Guides
THK

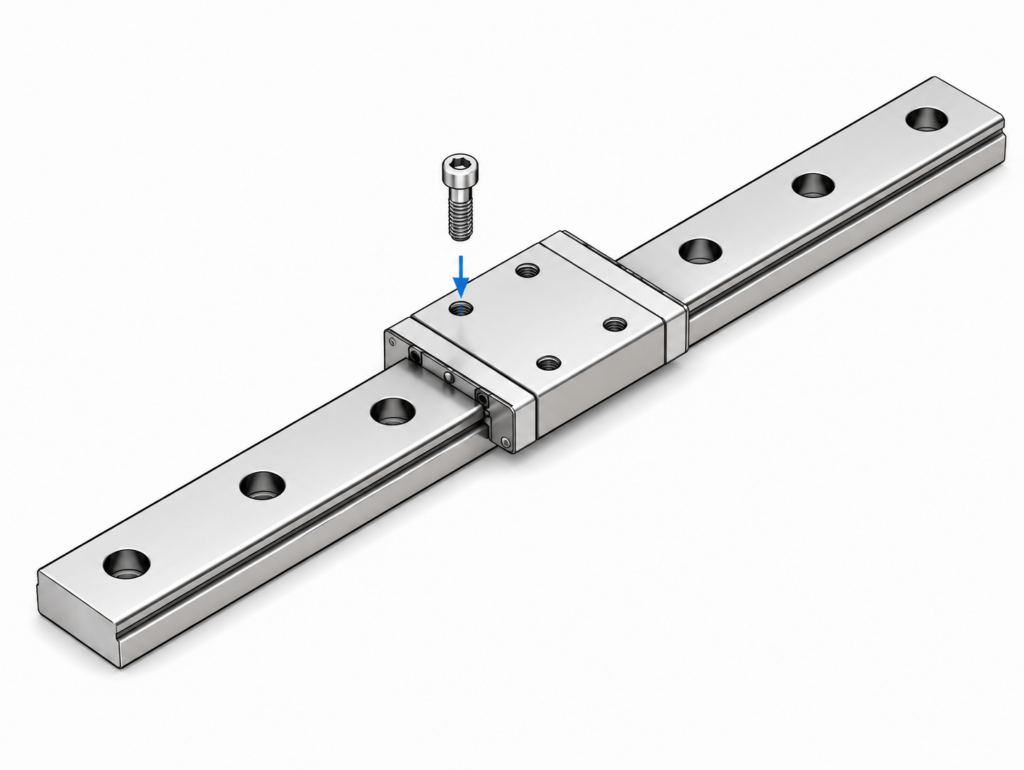

[THK] — RSR-M1WV/M1WN High Temperature LM Guide Block (Wide Block, Stainless, 150°C)
Family ID: THK-RSR-M1WV
High temperature type RSR LM Guide. Wide block width (W type) with tapped holes. Stainless end plate and high-temp rubber end seal — max 150°C operating temperature. Stainless block, rail and balls — ideal for clean rooms.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| RSR-9M1WV | RSR 9M1WV LM Block H12×W30×L39mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 9M1WV | Height M: 12 mm | Width W: 30 mm | Length L: 39 mm | Max Rail Length: 1430 mm | Dynamic Load C: 2.45 kN | Static Load C0: 3.92 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Width: Wide | Block Length: Standard (V type) | Application: High-temp / Clean room | Brand: THK | ||
| RSR-9M1WN | RSR 9M1WN LM Block H12×W30×L50.7mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 9M1WN | Height M: 12 mm | Width W: 30 mm | Length L: 50.7 mm | Max Rail Length: 1430 mm | Dynamic Load C: 3.52 kN | Static Load C0: 5.37 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Width: Wide | Block Length: Long (N type) | Application: High-temp / Clean room | Brand: THK | ||
| RSR-12M1WV | RSR 12M1WV LM Block H14×W40×L44.5mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 12M1WV | Height M: 14 mm | Width W: 40 mm | Length L: 44.5 mm | Max Rail Length: 1600 mm | Dynamic Load C: 4.02 kN | Static Load C0: 6.08 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Width: Wide | Block Length: Standard (V type) | Application: High-temp / Clean room | Brand: THK | ||
| RSR-12M1WN | RSR 12M1WN LM Block H14×W40×L59.5mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 12M1WN | Height M: 14 mm | Width W: 40 mm | Length L: 59.5 mm | Max Rail Length: 1600 mm | Dynamic Load C: 5.96 kN | Static Load C0: 9.21 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Width: Wide | Block Length: Long (N type) | Application: High-temp / Clean room | Brand: THK | ||
| RSR-15M1WV | RSR 15M1WV LM Block H16×W60×L55.5mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 15M1WV | Height M: 16 mm | Width W: 60 mm | Length L: 55.5 mm | Max Rail Length: 1800 mm | Dynamic Load C: 6.66 kN | Static Load C0: 9.8 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Width: Wide | Block Length: Standard (V type) | Application: High-temp / Clean room | Brand: THK | ||
| RSR-15M1WN | RSR 15M1WN LM Block H16×W60×L74.5mm | THK | Type: High Temperature LM Guide Block | Series: RSR-M1 | Model: RSR 15M1WN | Height M: 16 mm | Width W: 60 mm | Length L: 74.5 mm | Max Rail Length: 1800 mm | Dynamic Load C: 9.91 kN | Static Load C0: 14.9 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Ball Recirculation | Block Width: Wide | Block Length: Long (N type) | Application: High-temp / Clean room | Brand: THK |
