[THK] — Linear Ball Slide LSP13 (W12.2×H7.7)
Family ID: THK-LSP13

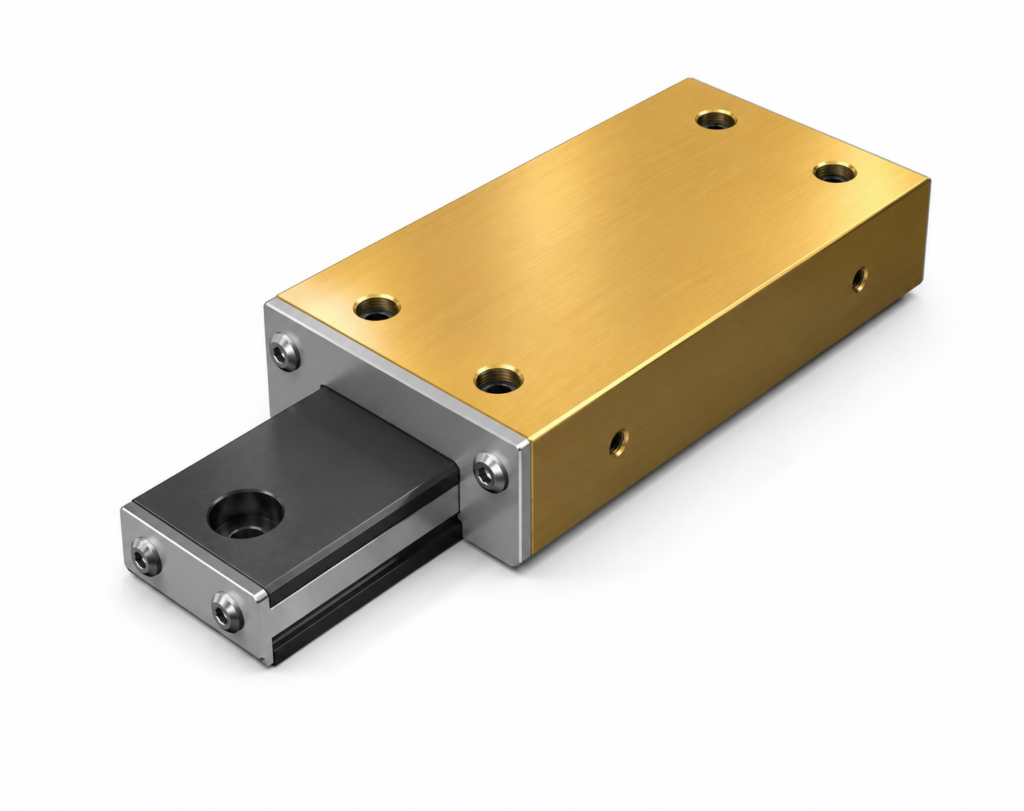

THK LSP Linear Ball Slide, LSP13 frame. Base width W1=12.2mm, height H=7.7mm. Mounting hole d×D×h = 3.3×6×3.3mm, table tap M3×5. Stroke range 15~50mm. Basic dynamic load rating C = 68.6~157 N; static C0 = 118~275 N.
3 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| LSP1340 | THK Linear Ball Slide LSP1340, stroke 15mm, C=68.6N, 37g | THK | Frame: LSP13 | Stroke: 15 mm | Slide Height (M): 13 mm | Slide Width (W): 25 mm | Slide Length (L): 42 mm | Base Width (W1): 12.2 mm | Base Height (H): 7.7 mm | Mounting Hole (d×D×h): 3.3×6×3.3 mm | Table Tap: M3×5 | Mass: 37 g | Basic Dynamic Load Rating C: 68.6 N | Basic Static Load Rating C0: 118 N | Static Allowable Moment MA=MB: 0.88 N·m | Static Allowable Moment MC: 0.49 N·m | ||
| LSP1365 | THK Linear Ball Slide LSP1365, stroke 25mm, C=118N, 60g | THK | Frame: LSP13 | Stroke: 25 mm | Slide Height (M): 13 mm | Slide Width (W): 25 mm | Slide Length (L): 67 mm | Base Width (W1): 12.2 mm | Base Height (H): 7.7 mm | Mounting Hole (d×D×h): 3.3×6×3.3 mm | Table Tap: M3×5 | Mass: 60 g | Basic Dynamic Load Rating C: 118 N | Basic Static Load Rating C0: 206 N | Static Allowable Moment MA=MB: 1.76 N·m | Static Allowable Moment MC: 0.98 N·m | ||
| LSP1390 | THK Linear Ball Slide LSP1390, stroke 50mm, C=157N, 85g | THK | Frame: LSP13 | Stroke: 50 mm | Slide Height (M): 13 mm | Slide Width (W): 25 mm | Slide Length (L): 92 mm | Base Width (W1): 12.2 mm | Base Height (H): 7.7 mm | Mounting Hole (d×D×h): 3.3×6×3.3 mm | Table Tap: M3×5 | Mass: 85 g | Basic Dynamic Load Rating C: 157 N | Basic Static Load Rating C0: 275 N | Static Allowable Moment MA=MB: 3.04 N·m | Static Allowable Moment MC: 1.27 N·m |
