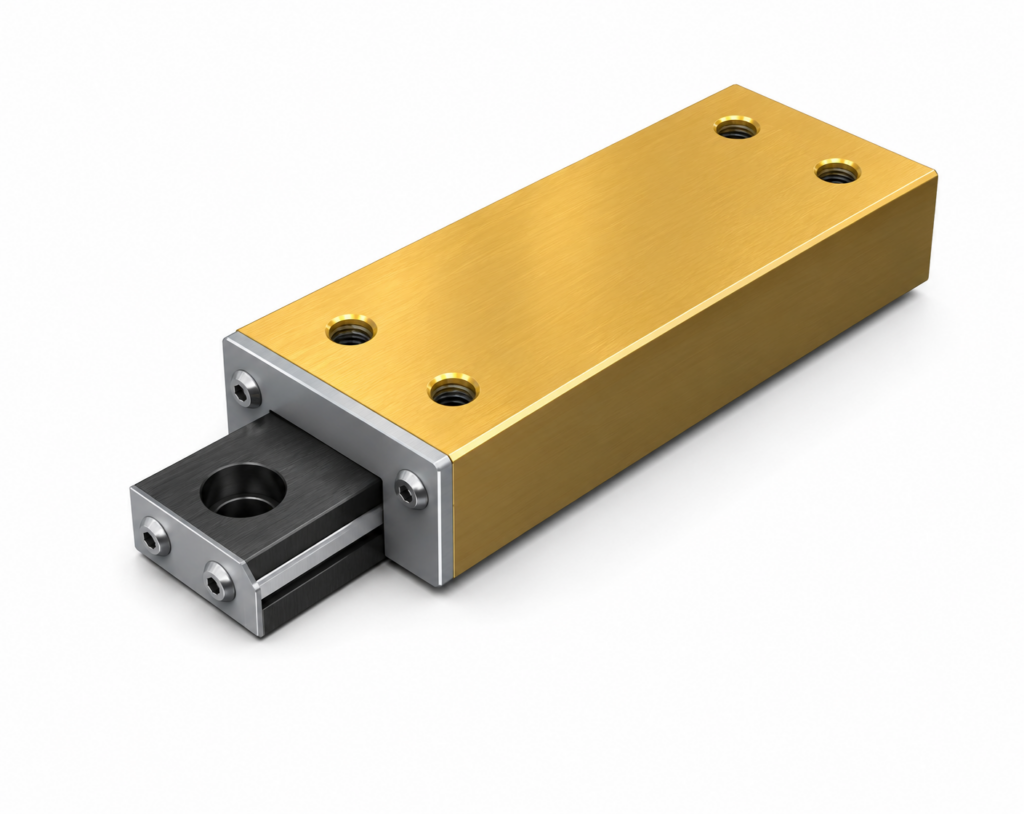

[THK] — Linear Ball Slide LS10 (W9.6×H6.2)
Family ID: THK-LS10
THK LS Linear Ball Slide, LS10 frame. Base width W1=9.6mm, height H=6.2mm. Mounting hole d×D×h = 3.3×6×3.1mm, table tap M3×3.5. Stroke range 13~50mm. Basic dynamic load rating C = 58.8~157.0 N; static C0 = 108.0~275.0 N.
3 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| LS1027 | THK Linear Ball Slide LS1027, stroke 13mm, C=58.8N, 13g | THK | Frame: LS10 | Stroke: 13 mm | Slide Height (M): 10 mm | Slide Width (W): 19.0 mm | Slide Length (L): 28.7 mm | Base Width (W1): 9.6 mm | Base Height (H): 6.2 mm | Mounting Hole (d×D×h): 3.3×6×3.1 mm | Table Tap: M3×3.5 | Mass: 13 g | Basic Dynamic Load Rating C: 58.8 N | Basic Static Load Rating C0: 108.0 N | Static Allowable Moment MA=MB: 0.29 N·m | Static Allowable Moment MC: 0.59 N·m | ||
| LS1052 | THK Linear Ball Slide LS1052, stroke 25mm, C=108.0N, 23g | THK | Frame: LS10 | Stroke: 25 mm | Slide Height (M): 10 mm | Slide Width (W): 19.0 mm | Slide Length (L): 53.7 mm | Base Width (W1): 9.6 mm | Base Height (H): 6.2 mm | Mounting Hole (d×D×h): 3.3×6×3.1 mm | Table Tap: M3×3.5 | Mass: 23 g | Basic Dynamic Load Rating C: 108.0 N | Basic Static Load Rating C0: 186.0 N | Static Allowable Moment MA=MB: 0.78 N·m | Static Allowable Moment MC: 1.08 N·m | ||
| LS1077 | THK Linear Ball Slide LS1077, stroke 50mm, C=157.0N, 34g | THK | Frame: LS10 | Stroke: 50 mm | Slide Height (M): 10 mm | Slide Width (W): 19.0 mm | Slide Length (L): 78.7 mm | Base Width (W1): 9.6 mm | Base Height (H): 6.2 mm | Mounting Hole (d×D×h): 3.3×6×3.1 mm | Table Tap: M3×3.5 | Mass: 34 g | Basic Dynamic Load Rating C: 157.0 N | Basic Static Load Rating C0: 275.0 N | Static Allowable Moment MA=MB: 1.47 N·m | Static Allowable Moment MC: 1.57 N·m |
