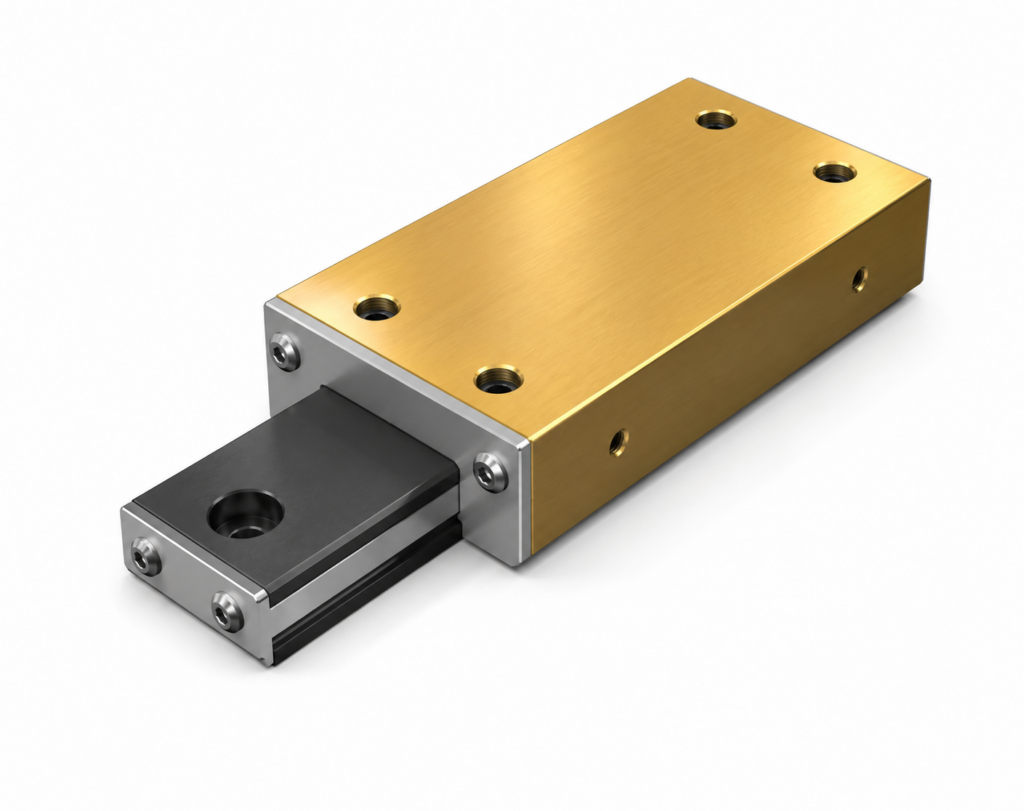

[THK] — Linear Ball Slide LSP20 (W22.3×H11)
Family ID: THK-LSP20
THK LSP Linear Ball Slide, LSP20 frame. Base width W1=22.3mm, height H=11.0mm. Mounting hole d×D×h = 5.3×9×5.3mm, table tap M5×8.2. Stroke range 25~75mm. Basic dynamic load rating C = 157~392 N; static C0 = 284~706 N.
3 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| LSP2050 | THK Linear Ball Slide LSP2050, stroke 25mm, C=157N, 114g | THK | Frame: LSP20 | Stroke: 25 mm | Slide Height (M): 20 mm | Slide Width (W): 44 mm | Slide Length (L): 53 mm | Base Width (W1): 22.3 mm | Base Height (H): 11.0 mm | Mounting Hole (d×D×h): 5.3×9×5.3 mm | Table Tap: M5×8.2 | Mass: 114 g | Basic Dynamic Load Rating C: 157 N | Basic Static Load Rating C0: 284 N | Static Allowable Moment MA=MB: 1.37 N·m | Static Allowable Moment MC: 2.25 N·m | ||
| LSP2080 | THK Linear Ball Slide LSP2080, stroke 50mm, C=304N, 184g | THK | Frame: LSP20 | Stroke: 50 mm | Slide Height (M): 20 mm | Slide Width (W): 44 mm | Slide Length (L): 83 mm | Base Width (W1): 22.3 mm | Base Height (H): 11.0 mm | Mounting Hole (d×D×h): 5.3×9×5.3 mm | Table Tap: M5×8.2 | Mass: 184 g | Basic Dynamic Load Rating C: 304 N | Basic Static Load Rating C0: 559 N | Static Allowable Moment MA=MB: 3.53 N·m | Static Allowable Moment MC: 4.51 N·m | ||
| LSP20100 | THK Linear Ball Slide LSP20100, stroke 75mm, C=392N, 231g | THK | Frame: LSP20 | Stroke: 75 mm | Slide Height (M): 20 mm | Slide Width (W): 44 mm | Slide Length (L): 103 mm | Base Width (W1): 22.3 mm | Base Height (H): 11.0 mm | Mounting Hole (d×D×h): 5.3×9×5.3 mm | Table Tap: M5×8.2 | Mass: 231 g | Basic Dynamic Load Rating C: 392 N | Basic Static Load Rating C0: 706 N | Static Allowable Moment MA=MB: 5.0 N·m | Static Allowable Moment MC: 5.69 N·m |
