Roller Guides
THK

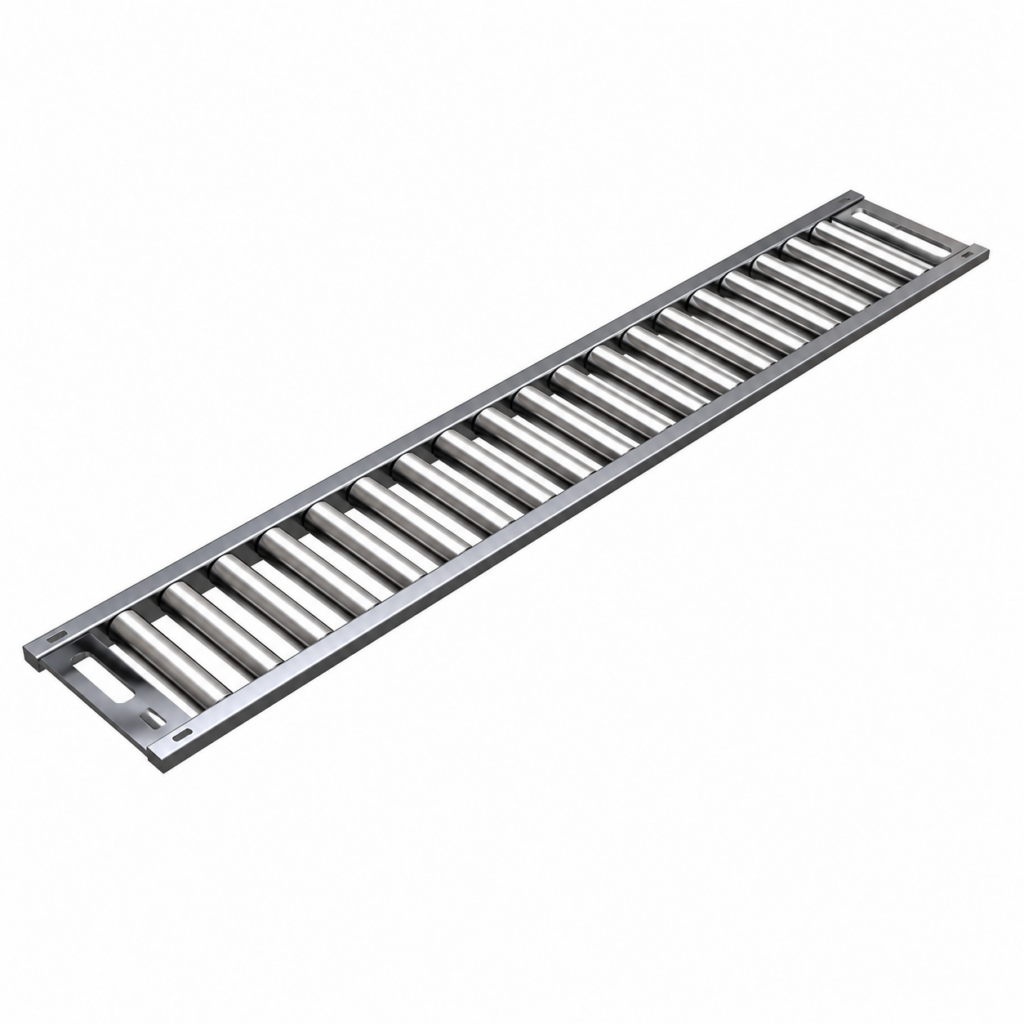

[THK] — Flat Roller Way FT
Family ID: THK-FT
THK FT type Flat Roller Way. Width b = 10~80mm, length 32~500mm. Roller diameter 2~10mm (standard) and 2.828~7.071mm (V-groove type). Basic dynamic load rating C = 5.2~459 kN; static C0 = 10.4~1900 kN. Custom lengths available on order (e.g. FT5038 P1-750L). V-type variants (FT4026V / FT5030V / FT10060V) for V-groove rail applications.
13 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| FT2010-32 | THK Flat Roller Way FT2010-32, b=10mm, L=32mm, Da=2.0mm, C=5.2kN | THK | Type: Standard | Width (b): 10 mm | Length (ℓ): 32 mm | Roller Diameter (Da): 2.0 mm | Roller Length (B): 7.8 mm | Number of Rollers (Z): 7 | Roller Pitch (P): 4.0 mm | Basic Dynamic Load Rating C: 5.2 kN | Basic Static Load Rating C0: 10.4 kN | Mass: 1.9 g | Custom Length: available on order | ||
| FT2515-45 | THK Flat Roller Way FT2515-45, b=15mm, L=45mm, Da=2.5mm, C=10.9kN | THK | Type: Standard | Width (b): 15 mm | Length (ℓ): 45 mm | Roller Diameter (Da): 2.5 mm | Roller Length (B): 11.8 mm | Number of Rollers (Z): 7 | Roller Pitch (P): 4.75 mm | Basic Dynamic Load Rating C: 10.9 kN | Basic Static Load Rating C0: 25.2 kN | Mass: 5.6 g | Custom Length: available on order | ||
| FT3020-60 | THK Flat Roller Way FT3020-60, b=20mm, L=60mm, Da=3.0mm, C=17.4kN | THK | Type: Standard | Width (b): 20 mm | Length (ℓ): 60 mm | Roller Diameter (Da): 3.0 mm | Roller Length (B): 15.8 mm | Number of Rollers (Z): 8 | Roller Pitch (P): 5.51 mm | Basic Dynamic Load Rating C: 17.4 kN | Basic Static Load Rating C0: 42.8 kN | Mass: 12.5 g | Custom Length: available on order | ||
| FT3525-75 | THK Flat Roller Way FT3525-75, b=25mm, L=75mm, Da=3.5mm, C=27.4kN | THK | Type: Standard | Width (b): 25 mm | Length (ℓ): 75 mm | Roller Diameter (Da): 3.5 mm | Roller Length (B): 19.8 mm | Number of Rollers (Z): 8 | Roller Pitch (P): 7.0 mm | Basic Dynamic Load Rating C: 27.4 kN | Basic Static Load Rating C0: 72.7 kN | Mass: 23.0 g | Custom Length: available on order | ||
| FT4030-150 | THK Flat Roller Way FT4030-150, b=30mm, L=150mm, Da=4.0mm, C=55.7kN | THK | Type: Standard | Width (b): 30 mm | Length (ℓ): 150 mm | Roller Diameter (Da): 4.0 mm | Roller Length (B): 25.8 mm | Number of Rollers (Z): 18 | Roller Pitch (P): 7.3 mm | Basic Dynamic Load Rating C: 55.7 kN | Basic Static Load Rating C0: 176.0 kN | Mass: 73.0 g | Custom Length: available on order | ||
| FT4035-150 | THK Flat Roller Way FT4035-150, b=35mm, L=150mm, Da=4.0mm, C=64.2kN | THK | Type: Standard | Width (b): 35 mm | Length (ℓ): 150 mm | Roller Diameter (Da): 4.0 mm | Roller Length (B): 30.8 mm | Number of Rollers (Z): 18 | Roller Pitch (P): 7.3 mm | Basic Dynamic Load Rating C: 64.2 kN | Basic Static Load Rating C0: 212.0 kN | Mass: 86.0 g | Custom Length: available on order | ||
| FT4026V-150 | THK Flat Roller Way FT4026V-150, b=26mm, L=150mm, Da=2.828mm, C=45.1kN | THK | Type: V-groove (FT-V) | Width (b): 26 mm | Length (ℓ): 150 mm | Roller Diameter (Da): 2.828 mm | Roller Length (B): 22.8 mm | Number of Rollers (Z): 22 | Roller Pitch (P): 6.0 mm | Basic Dynamic Load Rating C: 45.1 kN | Basic Static Load Rating C0: 155.0 kN | Mass: 45.0 g | Custom Length: available on order | ||
| FT5038-250 | THK Flat Roller Way FT5038-250, b=38mm, L=250mm, Da=5.0mm, C=109.0kN | THK | Type: Standard | Width (b): 38 mm | Length (ℓ): 250 mm | Roller Diameter (Da): 5.0 mm | Roller Length (B): 32.8 mm | Number of Rollers (Z): 21 | Roller Pitch (P): 11.0 mm | Basic Dynamic Load Rating C: 109.0 kN | Basic Static Load Rating C0: 387.0 kN | Mass: 195.0 g | Custom Length: available on order | ||
| FT5043-250 | THK Flat Roller Way FT5043-250, b=43mm, L=250mm, Da=5.0mm, C=122.0kN | THK | Type: Standard | Width (b): 43 mm | Length (ℓ): 250 mm | Roller Diameter (Da): 5.0 mm | Roller Length (B): 37.8 mm | Number of Rollers (Z): 21 | Roller Pitch (P): 11.0 mm | Basic Dynamic Load Rating C: 122.0 kN | Basic Static Load Rating C0: 449.0 kN | Mass: 200.0 g | Custom Length: available on order | ||
| FT5030V-250 | THK Flat Roller Way FT5030V-250, b=30mm, L=250mm, Da=3.535mm, C=78.0kN | THK | Type: V-groove (FT-V) | Width (b): 30 mm | Length (ℓ): 250 mm | Roller Diameter (Da): 3.535 mm | Roller Length (B): 26.8 mm | Number of Rollers (Z): 33 | Roller Pitch (P): 7.0 mm | Basic Dynamic Load Rating C: 78.0 kN | Basic Static Load Rating C0: 290.0 kN | Mass: 103.0 g | Custom Length: available on order | ||
| FT10054-400 | THK Flat Roller Way FT10054-400, b=54mm, L=400mm, Da=10.0mm, C=279.0kN | THK | Type: Standard | Width (b): 54 mm | Length (ℓ): 400 mm | Roller Diameter (Da): 10.0 mm | Roller Length (B): 46.0 mm | Number of Rollers (Z): 24 | Roller Pitch (P): 15.8 mm | Basic Dynamic Load Rating C: 279.0 kN | Basic Static Load Rating C0: 1000.0 kN | Mass: 870.0 g | Custom Length: available on order | ||
| FT10080-500 | THK Flat Roller Way FT10080-500, b=80mm, L=500mm, Da=10.0mm, C=459.0kN | THK | Type: Standard | Width (b): 80 mm | Length (ℓ): 500 mm | Roller Diameter (Da): 10.0 mm | Roller Length (B): 71.8 mm | Number of Rollers (Z): 30 | Roller Pitch (P): 16.0 mm | Basic Dynamic Load Rating C: 459.0 kN | Basic Static Load Rating C0: 1900.0 kN | Mass: 1610.0 g | Custom Length: available on order | ||
| FT10060V-500 | THK Flat Roller Way FT10060V-500, b=60mm, L=500mm, Da=7.071mm, C=301.0kN | THK | Type: V-groove (FT-V) | Width (b): 60 mm | Length (ℓ): 500 mm | Roller Diameter (Da): 7.071 mm | Roller Length (B): 52.8 mm | Number of Rollers (Z): 35 | Roller Pitch (P): 13.5 mm | Basic Dynamic Load Rating C: 301.0 kN | Basic Static Load Rating C0: 1270.0 kN | Mass: 870.0 g | Custom Length: available on order |
