![[THK] — Linear Roller Guide LRU (Inch Series)](https://prosourcemro.com/wp-content/uploads/2026/05/001-1037-1024x821.png)
Roller Guides
THK

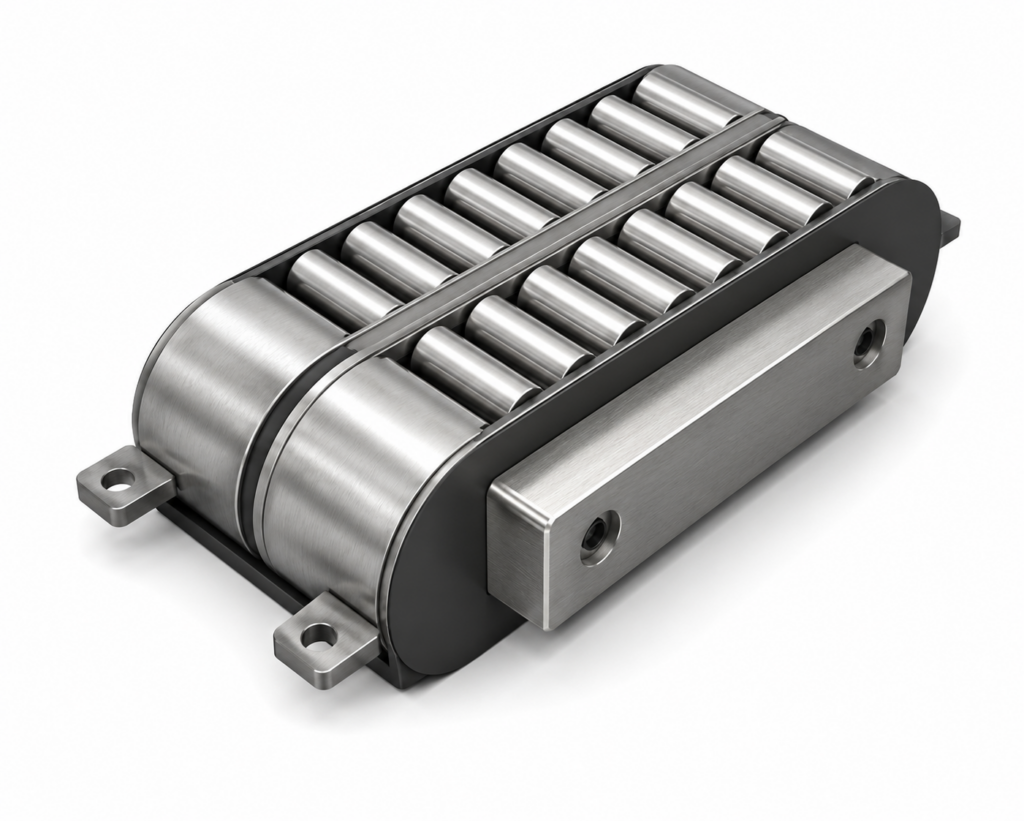

[THK] — Linear Roller Guide LRU (Inch Series)
Family ID: THK-LRU
THK LRU type Linear Roller Guide, inch dimension series. Width W1 = 22.23~76.2mm (9/16"~3"). Basic dynamic load rating C = 22.1~478 kN; static C0 = 42.5~807 kN. Refer to A10-15 for recommended mounting bolts.
10 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| LRU22.2 | THK Linear Roller Guide LRU22.2 (inch), W1=22.23mm, C=22.1kN, 0.09kg | THK | Series: Inch dimension | Width (W1): 22.23 mm | Thickness (T): 14.283 mm | Length (L): 51.0 mm | Mass: 0.09 kg | Basic Dynamic Load Rating C: 22.1 kN | Basic Static Load Rating C0: 42.5 kN | Note: See A10-15 for recommended mounting bolts | ||
| LRU25.4 | THK Linear Roller Guide LRU25.4 (inch), W1=25.4mm, C=41.9kN, 0.22kg | THK | Series: Inch dimension | Width (W1): 25.4 mm | Thickness (T): 19.05 mm | Length (L): 73.0 mm | Mass: 0.22 kg | Basic Dynamic Load Rating C: 41.9 kN | Basic Static Load Rating C0: 78.9 kN | Note: See A10-15 for recommended mounting bolts | ||
| LRU38.1 | THK Linear Roller Guide LRU38.1 (inch), W1=38.1mm, C=107.0kN, 0.7kg | THK | Series: Inch dimension | Width (W1): 38.1 mm | Thickness (T): 28.573 mm | Length (L): 101.6 mm | Mass: 0.7 kg | Basic Dynamic Load Rating C: 107.0 kN | Basic Static Load Rating C0: 198.0 kN | Note: See A10-15 for recommended mounting bolts | ||
| LRU50.8 | THK Linear Roller Guide LRU50.8 (inch), W1=50.8mm, C=171.0kN, 1.7kg | THK | Series: Inch dimension | Width (W1): 50.8 mm | Thickness (T): 38.098 mm | Length (L): 139.7 mm | Mass: 1.7 kg | Basic Dynamic Load Rating C: 171.0 kN | Basic Static Load Rating C0: 296.0 kN | Note: See A10-15 for recommended mounting bolts | ||
| LRU76.2 | THK Linear Roller Guide LRU76.2 (inch), W1=76.2mm, C=478.0kN, 5.7kg | THK | Series: Inch dimension | Width (W1): 76.2 mm | Thickness (T): 57.15 mm | Length (L): 206.4 mm | Mass: 5.7 kg | Basic Dynamic Load Rating C: 478.0 kN | Basic Static Load Rating C0: 807.0 kN | Note: See A10-15 for recommended mounting bolts | ||
| LRU22.2 | THK Linear Roller Guide LRU22.2 (inch), W1=22.23mm, C=22.1kN, 0.09kg | THK | Series: Inch dimension | Width (W1): 22.23 mm | Thickness (T): 14.283 mm | Length (L): 51.0 mm | Mass: 0.09 kg | Basic Dynamic Load Rating C: 22.1 kN | Basic Static Load Rating C0: 42.5 kN | Note: See A10-15 for recommended mounting bolts | ||
| LRU25.4 | THK Linear Roller Guide LRU25.4 (inch), W1=25.4mm, C=41.9kN, 0.22kg | THK | Series: Inch dimension | Width (W1): 25.4 mm | Thickness (T): 19.05 mm | Length (L): 73.0 mm | Mass: 0.22 kg | Basic Dynamic Load Rating C: 41.9 kN | Basic Static Load Rating C0: 78.9 kN | Note: See A10-15 for recommended mounting bolts | ||
| LRU38.1 | THK Linear Roller Guide LRU38.1 (inch), W1=38.1mm, C=107.0kN, 0.7kg | THK | Series: Inch dimension | Width (W1): 38.1 mm | Thickness (T): 28.573 mm | Length (L): 101.6 mm | Mass: 0.7 kg | Basic Dynamic Load Rating C: 107.0 kN | Basic Static Load Rating C0: 198.0 kN | Note: See A10-15 for recommended mounting bolts | ||
| LRU50.8 | THK Linear Roller Guide LRU50.8 (inch), W1=50.8mm, C=171.0kN, 1.7kg | THK | Series: Inch dimension | Width (W1): 50.8 mm | Thickness (T): 38.098 mm | Length (L): 139.7 mm | Mass: 1.7 kg | Basic Dynamic Load Rating C: 171.0 kN | Basic Static Load Rating C0: 296.0 kN | Note: See A10-15 for recommended mounting bolts | ||
| LRU76.2 | THK Linear Roller Guide LRU76.2 (inch), W1=76.2mm, C=478.0kN, 5.7kg | THK | Series: Inch dimension | Width (W1): 76.2 mm | Thickness (T): 57.15 mm | Length (L): 206.4 mm | Mass: 5.7 kg | Basic Dynamic Load Rating C: 478.0 kN | Basic Static Load Rating C0: 807.0 kN | Note: See A10-15 for recommended mounting bolts |
