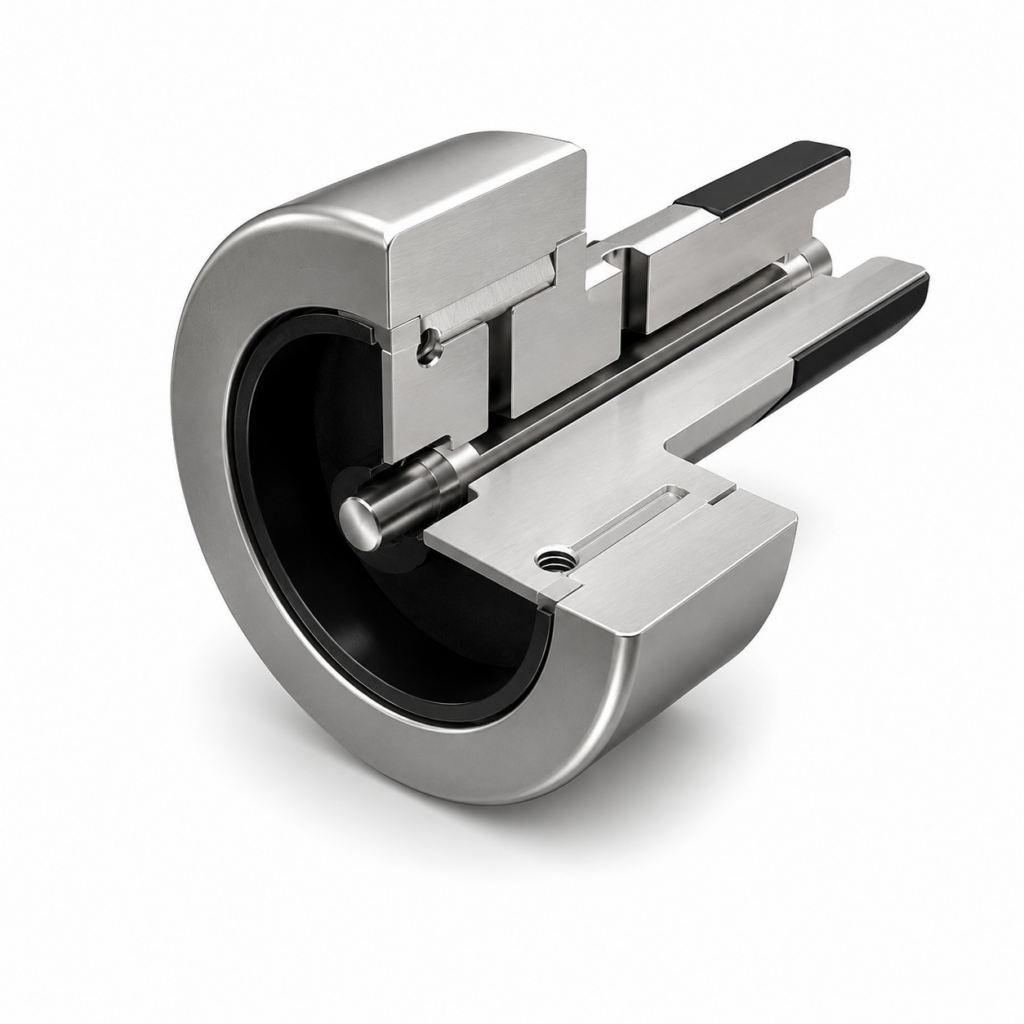

[THK] — Eccentric Cam Follower CFH-AB (Grease Nipple Type)
Family ID: THK-CFH-AB
THK CFH-AB type Eccentric Cam Follower with grease nipple. Same mounting hole as standard CF cam followers. Stud mounting base and head are eccentric by 0.25~1.0mm, enabling fine position adjustment by rotating the stud. Compact, high-precision one-piece eccentric structure. Stud diameter d = 12~30mm. Options: V (full needle), M (stainless), UU (seal), R (spherical outer ring). Spherical radius: R500 (CFH18 or smaller) / R1000 (CFH20 or larger).
11 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| CFH12-AB | THK Eccentric Cam Follower CFH12-AB, d=12mm, D=30mm, e=0.4mm, C(cage)=7.87kN | THK | Stud Diameter (d): 12 mm | Outer Diameter (D): 30 mm | Outer Ring Width (C): 14 mm | Stud Thread: M12×1.5 | Total Length (B): 40 mm | Eccentricity (e): 0.4 mm | Basic Dynamic Load Rating C (cage): 7.87 kN | Basic Static Load Rating C0 (cage): 9.79 kN | Basic Dynamic Load Rating C (full needle): 13.4 kN | Basic Static Load Rating C0 (full needle): 19.8 kN | Max Allowable Load F0 (cylindrical): 9.37 kN | Max Allowable Load F0 (spherical): 7.06 kN | Track Load Capacity (full needle): 2.45 kN | Limit Speed (cage): 14000 min⁻¹ | Limit Speed (full needle): 5800 min⁻¹ | Mass (cage): 105 g | Mass (full needle): 107 g | Options: V=full needle, M=stainless, UU=seal, R=spherical outer ring | Spherical radius: R500 | ||
| CFH12-1-AB | THK Eccentric Cam Follower CFH12-1-AB, d=12mm, D=32mm, e=0.4mm, C(cage)=7.87kN | THK | Stud Diameter (d): 12 mm | Outer Diameter (D): 32 mm | Outer Ring Width (C): 14 mm | Stud Thread: M12×1.5 | Total Length (B): 40 mm | Eccentricity (e): 0.4 mm | Basic Dynamic Load Rating C (cage): 7.87 kN | Basic Static Load Rating C0 (cage): 9.79 kN | Basic Dynamic Load Rating C (full needle): 13.4 kN | Basic Static Load Rating C0 (full needle): 19.8 kN | Max Allowable Load F0 (cylindrical): 9.37 kN | Max Allowable Load F0 (spherical): 7.45 kN | Track Load Capacity (full needle): 2.74 kN | Limit Speed (cage): 14000 min⁻¹ | Limit Speed (full needle): 5800 min⁻¹ | Mass (cage): 115 g | Mass (full needle): 117 g | Options: V=full needle, M=stainless, UU=seal, R=spherical outer ring | Spherical radius: R500 | ||
| CFH16-AB | THK Eccentric Cam Follower CFH16-AB, d=16mm, D=35mm, e=0.5mm, C(cage)=12.0kN | THK | Stud Diameter (d): 16 mm | Outer Diameter (D): 35 mm | Outer Ring Width (C): 18 mm | Stud Thread: M16×1.5 | Total Length (B): 52 mm | Eccentricity (e): 0.5 mm | Basic Dynamic Load Rating C (cage): 12.0 kN | Basic Static Load Rating C0 (cage): 18.3 kN | Basic Dynamic Load Rating C (full needle): 20.6 kN | Basic Static Load Rating C0 (full needle): 37.6 kN | Max Allowable Load F0 (cylindrical): 17.3 kN | Max Allowable Load F0 (spherical): 11.2 kN | Track Load Capacity (full needle): 3.14 kN | Limit Speed (cage): 10000 min⁻¹ | Limit Speed (full needle): 4500 min⁻¹ | Mass (cage): 205 g | Mass (full needle): 207 g | Options: V=full needle, M=stainless, UU=seal, R=spherical outer ring | Spherical radius: R500 | ||
| CFH18-AB | THK Eccentric Cam Follower CFH18-AB, d=18mm, D=40mm, e=0.6mm, C(cage)=14.7kN | THK | Stud Diameter (d): 18 mm | Outer Diameter (D): 40 mm | Outer Ring Width (C): 20 mm | Stud Thread: M18×1.5 | Total Length (B): 58 mm | Eccentricity (e): 0.6 mm | Basic Dynamic Load Rating C (cage): 14.7 kN | Basic Static Load Rating C0 (cage): 25.2 kN | Basic Dynamic Load Rating C (full needle): 25.2 kN | Basic Static Load Rating C0 (full needle): 51.3 kN | Max Allowable Load F0 (cylindrical): 26.1 kN | Max Allowable Load F0 (spherical): 14.4 kN | Track Load Capacity (full needle): 3.72 kN | Limit Speed (cage): 8500 min⁻¹ | Limit Speed (full needle): 3800 min⁻¹ | Mass (cage): 295 g | Mass (full needle): 300 g | Options: V=full needle, M=stainless, UU=seal, R=spherical outer ring | Spherical radius: R500 | ||
| CFH20-AB | THK Eccentric Cam Follower CFH20-AB, d=20mm, D=52mm, e=0.7mm, C(cage)=20.7kN | THK | Stud Diameter (d): 20 mm | Outer Diameter (D): 52 mm | Outer Ring Width (C): 24 mm | Stud Thread: M20×1.5 | Total Length (B): 66 mm | Eccentricity (e): 0.7 mm | Basic Dynamic Load Rating C (cage): 20.7 kN | Basic Static Load Rating C0 (cage): 34.8 kN | Basic Dynamic Load Rating C (full needle): 33.2 kN | Basic Static Load Rating C0 (full needle): 64.8 kN | Max Allowable Load F0 (cylindrical): 32.1 kN | Max Allowable Load F0 (spherical): 23.2 kN | Track Load Capacity (full needle): 8.23 kN | Limit Speed (cage): 7000 min⁻¹ | Limit Speed (full needle): 3400 min⁻¹ | Mass (cage): 525 g | Mass (full needle): 530 g | Options: V=full needle, M=stainless, UU=seal, R=spherical outer ring | Spherical radius: R1000 | ||
| CFH20-1-AB | THK Eccentric Cam Follower CFH20-1-AB, d=20mm, D=47mm, e=0.7mm, C(cage)=20.7kN | THK | Stud Diameter (d): 20 mm | Outer Diameter (D): 47 mm | Outer Ring Width (C): 24 mm | Stud Thread: M20×1.5 | Total Length (B): 66 mm | Eccentricity (e): 0.7 mm | Basic Dynamic Load Rating C (cage): 20.7 kN | Basic Static Load Rating C0 (cage): 34.8 kN | Basic Dynamic Load Rating C (full needle): 33.2 kN | Basic Static Load Rating C0 (full needle): 64.8 kN | Max Allowable Load F0 (cylindrical): 32.1 kN | Max Allowable Load F0 (spherical): 21.0 kN | Track Load Capacity (full needle): 7.15 kN | Limit Speed (cage): 7000 min⁻¹ | Limit Speed (full needle): 3400 min⁻¹ | Mass (cage): 450 g | Mass (full needle): 455 g | Options: V=full needle, M=stainless, UU=seal, R=spherical outer ring | Spherical radius: R1000 | ||
| CFH24-AB | THK Eccentric Cam Follower CFH24-AB, d=24mm, D=62mm, e=0.8mm, C(cage)=30.6kN | THK | Stud Diameter (d): 24 mm | Outer Diameter (D): 62 mm | Outer Ring Width (C): 29 mm | Stud Thread: M24×1.5 | Total Length (B): 80 mm | Eccentricity (e): 0.8 mm | Basic Dynamic Load Rating C (cage): 30.6 kN | Basic Static Load Rating C0 (cage): 53.2 kN | Basic Dynamic Load Rating C (full needle): 46.7 kN | Basic Static Load Rating C0 (full needle): 92.9 kN | Max Allowable Load F0 (cylindrical): 49.5 kN | Max Allowable Load F0 (spherical): 34.2 kN | Track Load Capacity (full needle): 10.5 kN | Limit Speed (cage): 6500 min⁻¹ | Limit Speed (full needle): 2900 min⁻¹ | Mass (cage): 915 g | Mass (full needle): 925 g | Options: V=full needle, M=stainless, UU=seal, R=spherical outer ring | Spherical radius: R1000 | ||
| CFH24-1-AB | THK Eccentric Cam Follower CFH24-1-AB, d=24mm, D=72mm, e=0.8mm, C(cage)=30.6kN | THK | Stud Diameter (d): 24 mm | Outer Diameter (D): 72 mm | Outer Ring Width (C): 29 mm | Stud Thread: M24×1.5 | Total Length (B): 80 mm | Eccentricity (e): 0.8 mm | Basic Dynamic Load Rating C (cage): 30.6 kN | Basic Static Load Rating C0 (cage): 53.2 kN | Basic Dynamic Load Rating C (full needle): 46.7 kN | Basic Static Load Rating C0 (full needle): 92.9 kN | Max Allowable Load F0 (cylindrical): 49.5 kN | Max Allowable Load F0 (spherical): 39.8 kN | Track Load Capacity (full needle): 12.9 kN | Limit Speed (cage): 6500 min⁻¹ | Limit Speed (full needle): 2900 min⁻¹ | Mass (cage): 1150 g | Mass (full needle): 1160 g | Options: V=full needle, M=stainless, UU=seal, R=spherical outer ring | Spherical radius: R1000 | ||
| CFH30-AB | THK Eccentric Cam Follower CFH30-AB, d=30mm, D=80mm, e=1.0mm, C(cage)=45.4kN | THK | Stud Diameter (d): 30 mm | Outer Diameter (D): 80 mm | Outer Ring Width (C): 35 mm | Stud Thread: M30×1.5 | Total Length (B): 100 mm | Eccentricity (e): 1.0 mm | Basic Dynamic Load Rating C (cage): 45.4 kN | Basic Static Load Rating C0 (cage): 87.6 kN | Basic Dynamic Load Rating C (full needle): 67.6 kN | Basic Static Load Rating C0 (full needle): 145 kN | Max Allowable Load F0 (cylindrical): 73.7 kN | Max Allowable Load F0 (spherical): 52.6 kN | Track Load Capacity (full needle): 14.9 kN | Limit Speed (cage): 5000 min⁻¹ | Limit Speed (full needle): 2300 min⁻¹ | Mass (cage): 1880 g | Mass (full needle): 1890 g | Options: V=full needle, M=stainless, UU=seal, R=spherical outer ring | Spherical radius: R1000 | ||
| CFH30-1-AB | THK Eccentric Cam Follower CFH30-1-AB, d=30mm, D=85mm, e=1.0mm, C(cage)=45.4kN | THK | Stud Diameter (d): 30 mm | Outer Diameter (D): 85 mm | Outer Ring Width (C): 35 mm | Stud Thread: M30×1.5 | Total Length (B): 100 mm | Eccentricity (e): 1.0 mm | Basic Dynamic Load Rating C (cage): 45.4 kN | Basic Static Load Rating C0 (cage): 87.6 kN | Basic Dynamic Load Rating C (full needle): 67.6 kN | Basic Static Load Rating C0 (full needle): 145 kN | Max Allowable Load F0 (cylindrical): 73.7 kN | Max Allowable Load F0 (spherical): 56.0 kN | Track Load Capacity (full needle): 16.1 kN | Limit Speed (cage): 5000 min⁻¹ | Limit Speed (full needle): 2300 min⁻¹ | Mass (cage): 1950 g | Mass (full needle): 1960 g | Options: V=full needle, M=stainless, UU=seal, R=spherical outer ring | Spherical radius: R1000 | ||
| CFH30-2-AB | THK Eccentric Cam Follower CFH30-2-AB, d=30mm, D=90mm, e=1.0mm, C(cage)=45.4kN | THK | Stud Diameter (d): 30 mm | Outer Diameter (D): 90 mm | Outer Ring Width (C): 35 mm | Stud Thread: M30×1.5 | Total Length (B): 100 mm | Eccentricity (e): 1.0 mm | Basic Dynamic Load Rating C (cage): 45.4 kN | Basic Static Load Rating C0 (cage): 87.6 kN | Basic Dynamic Load Rating C (full needle): 67.6 kN | Basic Static Load Rating C0 (full needle): 145 kN | Max Allowable Load F0 (cylindrical): 73.7 kN | Max Allowable Load F0 (spherical): 59.3 kN | Track Load Capacity (full needle): 17.3 kN | Limit Speed (cage): 5000 min⁻¹ | Limit Speed (full needle): 2300 min⁻¹ | Mass (cage): 2000 g | Mass (full needle): 2010 g | Options: V=full needle, M=stainless, UU=seal, R=spherical outer ring | Spherical radius: R1000 |
