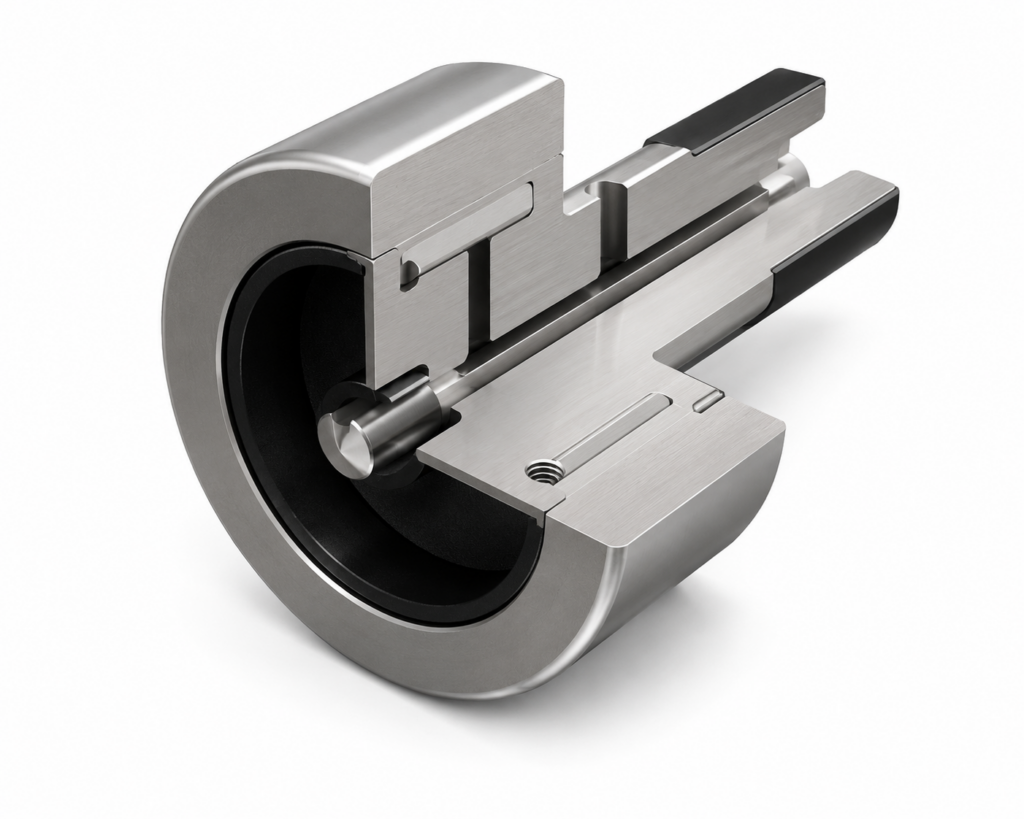

[THK] — Cam Follower CF-AB (Grease Nipple Type)
Family ID: THK-CF-AB
THK CF-AB type Cam Follower with grease nipple. Hexagonal socket at both stud ends with grease nipple for bidirectional mounting and lubrication. Stud diameter d = 12~30mm, outer diameter D = 30~90mm. Cage or full-complement needle roller options. Options: V (full needle), M (stainless), UU (seal), R (spherical outer ring). Cylindrical track C = 7.87~45.4 kN; spherical track R available (R500 for CF12~18, R1000 for CF20+).
11 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| CF12-AB | THK Cam Follower CF12-AB, d=12mm, D=30mm, C(cage)=7.87kN | THK | Stud Diameter (d): 12 mm | Outer Diameter (D): 30 mm | Outer Ring Width (C): 14 mm | Stud Thread: M12×1.5 | Total Length (B): 40 mm | Basic Dynamic Load Rating C (cage): 7.87 kN | Basic Static Load Rating C0 (cage): 9.79 kN | Basic Dynamic Load Rating C (full needle): 13.4 kN | Basic Static Load Rating C0 (full needle): 19.8 kN | Max Allowable Load F0 (cylindrical): 9.37 kN | Max Allowable Load F0 (spherical): 7.06 kN | Track Load Capacity (full needle): 2.45 kN | Limit Speed (cage): 14000 min⁻¹ | Limit Speed (full needle): 5800 min⁻¹ | Mass (cage): 105 g | Mass (full needle): 107 g | Options: V=full needle, M=stainless, UU=seal, R=spherical outer ring | Spherical radius: R500 (CF12~18) / R1000 (CF20+) | ||
| CF12-1-AB | THK Cam Follower CF12-1-AB, d=12mm, D=32mm, C(cage)=7.87kN | THK | Stud Diameter (d): 12 mm | Outer Diameter (D): 32 mm | Outer Ring Width (C): 14 mm | Stud Thread: M12×1.5 | Total Length (B): 40 mm | Basic Dynamic Load Rating C (cage): 7.87 kN | Basic Static Load Rating C0 (cage): 9.79 kN | Basic Dynamic Load Rating C (full needle): 13.4 kN | Basic Static Load Rating C0 (full needle): 19.8 kN | Max Allowable Load F0 (cylindrical): 9.37 kN | Max Allowable Load F0 (spherical): 7.45 kN | Track Load Capacity (full needle): 2.74 kN | Limit Speed (cage): 14000 min⁻¹ | Limit Speed (full needle): 5800 min⁻¹ | Mass (cage): 115 g | Mass (full needle): 117 g | Options: V=full needle, M=stainless, UU=seal, R=spherical outer ring | Spherical radius: R500 (CF12~18) / R1000 (CF20+) | ||
| CF16-AB | THK Cam Follower CF16-AB, d=16mm, D=35mm, C(cage)=12.0kN | THK | Stud Diameter (d): 16 mm | Outer Diameter (D): 35 mm | Outer Ring Width (C): 18 mm | Stud Thread: M16×1.5 | Total Length (B): 52 mm | Basic Dynamic Load Rating C (cage): 12.0 kN | Basic Static Load Rating C0 (cage): 18.3 kN | Basic Dynamic Load Rating C (full needle): 20.6 kN | Basic Static Load Rating C0 (full needle): 37.6 kN | Max Allowable Load F0 (cylindrical): 17.3 kN | Max Allowable Load F0 (spherical): 11.2 kN | Track Load Capacity (full needle): 3.14 kN | Limit Speed (cage): 10000 min⁻¹ | Limit Speed (full needle): 4500 min⁻¹ | Mass (cage): 205 g | Mass (full needle): 207 g | Options: V=full needle, M=stainless, UU=seal, R=spherical outer ring | Spherical radius: R500 (CF12~18) / R1000 (CF20+) | ||
| CF18-AB | THK Cam Follower CF18-AB, d=18mm, D=40mm, C(cage)=14.7kN | THK | Stud Diameter (d): 18 mm | Outer Diameter (D): 40 mm | Outer Ring Width (C): 20 mm | Stud Thread: M18×1.5 | Total Length (B): 58 mm | Basic Dynamic Load Rating C (cage): 14.7 kN | Basic Static Load Rating C0 (cage): 25.2 kN | Basic Dynamic Load Rating C (full needle): 25.2 kN | Basic Static Load Rating C0 (full needle): 51.3 kN | Max Allowable Load F0 (cylindrical): 26.1 kN | Max Allowable Load F0 (spherical): 14.4 kN | Track Load Capacity (full needle): 3.72 kN | Limit Speed (cage): 8500 min⁻¹ | Limit Speed (full needle): 3800 min⁻¹ | Mass (cage): 295 g | Mass (full needle): 300 g | Options: V=full needle, M=stainless, UU=seal, R=spherical outer ring | Spherical radius: R500 (CF12~18) / R1000 (CF20+) | ||
| CF20-AB | THK Cam Follower CF20-AB, d=20mm, D=52mm, C(cage)=20.7kN | THK | Stud Diameter (d): 20 mm | Outer Diameter (D): 52 mm | Outer Ring Width (C): 24 mm | Stud Thread: M20×1.5 | Total Length (B): 66 mm | Basic Dynamic Load Rating C (cage): 20.7 kN | Basic Static Load Rating C0 (cage): 34.8 kN | Basic Dynamic Load Rating C (full needle): 33.2 kN | Basic Static Load Rating C0 (full needle): 64.8 kN | Max Allowable Load F0 (cylindrical): 32.1 kN | Max Allowable Load F0 (spherical): 23.2 kN | Track Load Capacity (full needle): 8.23 kN | Limit Speed (cage): 7000 min⁻¹ | Limit Speed (full needle): 3400 min⁻¹ | Mass (cage): 525 g | Mass (full needle): 530 g | Options: V=full needle, M=stainless, UU=seal, R=spherical outer ring | Spherical radius: R500 (CF12~18) / R1000 (CF20+) | ||
| CF20-1-AB | THK Cam Follower CF20-1-AB, d=20mm, D=47mm, C(cage)=20.7kN | THK | Stud Diameter (d): 20 mm | Outer Diameter (D): 47 mm | Outer Ring Width (C): 24 mm | Stud Thread: M20×1.5 | Total Length (B): 66 mm | Basic Dynamic Load Rating C (cage): 20.7 kN | Basic Static Load Rating C0 (cage): 34.8 kN | Basic Dynamic Load Rating C (full needle): 33.2 kN | Basic Static Load Rating C0 (full needle): 64.8 kN | Max Allowable Load F0 (cylindrical): 32.1 kN | Max Allowable Load F0 (spherical): 21.0 kN | Track Load Capacity (full needle): 7.15 kN | Limit Speed (cage): 7000 min⁻¹ | Limit Speed (full needle): 3400 min⁻¹ | Mass (cage): 450 g | Mass (full needle): 455 g | Options: V=full needle, M=stainless, UU=seal, R=spherical outer ring | Spherical radius: R500 (CF12~18) / R1000 (CF20+) | ||
| CF24-AB | THK Cam Follower CF24-AB, d=24mm, D=62mm, C(cage)=30.6kN | THK | Stud Diameter (d): 24 mm | Outer Diameter (D): 62 mm | Outer Ring Width (C): 29 mm | Stud Thread: M24×1.5 | Total Length (B): 80 mm | Basic Dynamic Load Rating C (cage): 30.6 kN | Basic Static Load Rating C0 (cage): 53.2 kN | Basic Dynamic Load Rating C (full needle): 46.7 kN | Basic Static Load Rating C0 (full needle): 92.9 kN | Max Allowable Load F0 (cylindrical): 49.5 kN | Max Allowable Load F0 (spherical): 34.2 kN | Track Load Capacity (full needle): 10.5 kN | Limit Speed (cage): 6500 min⁻¹ | Limit Speed (full needle): 2900 min⁻¹ | Mass (cage): 915 g | Mass (full needle): 925 g | Options: V=full needle, M=stainless, UU=seal, R=spherical outer ring | Spherical radius: R500 (CF12~18) / R1000 (CF20+) | ||
| CF24-1-AB | THK Cam Follower CF24-1-AB, d=24mm, D=72mm, C(cage)=30.6kN | THK | Stud Diameter (d): 24 mm | Outer Diameter (D): 72 mm | Outer Ring Width (C): 29 mm | Stud Thread: M24×1.5 | Total Length (B): 80 mm | Basic Dynamic Load Rating C (cage): 30.6 kN | Basic Static Load Rating C0 (cage): 53.2 kN | Basic Dynamic Load Rating C (full needle): 46.7 kN | Basic Static Load Rating C0 (full needle): 92.9 kN | Max Allowable Load F0 (cylindrical): 49.5 kN | Max Allowable Load F0 (spherical): 39.8 kN | Track Load Capacity (full needle): 12.9 kN | Limit Speed (cage): 6500 min⁻¹ | Limit Speed (full needle): 2900 min⁻¹ | Mass (cage): 1150 g | Mass (full needle): 1160 g | Options: V=full needle, M=stainless, UU=seal, R=spherical outer ring | Spherical radius: R500 (CF12~18) / R1000 (CF20+) | ||
| CF30-AB | THK Cam Follower CF30-AB, d=30mm, D=80mm, C(cage)=45.4kN | THK | Stud Diameter (d): 30 mm | Outer Diameter (D): 80 mm | Outer Ring Width (C): 35 mm | Stud Thread: M30×1.5 | Total Length (B): 100 mm | Basic Dynamic Load Rating C (cage): 45.4 kN | Basic Static Load Rating C0 (cage): 87.6 kN | Basic Dynamic Load Rating C (full needle): 67.6 kN | Basic Static Load Rating C0 (full needle): 145 kN | Max Allowable Load F0 (cylindrical): 73.7 kN | Max Allowable Load F0 (spherical): 52.6 kN | Track Load Capacity (full needle): 14.9 kN | Limit Speed (cage): 5000 min⁻¹ | Limit Speed (full needle): 2300 min⁻¹ | Mass (cage): 1880 g | Mass (full needle): 1890 g | Options: V=full needle, M=stainless, UU=seal, R=spherical outer ring | Spherical radius: R500 (CF12~18) / R1000 (CF20+) | ||
| CF30-1-AB | THK Cam Follower CF30-1-AB, d=30mm, D=85mm, C(cage)=45.4kN | THK | Stud Diameter (d): 30 mm | Outer Diameter (D): 85 mm | Outer Ring Width (C): 35 mm | Stud Thread: M30×1.5 | Total Length (B): 100 mm | Basic Dynamic Load Rating C (cage): 45.4 kN | Basic Static Load Rating C0 (cage): 87.6 kN | Basic Dynamic Load Rating C (full needle): 67.6 kN | Basic Static Load Rating C0 (full needle): 145 kN | Max Allowable Load F0 (cylindrical): 73.7 kN | Max Allowable Load F0 (spherical): 56.0 kN | Track Load Capacity (full needle): 16.1 kN | Limit Speed (cage): 5000 min⁻¹ | Limit Speed (full needle): 2300 min⁻¹ | Mass (cage): 1950 g | Mass (full needle): 1960 g | Options: V=full needle, M=stainless, UU=seal, R=spherical outer ring | Spherical radius: R500 (CF12~18) / R1000 (CF20+) | ||
| CF30-2-AB | THK Cam Follower CF30-2-AB, d=30mm, D=90mm, C(cage)=45.4kN | THK | Stud Diameter (d): 30 mm | Outer Diameter (D): 90 mm | Outer Ring Width (C): 35 mm | Stud Thread: M30×1.5 | Total Length (B): 100 mm | Basic Dynamic Load Rating C (cage): 45.4 kN | Basic Static Load Rating C0 (cage): 87.6 kN | Basic Dynamic Load Rating C (full needle): 67.6 kN | Basic Static Load Rating C0 (full needle): 145 kN | Max Allowable Load F0 (cylindrical): 73.7 kN | Max Allowable Load F0 (spherical): 59.3 kN | Track Load Capacity (full needle): 17.3 kN | Limit Speed (cage): 5000 min⁻¹ | Limit Speed (full needle): 2300 min⁻¹ | Mass (cage): 2000 g | Mass (full needle): 2010 g | Options: V=full needle, M=stainless, UU=seal, R=spherical outer ring | Spherical radius: R500 (CF12~18) / R1000 (CF20+) |
