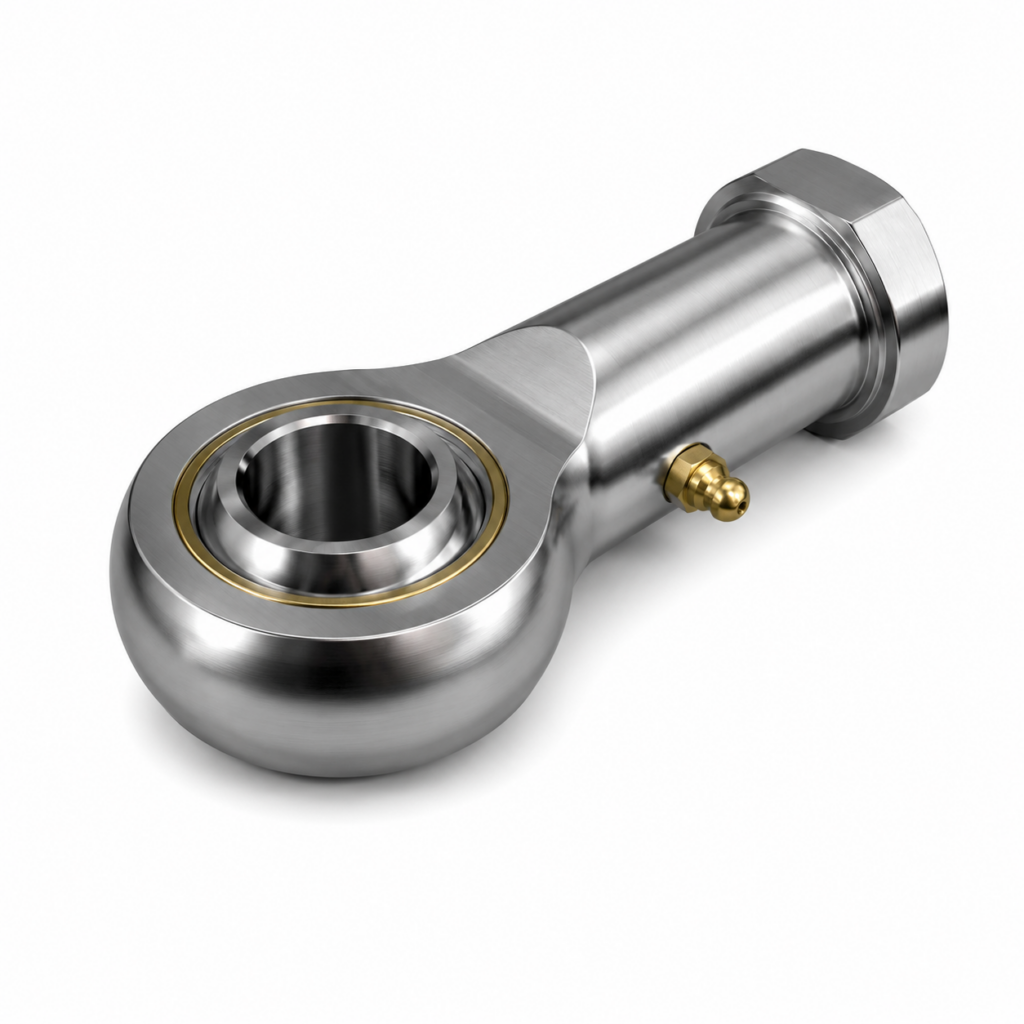

[THK] — Rod End PHS (Female Thread Type)
Family ID: THK-PHS
THK PHS type Rod End with female (internal) thread. Steel holder (S35C, chromate) with spherical inner ring (SUJ2, 58HRC+) and bronze alloy bushing. Spherical outer surface hard chrome plated; high rigidity, wear and corrosion resistance. Ball diameter (inch series): 11.112~50.8mm (7/16"~2"). Shaft fit: h7 (normal load) or p6 (indeterminate load direction). Lubrication via grease nipple. Left-hand thread: suffix L.
12 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| PHS5 | THK Rod End PHS5 (female), thread=M5×0.8, Da=11.112mm, Cs=5590N | THK | Thread (female): M5×0.8 | Total Length (L): 35 mm | Holder Diameter (D): 16 mm | Ball Diameter (Da): 11.112 mm (7/16") | Bore Diameter (d): 5 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/30° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 5590 N | Mass: 16.5 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | ||
| PHS6 | THK Rod End PHS6 (female), thread=M6×1, Da=12.7mm, Cs=6860N | THK | Thread (female): M6×1 | Total Length (L): 39 mm | Holder Diameter (D): 18 mm | Ball Diameter (Da): 12.7 mm (1/2") | Bore Diameter (d): 6 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/30° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 6860 N | Mass: 25.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | ||
| PHS8 | THK Rod End PHS8 (female), thread=M8×1.25, Da=15.875mm, Cs=9800N | THK | Thread (female): M8×1.25 | Total Length (L): 47 mm | Holder Diameter (D): 22 mm | Ball Diameter (Da): 15.875 mm (5/8") | Bore Diameter (d): 8 mm | Allowable Tilt Angle α1/α2/α3: 8°/14°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 9800 N | Mass: 43.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | ||
| PHS10 | THK Rod End PHS10 (female), thread=M10×1.5, Da=19.05mm, Cs=13200N | THK | Thread (female): M10×1.5 | Total Length (L): 56 mm | Holder Diameter (D): 26 mm | Ball Diameter (Da): 19.05 mm (3/4") | Bore Diameter (d): 10 mm | Allowable Tilt Angle α1/α2/α3: 8°/14°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 13200 N | Mass: 72.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | ||
| PHS12 | THK Rod End PHS12 (female), thread=M12×1.75, Da=22.225mm, Cs=16700N | THK | Thread (female): M12×1.75 | Total Length (L): 65 mm | Holder Diameter (D): 30 mm | Ball Diameter (Da): 22.225 mm (7/8") | Bore Diameter (d): 12 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 16700 N | Mass: 107.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | ||
| PHS14 | THK Rod End PHS14 (female), thread=M14×2, Da=25.4mm, Cs=20600N | THK | Thread (female): M14×2 | Total Length (L): 74 mm | Holder Diameter (D): 34 mm | Ball Diameter (Da): 25.4 mm (1") | Bore Diameter (d): 14 mm | Allowable Tilt Angle α1/α2/α3: 10°/16°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 20600 N | Mass: 160.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | ||
| PHS16 | THK Rod End PHS16 (female), thread=M16×2, Da=28.575mm, Cs=25000N | THK | Thread (female): M16×2 | Total Length (L): 83 mm | Holder Diameter (D): 38 mm | Ball Diameter (Da): 28.575 mm (1-1/8") | Bore Diameter (d): 16 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 25000 N | Mass: 210.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | ||
| PHS18 | THK Rod End PHS18 (female), thread=M18×1.5, Da=31.75mm, Cs=29400N | THK | Thread (female): M18×1.5 | Total Length (L): 92 mm | Holder Diameter (D): 42 mm | Ball Diameter (Da): 31.75 mm (1-1/4") | Bore Diameter (d): 18 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 29400 N | Mass: 295.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | ||
| PHS20 | THK Rod End PHS20 (female), thread=M20×1.5, Da=34.925mm, Cs=34300N | THK | Thread (female): M20×1.5 | Total Length (L): 100 mm | Holder Diameter (D): 46 mm | Ball Diameter (Da): 34.925 mm (1-3/8") | Bore Diameter (d): 20 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 34300 N | Mass: 380.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | ||
| PHS22 | THK Rod End PHS22 (female), thread=M22×1.5, Da=38.1mm, Cs=41200N | THK | Thread (female): M22×1.5 | Total Length (L): 109 mm | Holder Diameter (D): 50 mm | Ball Diameter (Da): 38.1 mm (1-1/2") | Bore Diameter (d): 22 mm | Allowable Tilt Angle α1/α2/α3: 10°/15°/23° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 41200 N | Mass: 490.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | ||
| PHS25 | THK Rod End PHS25 (female), thread=M24×2, Da=42.862mm, Cs=72500N | THK | Thread (female): M24×2 | Total Length (L): 124 mm | Holder Diameter (D): 60 mm | Ball Diameter (Da): 42.862 mm (1-11/16") | Bore Diameter (d): 25 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/23° | Radial Clearance: ≤0.8 mm | Static Load Capacity (Cs): 72500 N | Mass: 750.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix | ||
| PHS30 | THK Rod End PHS30 (female), thread=M30×2, Da=50.8mm, Cs=92200N | THK | Thread (female): M30×2 | Total Length (L): 145 mm | Holder Diameter (D): 70 mm | Ball Diameter (Da): 50.8 mm (2") | Bore Diameter (d): 30 mm | Allowable Tilt Angle α1/α2/α3: 10°/17°/23° | Radial Clearance: ≤0.8 mm | Static Load Capacity (Cs): 92200 N | Mass: 1130.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ (hard chrome on spherical surface) | Bushing: Bronze alloy | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix |
