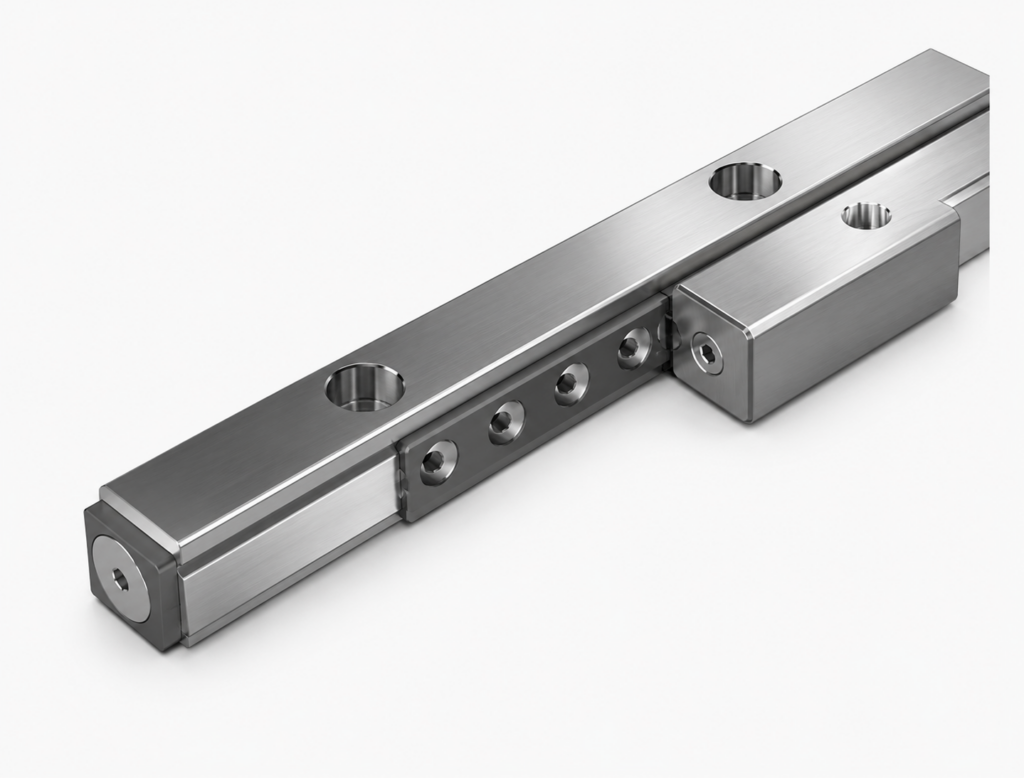

[THK] — Cross Roller Guide VR15
Family ID: THK-VR15
Cross Roller Guide VR15 type. Rail length 300~1200mm, 8~33 rollers per set. Basic dynamic load rating C_Z = 27.9 kN per roller; static C0Z = 26.8 kN per roller. 4-rail + 2-cage assembly (1 set). Roller diameter 15.081 mm (cross arrangement). Stainless type (VR15M) available on request.
10 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| VR15-300x8Z | THK Cross Roller Guide VR15, Rail 300mm, 8 rollers, max stroke 190mm | THK | Rail Length: 300 mm | Rollers (Z): 8 | Max Stroke: 190 mm | Roller Diameter: 15.081 mm (cross roller) | Basic Dynamic Load Rating C_Z: 27.9 kN (per roller) | Basic Static Load Rating C0Z: 26.8 kN (per roller) | Rail Mass: 8.3 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR15M (order basis) | ||
| VR15-400x11Z | THK Cross Roller Guide VR15, Rail 400mm, 11 rollers, max stroke 240mm | THK | Rail Length: 400 mm | Rollers (Z): 11 | Max Stroke: 240 mm | Roller Diameter: 15.081 mm (cross roller) | Basic Dynamic Load Rating C_Z: 27.9 kN (per roller) | Basic Static Load Rating C0Z: 26.8 kN (per roller) | Rail Mass: 8.3 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR15M (order basis) | ||
| VR15-500x13Z | THK Cross Roller Guide VR15, Rail 500mm, 13 rollers, max stroke 340mm | THK | Rail Length: 500 mm | Rollers (Z): 13 | Max Stroke: 340 mm | Roller Diameter: 15.081 mm (cross roller) | Basic Dynamic Load Rating C_Z: 27.9 kN (per roller) | Basic Static Load Rating C0Z: 26.8 kN (per roller) | Rail Mass: 8.3 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR15M (order basis) | ||
| VR15-600x16Z | THK Cross Roller Guide VR15, Rail 600mm, 16 rollers, max stroke 390mm | THK | Rail Length: 600 mm | Rollers (Z): 16 | Max Stroke: 390 mm | Roller Diameter: 15.081 mm (cross roller) | Basic Dynamic Load Rating C_Z: 27.9 kN (per roller) | Basic Static Load Rating C0Z: 26.8 kN (per roller) | Rail Mass: 8.3 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR15M (order basis) | ||
| VR15-700x19Z | THK Cross Roller Guide VR15, Rail 700mm, 19 rollers, max stroke 440mm | THK | Rail Length: 700 mm | Rollers (Z): 19 | Max Stroke: 440 mm | Roller Diameter: 15.081 mm (cross roller) | Basic Dynamic Load Rating C_Z: 27.9 kN (per roller) | Basic Static Load Rating C0Z: 26.8 kN (per roller) | Rail Mass: 8.3 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR15M (order basis) | ||
| VR15-800x22Z | THK Cross Roller Guide VR15, Rail 800mm, 22 rollers, max stroke 490mm | THK | Rail Length: 800 mm | Rollers (Z): 22 | Max Stroke: 490 mm | Roller Diameter: 15.081 mm (cross roller) | Basic Dynamic Load Rating C_Z: 27.9 kN (per roller) | Basic Static Load Rating C0Z: 26.8 kN (per roller) | Rail Mass: 8.3 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR15M (order basis) | ||
| VR15-900x25Z | THK Cross Roller Guide VR15, Rail 900mm, 25 rollers, max stroke 540mm | THK | Rail Length: 900 mm | Rollers (Z): 25 | Max Stroke: 540 mm | Roller Diameter: 15.081 mm (cross roller) | Basic Dynamic Load Rating C_Z: 27.9 kN (per roller) | Basic Static Load Rating C0Z: 26.8 kN (per roller) | Rail Mass: 8.3 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR15M (order basis) | ||
| VR15-1000x27Z | THK Cross Roller Guide VR15, Rail 1000mm, 27 rollers, max stroke 640mm | THK | Rail Length: 1000 mm | Rollers (Z): 27 | Max Stroke: 640 mm | Roller Diameter: 15.081 mm (cross roller) | Basic Dynamic Load Rating C_Z: 27.9 kN (per roller) | Basic Static Load Rating C0Z: 26.8 kN (per roller) | Rail Mass: 8.3 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR15M (order basis) | ||
| VR15-1100x30Z | THK Cross Roller Guide VR15, Rail 1100mm, 30 rollers, max stroke 690mm | THK | Rail Length: 1100 mm | Rollers (Z): 30 | Max Stroke: 690 mm | Roller Diameter: 15.081 mm (cross roller) | Basic Dynamic Load Rating C_Z: 27.9 kN (per roller) | Basic Static Load Rating C0Z: 26.8 kN (per roller) | Rail Mass: 8.3 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR15M (order basis) | ||
| VR15-1200x33Z | THK Cross Roller Guide VR15, Rail 1200mm, 33 rollers, max stroke 740mm | THK | Rail Length: 1200 mm | Rollers (Z): 33 | Max Stroke: 740 mm | Roller Diameter: 15.081 mm (cross roller) | Basic Dynamic Load Rating C_Z: 27.9 kN (per roller) | Basic Static Load Rating C0Z: 26.8 kN (per roller) | Rail Mass: 8.3 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR15M (order basis) |
