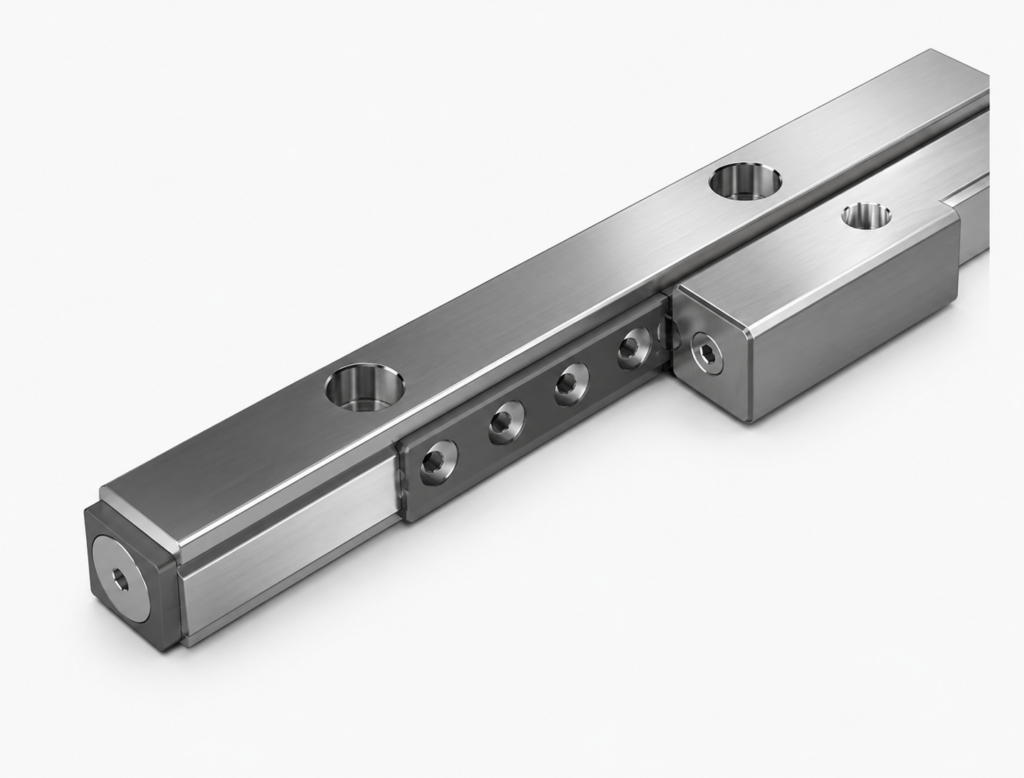

[THK] — VR1 Cross Roller Guide (VR1-20×5Z~VR1-80×21Z)
Family ID: THK-VR1
VR1 type Cross Roller Guide — compact high-rigidity LM system. Precision rollers arranged in orthogonal crossed pattern; cage moves 1/2 of stroke along V-groove rail. 1 set = 4 rails + 2 cages. Stainless steel type (VR1M) available on request. Rail lengths: 20~80mm. Max stroke: 12~52mm.
7 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| VR1-20x5Z | THK cross roller guide, rail L0=20mm, max stroke 12mm, Z=5 | THK | Rail Length: L0=20mm | Max Stroke: 12mm | Roller Count: Z=5 per cage | Mounting Bolts: n×F=1×10mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=3mm, crossed 90° | Stainless Option: VR1M available on request | Rail Fixing Screw: M1.4×0.3 precision screw (0-type) | ||
| VR1-30x7Z | THK cross roller guide, rail L0=30mm, max stroke 22mm, Z=7 | THK | Rail Length: L0=30mm | Max Stroke: 22mm | Roller Count: Z=7 per cage | Mounting Bolts: n×F=2×10mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=3mm, crossed 90° | Stainless Option: VR1M available on request | Rail Fixing Screw: M1.4×0.3 precision screw (0-type) | ||
| VR1-40x10Z | THK cross roller guide, rail L0=40mm, max stroke 27mm, Z=10 | THK | Rail Length: L0=40mm | Max Stroke: 27mm | Roller Count: Z=10 per cage | Mounting Bolts: n×F=3×10mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=3mm, crossed 90° | Stainless Option: VR1M available on request | Rail Fixing Screw: M1.4×0.3 precision screw (0-type) | ||
| VR1-50x13Z | THK cross roller guide, rail L0=50mm, max stroke 32mm, Z=13 | THK | Rail Length: L0=50mm | Max Stroke: 32mm | Roller Count: Z=13 per cage | Mounting Bolts: n×F=4×10mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=3mm, crossed 90° | Stainless Option: VR1M available on request | Rail Fixing Screw: M1.4×0.3 precision screw (0-type) | ||
| VR1-60x16Z | THK cross roller guide, rail L0=60mm, max stroke 37mm, Z=16 | THK | Rail Length: L0=60mm | Max Stroke: 37mm | Roller Count: Z=16 per cage | Mounting Bolts: n×F=5×10mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=3mm, crossed 90° | Stainless Option: VR1M available on request | Rail Fixing Screw: M1.4×0.3 precision screw (0-type) | ||
| VR1-70x19Z | THK cross roller guide, rail L0=70mm, max stroke 42mm, Z=19 | THK | Rail Length: L0=70mm | Max Stroke: 42mm | Roller Count: Z=19 per cage | Mounting Bolts: n×F=6×10mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=3mm, crossed 90° | Stainless Option: VR1M available on request | Rail Fixing Screw: M1.4×0.3 precision screw (0-type) | ||
| VR1-80x21Z | THK cross roller guide, rail L0=80mm, max stroke 52mm, Z=21 | THK | Rail Length: L0=80mm | Max Stroke: 52mm | Roller Count: Z=21 per cage | Mounting Bolts: n×F=7×10mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=3mm, crossed 90° | Stainless Option: VR1M available on request | Rail Fixing Screw: M1.4×0.3 precision screw (0-type) |
