Roller Guides
THK

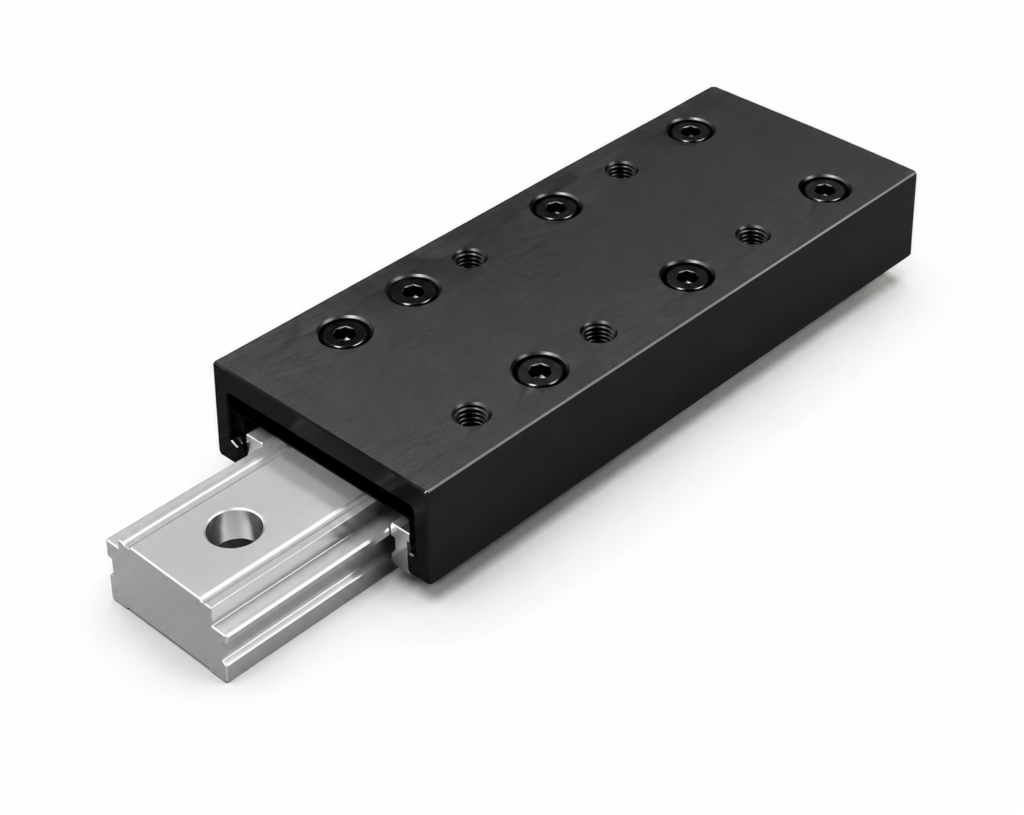

[THK] — Cross Roller Table VRT2-A (W30×H12, base hole type)
Family ID: THK-VRT2-A
THK VRT-A Miniature Cross Roller Table, VRT2-A frame. Base mounting through-hole type (d×D×h = 3.5×6×3.2mm). Table width W=30mm, height M=12mm. Stroke range 18~80mm. Same load ratings as VRT tab type; base through-hole mounting for improved rigidity. Full stainless steel type available on request.
7 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| VRT2035A | THK Cross Roller Table VRT2035A, stroke 18mm, 5 rollers, 78g | THK | Frame: VRT2-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 3.5×6×3.2 mm | Table Width (W): 30 mm | Height (M): 12 mm | Stroke: 18 mm | Rollers (Z): 5 | Mass: 78 g | Basic Dynamic Load Rating C: 0.84 kN | Basic Static Load Rating C0: 1.09 kN | Static Allowable Moment MA: 4.32 N·m | Static Allowable Moment MB: 3.55 N·m | Static Allowable Moment MC: 7.06 N·m | Full Stainless Type: available on request | ||
| VRT2050A | THK Cross Roller Table VRT2050A, stroke 30mm, 7 rollers, 113g | THK | Frame: VRT2-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 3.5×6×3.2 mm | Table Width (W): 30 mm | Height (M): 12 mm | Stroke: 30 mm | Rollers (Z): 7 | Mass: 113 g | Basic Dynamic Load Rating C: 1.16 kN | Basic Static Load Rating C0: 1.63 kN | Static Allowable Moment MA: 7.45 N·m | Static Allowable Moment MB: 6.59 N·m | Static Allowable Moment MC: 10.6 N·m | Full Stainless Type: available on request | ||
| VRT2065A | THK Cross Roller Table VRT2065A, stroke 40mm, 9 rollers, 147g | THK | Frame: VRT2-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 3.5×6×3.2 mm | Table Width (W): 30 mm | Height (M): 12 mm | Stroke: 40 mm | Rollers (Z): 9 | Mass: 147 g | Basic Dynamic Load Rating C: 1.46 kN | Basic Static Load Rating C0: 2.17 kN | Static Allowable Moment MA: 11.8 N·m | Static Allowable Moment MB: 10.5 N·m | Static Allowable Moment MC: 14.1 N·m | Full Stainless Type: available on request | ||
| VRT2080A | THK Cross Roller Table VRT2080A, stroke 50mm, 12 rollers, 181g | THK | Frame: VRT2-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 3.5×6×3.2 mm | Table Width (W): 30 mm | Height (M): 12 mm | Stroke: 50 mm | Rollers (Z): 12 | Mass: 181 g | Basic Dynamic Load Rating C: 2.01 kN | Basic Static Load Rating C0: 3.26 kN | Static Allowable Moment MA: 16.8 N·m | Static Allowable Moment MB: 18.2 N·m | Static Allowable Moment MC: 21.2 N·m | Full Stainless Type: available on request | ||
| VRT2095A | THK Cross Roller Table VRT2095A, stroke 60mm, 14 rollers, 217g | THK | Frame: VRT2-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 3.5×6×3.2 mm | Table Width (W): 30 mm | Height (M): 12 mm | Stroke: 60 mm | Rollers (Z): 14 | Mass: 217 g | Basic Dynamic Load Rating C: 2.26 kN | Basic Static Load Rating C0: 3.8 kN | Static Allowable Moment MA: 23.0 N·m | Static Allowable Moment MB: 24.5 N·m | Static Allowable Moment MC: 24.7 N·m | Full Stainless Type: available on request | ||
| VRT2110A | THK Cross Roller Table VRT2110A, stroke 70mm, 17 rollers, 254g | THK | Frame: VRT2-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 3.5×6×3.2 mm | Table Width (W): 30 mm | Height (M): 12 mm | Stroke: 70 mm | Rollers (Z): 17 | Mass: 254 g | Basic Dynamic Load Rating C: 2.51 kN | Basic Static Load Rating C0: 4.34 kN | Static Allowable Moment MA: 37.9 N·m | Static Allowable Moment MB: 35.7 N·m | Static Allowable Moment MC: 28.2 N·m | Full Stainless Type: available on request | ||
| VRT2125A | THK Cross Roller Table VRT2125A, stroke 80mm, 19 rollers, 287g | THK | Frame: VRT2-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 3.5×6×3.2 mm | Table Width (W): 30 mm | Height (M): 12 mm | Stroke: 80 mm | Rollers (Z): 19 | Mass: 287 g | Basic Dynamic Load Rating C: 2.76 kN | Basic Static Load Rating C0: 4.89 kN | Static Allowable Moment MA: 46.7 N·m | Static Allowable Moment MB: 44.3 N·m | Static Allowable Moment MC: 31.8 N·m | Full Stainless Type: available on request |
