Roller Guides
THK

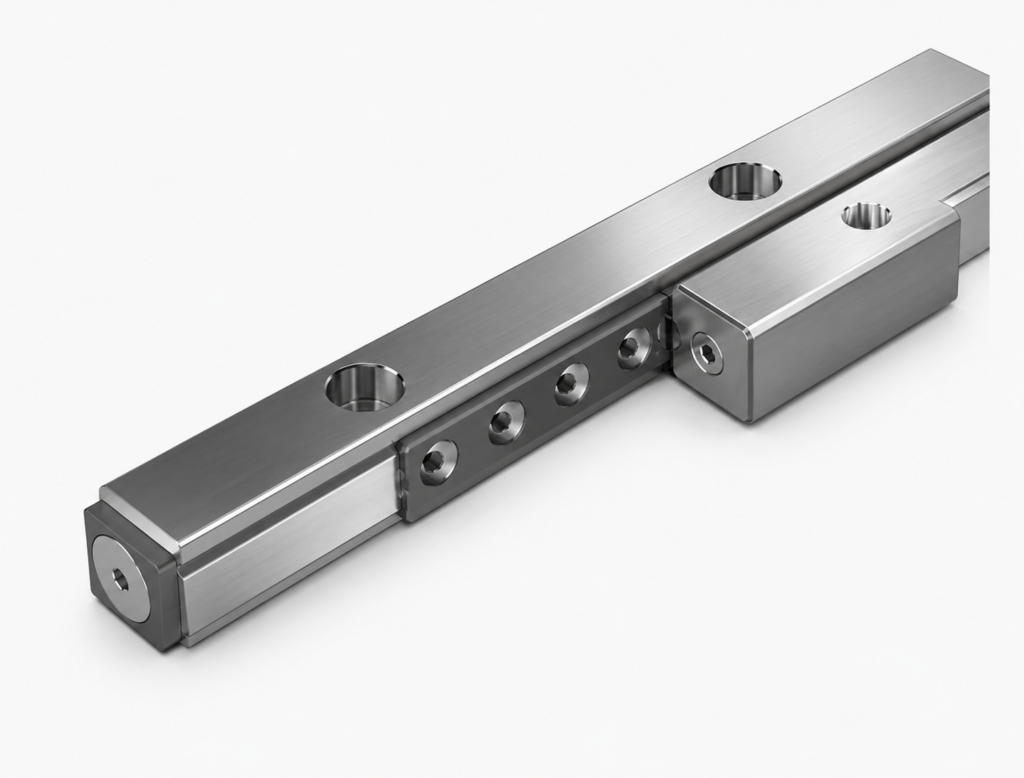

[THK] — VR6 Cross Roller Guide (VR6-100×7Z~VR6-600×41Z)
Family ID: THK-VR6
VR6 type Cross Roller Guide — compact high-rigidity LM system, heavy-duty size. Precision rollers arranged in orthogonal crossed pattern; cage moves 1/2 of stroke along V-groove rail. 1 set = 4 rails + 2 cages. Larger than VR4. Stainless steel type (VR6M) available on request. Rail lengths: 100~600mm. Max stroke: 56~376mm.
11 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| VR6-100x7Z | THK cross roller guide VR6, rail L0=100mm, max stroke 56mm, Z=7 | THK | Rail Length: L0=100mm | Max Stroke: 56mm | Roller Count: Z=7 per cage | Mounting Bolts: n×F=1×50mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=9.5mm, crossed 90° | Stainless Option: VR6M available on request | ||
| VR6-150x10Z | THK cross roller guide VR6, rail L0=150mm, max stroke 96mm, Z=10 | THK | Rail Length: L0=150mm | Max Stroke: 96mm | Roller Count: Z=10 per cage | Mounting Bolts: n×F=2×50mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=9.5mm, crossed 90° | Stainless Option: VR6M available on request | ||
| VR6-200x13Z | THK cross roller guide VR6, rail L0=200mm, max stroke 136mm, Z=13 | THK | Rail Length: L0=200mm | Max Stroke: 136mm | Roller Count: Z=13 per cage | Mounting Bolts: n×F=3×50mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=9.5mm, crossed 90° | Stainless Option: VR6M available on request | ||
| VR6-250x17Z | THK cross roller guide VR6, rail L0=250mm, max stroke 156mm, Z=17 | THK | Rail Length: L0=250mm | Max Stroke: 156mm | Roller Count: Z=17 per cage | Mounting Bolts: n×F=4×50mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=9.5mm, crossed 90° | Stainless Option: VR6M available on request | ||
| VR6-300x20Z | THK cross roller guide VR6, rail L0=300mm, max stroke 196mm, Z=20 | THK | Rail Length: L0=300mm | Max Stroke: 196mm | Roller Count: Z=20 per cage | Mounting Bolts: n×F=5×50mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=9.5mm, crossed 90° | Stainless Option: VR6M available on request | ||
| VR6-350x24Z | THK cross roller guide VR6, rail L0=350mm, max stroke 216mm, Z=24 | THK | Rail Length: L0=350mm | Max Stroke: 216mm | Roller Count: Z=24 per cage | Mounting Bolts: n×F=6×50mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=9.5mm, crossed 90° | Stainless Option: VR6M available on request | ||
| VR6-400x27Z | THK cross roller guide VR6, rail L0=400mm, max stroke 256mm, Z=27 | THK | Rail Length: L0=400mm | Max Stroke: 256mm | Roller Count: Z=27 per cage | Mounting Bolts: n×F=7×50mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=9.5mm, crossed 90° | Stainless Option: VR6M available on request | ||
| VR6-450x31Z | THK cross roller guide VR6, rail L0=450mm, max stroke 276mm, Z=31 | THK | Rail Length: L0=450mm | Max Stroke: 276mm | Roller Count: Z=31 per cage | Mounting Bolts: n×F=8×50mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=9.5mm, crossed 90° | Stainless Option: VR6M available on request | ||
| VR6-500x34Z | THK cross roller guide VR6, rail L0=500mm, max stroke 316mm, Z=34 | THK | Rail Length: L0=500mm | Max Stroke: 316mm | Roller Count: Z=34 per cage | Mounting Bolts: n×F=9×50mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=9.5mm, crossed 90° | Stainless Option: VR6M available on request | ||
| VR6-550x38Z | THK cross roller guide VR6, rail L0=550mm, max stroke 336mm, Z=38 | THK | Rail Length: L0=550mm | Max Stroke: 336mm | Roller Count: Z=38 per cage | Mounting Bolts: n×F=10×50mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=9.5mm, crossed 90° | Stainless Option: VR6M available on request | ||
| VR6-600x41Z | THK cross roller guide VR6, rail L0=600mm, max stroke 376mm, Z=41 | THK | Rail Length: L0=600mm | Max Stroke: 376mm | Roller Count: Z=41 per cage | Mounting Bolts: n×F=11×50mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=9.5mm, crossed 90° | Stainless Option: VR6M available on request |
